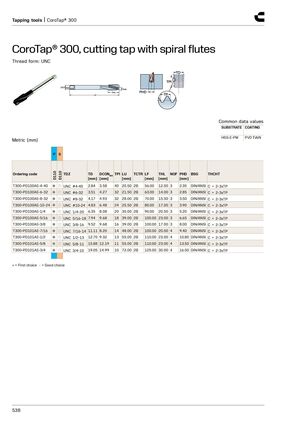

CoroTap® 300, метчик машинный со спиральными канавками
Форма резьбы: UNC
| Параметр | Значение |
|---|---|
| Материал основы | HSS-E-PM |
| Покрытие | PVD TiAlN |
| Код заказа | Выбор | Резьба (TDZ) | TD [мм] | DCONMS [мм] | TPI | LU [мм] | TCTR | LF [мм] | THL [мм] | NOF | PHD [мм] | BSG | THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T300-PD100AE-4-40 | ● ○ | UNC #4-40 | 2.84 | 3.58 | 40 | 20.50 | 2B | 56.00 | 12.00 | 3 | 2.35 | DIN/ANSI | C = 2-3xTP |
| T300-PD100AE-6-32 | ● ○ | UNC #6-32 | 3.51 | 4.27 | 32 | 21.50 | 2B | 63.00 | 14.00 | 3 | 2.85 | DIN/ANSI | C = 2-3xTP |
| T300-PD100AE-8-32 | ● ○ | UNC #8-32 | 4.17 | 4.93 | 32 | 28.00 | 2B | 70.00 | 15.50 | 3 | 3.50 | DIN/ANSI | C = 2-3xTP |
| T300-PD100AE-10-24 | ● ○ | UNC #10-24 | 4.83 | 6.48 | 24 | 25.50 | 2B | 80.00 | 17.00 | 3 | 3.90 | DIN/ANSI | C = 2-3xTP |
| T300-PD100AE-1/4 | ● ○ | UNC 1/4-20 | 6.35 | 8.08 | 20 | 35.00 | 2B | 90.00 | 20.50 | 3 | 5.20 | DIN/ANSI | C = 2-3xTP |
| T300-PD100AE-5/16 | ● ○ | UNC 5/16-18 | 7.94 | 9.68 | 18 | 39.00 | 2B | 100.00 | 23.00 | 3 | 6.65 | DIN/ANSI | C = 2-3xTP |
| T300-PD100AE-3/8 | ● ○ | UNC 3/8-16 | 9.52 | 9.68 | 16 | 39.00 | 2B | 100.00 | 17.00 | 3 | 8.00 | DIN/ANSI | C = 2-3xTP |
| T300-PD101AE-7/16 | ● ○ | UNC 7/16-14 | 11.11 | 8.20 | 14 | 48.00 | 2B | 100.00 | 20.00 | 4 | 9.40 | DIN/ANSI | C = 2-3xTP |
| T300-PD101AE-1/2 | ● ○ | UNC 1/2-13 | 12.70 | 9.32 | 13 | 55.00 | 2B | 110.00 | 23.00 | 4 | 10.80 | DIN/ANSI | C = 2-3xTP |
| T300-PD101AE-5/8 | ● ○ | UNC 5/8-11 | 15.88 | 12.19 | 11 | 55.00 | 2B | 110.00 | 23.00 | 4 | 13.50 | DIN/ANSI | C = 2-3xTP |
| T300-PD101AE-3/4 | ● ○ | UNC 3/4-10 | 19.05 | 14.99 | 10 | 72.00 | 2B | 125.00 | 30.00 | 4 | 16.50 | DIN/ANSI | C = 2-3xTP |
● = Первый выбор ○ = Хороший выбор
