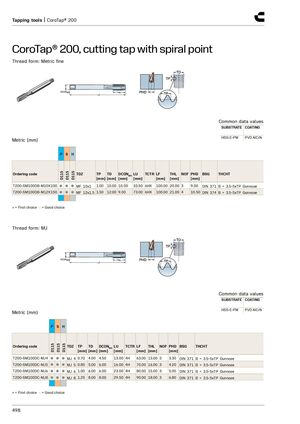

Инструменты для нарезания резьбы | CoroTap® 200
CoroTap® 200, метчик машинный со спиральной заборной частью
Форма резьбы: Metric fine (метрическая мелкая резьба)
Общие значения данных: SUBSTRATE — HSS-E-PM, COATING — PVD AlCrN
Метрическая система (мм)
| Код заказа | Форма резьбы | TDZ | TP [мм] | TD [мм] | DCONMS [мм] | LU [мм] | TCTR | LF [мм] | THL [мм] | NOF | PHD [мм] | BSG | THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T200-SM100DB-M10X100 | ● ● ● MF 10x1 | 1.00 | 10.00 | 10.00 | 33.50 | 6HX | 100.00 | 20.00 | 3 | 9.00 | DIN 371 | B = 3.5-5xTP Gunnose | |
| T200-SM100DB-M12X150 | ● ● ● MF 12x1.5 | 1.50 | 12.00 | 9.00 | 73.00 | 6HX | 100.00 | 21.00 | 4 | 10.50 | DIN 374 | B = 3.5-5xTP Gunnose |
● = Первый выбор ○ = Хороший выбор
Форма резьбы: MJ
Общие значения данных: SUBSTRATE — HSS-E-PM, COATING — PVD AlCrN
Метрическая система (мм)
| Код заказа | Форма резьбы | TDZ | TP [мм] | TD [мм] | DCONMS [мм] | LU [мм] | TCTR | LF [мм] | THL [мм] | NOF | PHD [мм] | BSG | THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T200-SM100DC-MJ4 | ● ● ● MJ 4 | 0.70 | 4.00 | 4.50 | 13.00 | 4H | 63.00 | 13.00 | 3 | 3.30 | DIN 371 | B = 3.5-5xTP Gunnose | |
| T200-SM100DC-MJ5 | ● ● ● MJ 5 | 0.80 | 5.00 | 6.00 | 16.00 | 4H | 70.00 | 16.00 | 3 | 4.20 | DIN 371 | B = 3.5-5xTP Gunnose | |
| T200-SM100DC-MJ6 | ● ● ● MJ 6 | 1.00 | 6.00 | 6.00 | 23.00 | 4H | 80.00 | 15.00 | 3 | 5.00 | DIN 371 | B = 3.5-5xTP Gunnose | |
| T200-SM100DC-MJ8 | ● ● ● MJ 8 | 1.25 | 8.00 | 8.00 | 29.50 | 4H | 90.00 | 18.00 | 3 | 6.80 | DIN 371 | B = 3.5-5xTP Gunnose |
● = Первый выбор ○ = Хороший выбор
