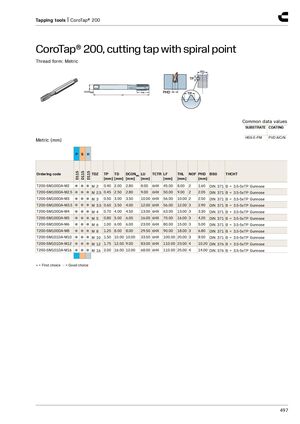

Инструменты для нарезания резьбы | CoroTap® 200
CoroTap® 200, метчик машинный со спиральной заборной частью
Форма резьбы: Metric (метрическая)
Общие значения данных: SUBSTRATE — HSS-E-PM, COATING — PVD AlCrN
Метрическая система (мм)
| Код заказа | Форма резьбы | TDZ | TP [мм] | TD [мм] | DCONMS [мм] | LU [мм] | TCTR | LF [мм] | THL [мм] | NOF | PHD [мм] | BSG | THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T200-SM100DA-M2 | ● ● ● M 2 | 0.40 | 2.00 | 2.80 | 8.00 | 6HX | 45.00 | 8.00 | 2 | 1.60 | DIN 371 | B = 3.5-5xTP Gunnose | |
| T200-SM100DA-M2.5 | ● ● ● M 2.5 | 0.45 | 2.50 | 2.80 | 9.00 | 6HX | 50.00 | 9.00 | 2 | 2.05 | DIN 371 | B = 3.5-5xTP Gunnose | |
| T200-SM100DA-M3 | ● ● ● M 3 | 0.50 | 3.00 | 3.50 | 10.00 | 6HX | 56.00 | 10.00 | 2 | 2.50 | DIN 371 | B = 3.5-5xTP Gunnose | |
| T200-SM100DA-M3.5 | ● ● ● M 3.5 | 0.60 | 3.50 | 4.00 | 12.00 | 6HX | 56.00 | 12.00 | 3 | 2.90 | DIN 371 | B = 3.5-5xTP Gunnose | |
| T200-SM100DA-M4 | ● ● ● M 4 | 0.70 | 4.00 | 4.50 | 13.00 | 6HX | 63.00 | 13.00 | 3 | 3.30 | DIN 371 | B = 3.5-5xTP Gunnose | |
| T200-SM100DA-M5 | ● ● ● M 5 | 0.80 | 5.00 | 6.00 | 16.00 | 6HX | 70.00 | 16.00 | 3 | 4.20 | DIN 371 | B = 3.5-5xTP Gunnose | |
| T200-SM100DA-M6 | ● ● ● M 6 | 1.00 | 6.00 | 6.00 | 23.00 | 6HX | 80.00 | 15.00 | 3 | 5.00 | DIN 371 | B = 3.5-5xTP Gunnose | |
| T200-SM100DA-M8 | ● ● ● M 8 | 1.25 | 8.00 | 8.00 | 29.50 | 6HX | 90.00 | 18.00 | 3 | 6.80 | DIN 371 | B = 3.5-5xTP Gunnose | |
| T200-SM101DA-M10 | ● ● ● M 10 | 1.50 | 10.00 | 10.00 | 33.50 | 6HX | 100.00 | 20.00 | 3 | 8.50 | DIN 371 | B = 3.5-5xTP Gunnose | |
| T200-SM101DA-M12 | ● ● ● M 12 | 1.75 | 12.00 | 9.00 | 83.00 | 6HX | 110.00 | 23.00 | 4 | 10.20 | DIN 376 | B = 3.5-5xTP Gunnose | |
| T200-SM101DA-M16 | ● ● ● M 16 | 2.00 | 16.00 | 12.00 | 68.00 | 6HX | 110.00 | 25.00 | 4 | 14.00 | DIN 376 | B = 3.5-5xTP Gunnose |
● = Первый выбор ○ = Хороший выбор
