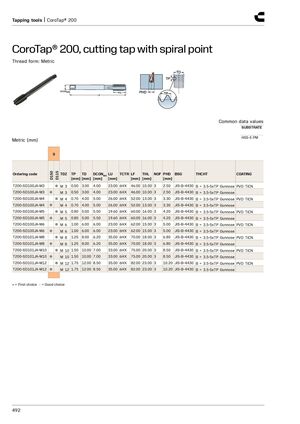

Инструменты для нарезания резьбы | CoroTap® 200
CoroTap® 200, машинный метчик со спиральной канавкой
Профиль резьбы: Метрическая
Общие параметры: ОСНОВА — HSS-E-PM
Метрическая (мм): S, D150, D115
| Код заказа | Выбор | Резьба | TP [мм] | TD [мм] | DCONMS [мм] | LU [мм] | TCTR | LF [мм] | THL [мм] | NOF | PHD [мм] | BSG | THCHT | Покрытие |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T200-SD100JA-M3 | ● | M 3 | 0.50 | 3.00 | 4.00 | 23.00 | 6HX | 46.00 | 10.00 | 3 | 2.50 | JIS-B-4430 | B = 3.5-5xTP Gunnose | PVD TiCN |
| T200-SD100JA-M3 | ● | M 3 | 0.50 | 3.00 | 4.00 | 23.00 | 6HX | 46.00 | 10.00 | 3 | 2.50 | JIS-B-4430 | B = 3.5-5xTP Gunnose | — |
| T200-SD100JA-M4 | ● | M 4 | 0.70 | 4.00 | 5.00 | 26.00 | 6HX | 52.00 | 13.00 | 3 | 3.30 | JIS-B-4430 | B = 3.5-5xTP Gunnose | PVD TiCN |
| T200-SD100JA-M4 | ● | M 4 | 0.70 | 4.00 | 5.00 | 26.00 | 6HX | 52.00 | 13.00 | 3 | 3.30 | JIS-B-4430 | B = 3.5-5xTP Gunnose | — |
| T200-SD100JA-M5 | ● | M 5 | 0.80 | 5.00 | 5.50 | 19.60 | 6HX | 60.00 | 16.00 | 3 | 4.20 | JIS-B-4430 | B = 3.5-5xTP Gunnose | PVD TiCN |
| T200-SD100JA-M5 | ● | M 5 | 0.80 | 5.00 | 5.50 | 19.60 | 6HX | 60.00 | 16.00 | 3 | 4.20 | JIS-B-4430 | B = 3.5-5xTP Gunnose | — |
| T200-SD100JA-M6 | ● | M 6 | 1.00 | 6.00 | 6.00 | 23.00 | 6HX | 62.00 | 15.00 | 3 | 5.00 | JIS-B-4430 | B = 3.5-5xTP Gunnose | PVD TiCN |
| T200-SD100JA-M6 | ● | M 6 | 1.00 | 6.00 | 6.00 | 23.00 | 6HX | 62.00 | 15.00 | 3 | 5.00 | JIS-B-4430 | B = 3.5-5xTP Gunnose | — |
| T200-SD101JA-M8 | ● | M 8 | 1.25 | 8.00 | 6.20 | 35.00 | 6HX | 70.00 | 18.00 | 3 | 6.80 | JIS-B-4430 | B = 3.5-5xTP Gunnose | PVD TiCN |
| T200-SD101JA-M8 | ● | M 8 | 1.25 | 8.00 | 6.20 | 35.00 | 6HX | 70.00 | 18.00 | 3 | 6.80 | JIS-B-4430 | B = 3.5-5xTP Gunnose | — |
| T200-SD101JA-M10 | ● | M 10 | 1.50 | 10.00 | 7.00 | 33.00 | 6HX | 75.00 | 20.00 | 3 | 8.50 | JIS-B-4430 | B = 3.5-5xTP Gunnose | PVD TiCN |
| T200-SD101JA-M10 | ● | M 10 | 1.50 | 10.00 | 7.00 | 33.00 | 6HX | 75.00 | 20.00 | 3 | 8.50 | JIS-B-4430 | B = 3.5-5xTP Gunnose | — |
| T200-SD101JA-M12 | ● | M 12 | 1.75 | 12.00 | 8.50 | 35.00 | 6HX | 82.00 | 23.00 | 3 | 10.20 | JIS-B-4430 | B = 3.5-5xTP Gunnose | PVD TiCN |
| T200-SD101JA-M12 | ● | M 12 | 1.75 | 12.00 | 8.50 | 35.00 | 6HX | 82.00 | 23.00 | 3 | 10.20 | JIS-B-4430 | B = 3.5-5xTP Gunnose | — |
● = Первый выбор ○ = Хороший выбор
