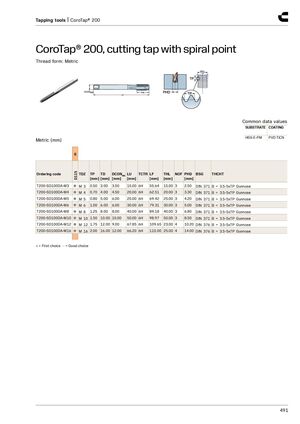

Инструменты для нарезания резьбы | CoroTap® 200
CoroTap® 200, машинный метчик со спиральной канавкой
Профиль резьбы: Метрическая
Общие параметры: ОСНОВА — HSS-E-PM, Покрытие — PVD TiCN
Метрическая (мм): S, D115
| Код заказа | Выбор | Резьба | TP [мм] | TD [мм] | DCONMS [мм] | LU [мм] | TCTR | LF [мм] | THL [мм] | NOF | PHD [мм] | BSG | THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T200-SD100DA-M3 | ● | M 3 | 0.50 | 3.00 | 3.50 | 15.00 | 6H | 55.64 | 15.00 | 3 | 2.50 | DIN 371 | B = 3.5-5xTP Gunnose |
| T200-SD100DA-M4 | ● | M 4 | 0.70 | 4.00 | 4.50 | 20.00 | 6H | 62.51 | 20.00 | 3 | 3.30 | DIN 371 | B = 3.5-5xTP Gunnose |
| T200-SD100DA-M5 | ● | M 5 | 0.80 | 5.00 | 6.00 | 25.00 | 6H | 69.42 | 25.00 | 3 | 4.20 | DIN 371 | B = 3.5-5xTP Gunnose |
| T200-SD100DA-M6 | ● | M 6 | 1.00 | 6.00 | 6.00 | 30.00 | 6H | 79.31 | 30.00 | 3 | 5.00 | DIN 371 | B = 3.5-5xTP Gunnose |
| T200-SD100DA-M8 | ● | M 8 | 1.25 | 8.00 | 8.00 | 40.00 | 6H | 89.18 | 40.00 | 3 | 6.80 | DIN 371 | B = 3.5-5xTP Gunnose |
| T200-SD100DA-M10 | ● | M 10 | 1.50 | 10.00 | 10.00 | 50.00 | 6H | 98.97 | 50.00 | 3 | 8.50 | DIN 371 | B = 3.5-5xTP Gunnose |
| T200-SD100DA-M12 | ● | M 12 | 1.75 | 12.00 | 9.00 | 67.85 | 6H | 109.65 | 23.00 | 4 | 10.20 | DIN 376 | B = 3.5-5xTP Gunnose |
| T200-SD100DA-M16 | ● | M 16 | 2.00 | 16.00 | 12.00 | 66.20 | 6H | 110.00 | 25.00 | 4 | 14.00 | DIN 376 | B = 3.5-5xTP Gunnose |
● = Первый выбор ○ = Хороший выбор
