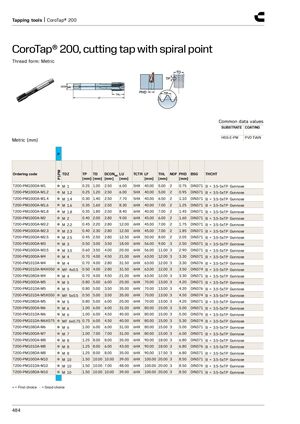

Инструменты для нарезания резьбы | CoroTap® 200
CoroTap® 200, машинный метчик со спиральной канавкой
Профиль резьбы: Метрическая
Общие параметры: ОСНОВА — HSS-E-PM, Покрытие — PVD TiAlN
Метрическая (мм): P, P1PM
| Код заказа | Выбор | Резьба | TP [мм] | TD [мм] | DCONMS [мм] | LU [мм] | TCTR | LF [мм] | THL [мм] | NOF | PHD [мм] | BSG | THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T200-PM100DA-M1 | ● | M 1 | 0.25 | 1.00 | 2.50 | 6.00 | 5HX | 40.00 | 5.00 | 2 | 0.75 | DIN371 | B = 3.5-5xTP Gunnose |
| T200-PM100DA-M1.2 | ● | M 1.2 | 0.25 | 1.20 | 2.50 | 6.00 | 5HX | 40.00 | 5.00 | 2 | 0.95 | DIN371 | B = 3.5-5xTP Gunnose |
| T200-PM100DA-M1.4 | ● | M 1.4 | 0.30 | 1.40 | 2.50 | 7.70 | 5HX | 40.00 | 6.50 | 2 | 1.10 | DIN371 | B = 3.5-5xTP Gunnose |
| T200-PM100DA-M1.6 | ● | M 1.6 | 0.35 | 1.60 | 2.50 | 8.30 | 6HX | 40.00 | 7.00 | 2 | 1.25 | DIN371 | B = 3.5-5xTP Gunnose |
| T200-PM100DA-M1.8 | ● | M 1.8 | 0.35 | 1.80 | 2.50 | 8.40 | 6HX | 40.00 | 7.00 | 2 | 1.45 | DIN371 | B = 3.5-5xTP Gunnose |
| T200-PM100DA-M2 | ● | M 2 | 0.40 | 2.00 | 2.80 | 9.00 | 6HX | 45.00 | 6.00 | 2 | 1.60 | DIN371 | B = 3.5-5xTP Gunnose |
| T200-PM100DA-M2.2 | ● | M 2.2 | 0.45 | 2.20 | 2.80 | 12.00 | 6HX | 45.00 | 7.00 | 2 | 1.75 | DIN371 | B = 3.5-5xTP Gunnose |
| T200-PM100DA-M2.3 | ● | M 2.3 | 0.40 | 2.30 | 2.80 | 12.00 | 6HX | 45.00 | 7.00 | 2 | 1.85 | DIN371 | B = 3.5-5xTP Gunnose |
| T200-PM100DA-M2.5 | ● | M 2.5 | 0.45 | 2.50 | 2.80 | 12.50 | 6HX | 50.00 | 8.00 | 2 | 2.05 | DIN371 | B = 3.5-5xTP Gunnose |
| T200-PM100DA-M3 | ● | M 3 | 0.50 | 3.00 | 3.50 | 18.00 | 6HX | 56.00 | 9.00 | 3 | 2.50 | DIN371 | B = 3.5-5xTP Gunnose |
| T200-PM100DA-M3.5 | ● | M 3.5 | 0.60 | 3.50 | 4.00 | 20.00 | 6HX | 56.00 | 11.00 | 3 | 2.90 | DIN371 | B = 3.5-5xTP Gunnose |
| T200-PM100DA-M4 | ● | M 4 | 0.70 | 4.00 | 4.50 | 21.00 | 6HX | 63.00 | 12.00 | 3 | 3.30 | DIN371 | B = 3.5-5xTP Gunnose |
| T200-PM101DA-M4 | ● | M 4 | 0.70 | 4.00 | 2.80 | 31.50 | 6HX | 63.00 | 12.00 | 3 | 3.30 | DIN376 | B = 3.5-5xTP Gunnose |
| T200-PM101DA-M4X050 | ● | MF 4x0.5 | 0.50 | 4.00 | 2.80 | 31.50 | 6HX | 63.00 | 12.00 | 3 | 3.50 | DIN374 | B = 3.5-5xTP Gunnose |
| T200-PM108DA-M4 | ● | M 4 | 0.70 | 4.00 | 4.50 | 21.00 | 6HX | 63.00 | 12.00 | 3 | 3.30 | DIN371 | B = 3.5-5xTP Gunnose |
| T200-PM100DA-M5 | ● | M 5 | 0.80 | 5.00 | 6.00 | 25.00 | 6HX | 70.00 | 13.00 | 3 | 4.20 | DIN371 | B = 3.5-5xTP Gunnose |
| T200-PM101DA-M5 | ● | M 5 | 0.80 | 5.00 | 3.50 | 35.00 | 6HX | 70.00 | 13.00 | 3 | 4.20 | DIN376 | B = 3.5-5xTP Gunnose |
| T200-PM101DA-M5X050 | ● | MF 5x0.5 | 0.50 | 5.00 | 3.50 | 35.00 | 6HX | 70.00 | 13.00 | 3 | 4.50 | DIN374 | B = 3.5-5xTP Gunnose |
| T200-PM108DA-M5 | ● | M 5 | 0.80 | 5.00 | 6.00 | 25.00 | 6HX | 70.00 | 13.00 | 3 | 4.20 | DIN371 | B = 3.5-5xTP Gunnose |
| T200-PM100DA-M6 | ● | M 6 | 1.00 | 6.00 | 6.00 | 31.00 | 6HX | 80.00 | 15.00 | 3 | 5.00 | DIN371 | B = 3.5-5xTP Gunnose |
| T200-PM101DA-M6 | ● | M 6 | 1.00 | 6.00 | 4.50 | 40.00 | 6HX | 80.00 | 15.00 | 3 | 5.00 | DIN376 | B = 3.5-5xTP Gunnose |
| T200-PM101DA-M6X075 | ● | MF 6x0.75 | 0.75 | 6.00 | 4.50 | 40.00 | 6HX | 80.00 | 15.00 | 3 | 5.30 | DIN374 | B = 3.5-5xTP Gunnose |
| T200-PM108DA-M6 | ● | M 6 | 1.00 | 6.00 | 6.00 | 31.00 | 6HX | 80.00 | 15.00 | 3 | 5.00 | DIN371 | B = 3.5-5xTP Gunnose |
| T200-PM100DA-M7 | ● | M 7 | 1.00 | 7.00 | 7.00 | 31.00 | 6HX | 80.00 | 15.00 | 3 | 6.00 | DIN371 | B = 3.5-5xTP Gunnose |
| T200-PM100DA-M8 | ● | M 8 | 1.25 | 8.00 | 8.00 | 35.00 | 6HX | 90.00 | 18.00 | 3 | 6.80 | DIN371 | B = 3.5-5xTP Gunnose |
| T200-PM101DA-M8 | ● | M 8 | 1.25 | 8.00 | 6.00 | 43.00 | 6HX | 90.00 | 18.00 | 3 | 6.80 | DIN376 | B = 3.5-5xTP Gunnose |
| T200-PM108DA-M8 | ● | M 8 | 1.25 | 8.00 | 8.00 | 35.00 | 6HX | 90.00 | 17.50 | 3 | 6.80 | DIN371 | B = 3.5-5xTP Gunnose |
| T200-PM100DA-M10 | ● | M 10 | 1.50 | 10.00 | 10.00 | 39.00 | 6HX | 100.00 | 20.00 | 3 | 8.50 | DIN371 | B = 3.5-5xTP Gunnose |
| T200-PM101DA-M10 | ● | M 10 | 1.50 | 10.00 | 7.00 | 48.00 | 6HX | 100.00 | 20.00 | 3 | 8.50 | DIN376 | B = 3.5-5xTP Gunnose |
| T200-PM108DA-M10 | ● | M 10 | 1.50 | 10.00 | 10.00 | 39.00 | 6HX | 100.00 | 20.00 | 3 | 8.50 | DIN371 | B = 3.5-5xTP Gunnose |
● = Первый выбор ○ = Хороший выбор
