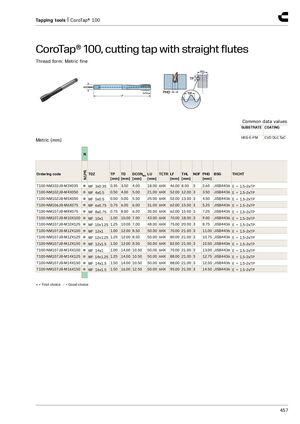

Инструменты для нарезания резьбы | CoroTap® 100
CoroTap® 100, метчик с прямыми канавками
Форма резьбы: метрическая мелкая
Общие значения данных
SUBSTRATE COATING
HSS-E-PM CVD DLC TaC
| Код заказа | Метрика | TP [мм] | TD [мм] | DCONMS [мм] | LU | TCTR | LF [мм] | THL [мм] | NOF | PHD [мм] | BSG | THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T100-NM102JB-M3X035 ● | MF 3x0.35 | 0.35 | 3.00 | 4.00 | 18.00 | 6HX | 46.00 | 8.00 | 3 | 2.65 | JISB4436 | E = 1.5-2xTP |
| T100-NM102JB-M4X050 ● | MF 4x0.5 | 0.50 | 4.00 | 5.00 | 21.00 | 6HX | 52.00 | 12.00 | 3 | 3.50 | JISB4436 | E = 1.5-2xTP |
| T100-NM102JB-M5X050 ● | MF 5x0.5 | 0.50 | 5.00 | 5.50 | 25.00 | 6HX | 52.00 | 13.00 | 3 | 4.50 | JISB4436 | E = 1.5-2xTP |
| T100-NM106JB-M6X075 ● | MF 6x0.75 | 0.75 | 6.00 | 6.00 | 31.00 | 6HX | 62.00 | 15.00 | 3 | 5.25 | JISB4436 | E = 1.5-2xTP |
| T100-NM107JB-M8X075 ● | MF 8x0.75 | 0.75 | 8.00 | 6.20 | 35.00 | 6HX | 62.00 | 15.00 | 3 | 7.25 | JISB4436 | E = 1.5-2xTP |
| T100-NM107JB-M10X100 ● | MF 10x1 | 1.00 | 10.00 | 7.00 | 43.00 | 6HX | 70.00 | 18.00 | 3 | 9.00 | JISB4436 | E = 1.5-2xTP |
| T100-NM107JB-M10X125 ● | MF 10x1.25 | 1.25 | 10.00 | 7.00 | 48.00 | 6HX | 75.00 | 20.00 | 3 | 8.75 | JISB4436 | E = 1.5-2xTP |
| T100-NM107JB-M12X100 ● | MF 12x1 | 1.00 | 12.00 | 8.50 | 50.00 | 6HX | 70.00 | 21.00 | 3 | 11.00 | JISB4436 | E = 1.5-2xTP |
| T100-NM107JB-M12X125 ● | MF 12x1.25 | 1.25 | 12.00 | 8.50 | 50.00 | 6HX | 80.00 | 21.00 | 3 | 10.75 | JISB4436 | E = 1.5-2xTP |
| T100-NM107JB-M12X150 ● | MF 12x1.5 | 1.50 | 12.00 | 8.50 | 50.00 | 6HX | 82.00 | 21.00 | 3 | 10.50 | JISB4436 | E = 1.5-2xTP |
| T100-NM107JB-M14X100 ● | MF 14x1 | 1.00 | 14.00 | 10.50 | 50.00 | 6HX | 70.00 | 21.00 | 3 | 13.00 | JISB4436 | E = 1.5-2xTP |
| T100-NM107JB-M14X125 ● | MF 14x1.25 | 1.25 | 14.00 | 10.50 | 50.00 | 6HX | 88.00 | 21.00 | 3 | 12.75 | JISB4436 | E = 1.5-2xTP |
| T100-NM107JB-M14X150 ● | MF 14x1.5 | 1.50 | 14.00 | 10.50 | 50.00 | 6HX | 88.00 | 21.00 | 3 | 12.50 | JISB4436 | E = 1.5-2xTP |
| T100-NM107JB-M16X150 ● | MF 16x1.5 | 1.50 | 16.00 | 12.50 | 50.00 | 6HX | 95.00 | 21.00 | 3 | 14.50 | JISB4436 | E = 1.5-2xTP |
● = Первый выбор ○ = Хороший выбор
