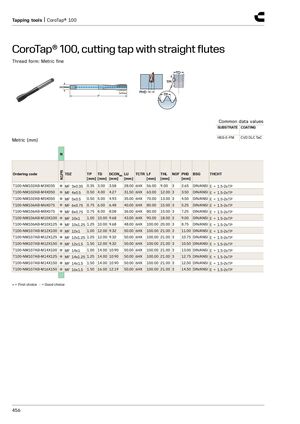

Каталог цельного осевого инструмента Sandvik 2026 - страница 460
Навигация
Дополнение к каталогам Sandvik 2020.2
Каталог Sandvik новые режущие инструменты 2020.1
Дополнение к каталогам Sandvik 2021.1
Каталог Sandvik цельный режущий инструмент 2020
Каталог Sandvik точение материалов высокой твердости- Selection guide
- Milling tools
- CoroMill® Dura
- CoroMill® Dura, solid carbide end mill for general machining
- CoroMill® Dura, solid carbide ball nose end mill for profiling
- CoroMill® Dura, solid carbide end mill for chamfer milling
- CoroMill® Plura
- CoroMill® Plura, solid carbide end mill for heavy duty milling
- CoroMill® Plura, solid carbide end mill for high feed side milling
- CoroMill® Plura solid carbide end mill for high feed side milling
- CoroMill® Plura, solid carbide end mill for high feed side milling
- CoroMill® Plura, solid carbide end mill for edging applications
- CoroMill® Plura, solid carbide end mill for stable multi-operations milling
- CoroMill® Plura, solid carbide end mill for finishing
- CoroMill® Plura, solid carbide end mill for large chip removal
- CoroMill® Plura, solid carbide end mill for high feed face milling
- CoroMill® Plura, solid carbide end mill for plunging
- CoroMill® Plura, solid carbide end mill for roughing with chip breaker
- CoroMill® Plura, solid carbide end mill for hard part milling
- CoroMill® Plura, solid carbide end mill for turn milling
- CoroMill® Plura, solid carbide end mill for micro-milling
- CoroMill® Plura, solid ceramic face mill
- CoroMill® Plura, solid ceramic end mill for high speed roughing
- CoroMill® Plura ball nose, solid carbide end mill for profiling
- CoroMill® Plura lollipop, solid carbide end mill for profiling
- CoroMill® Plura conical ball nose, solid carbide end mill for profiling
- CoroMill® Plura barrel, solid carbide end mill for profiling
- CoroMill® Plura, solid carbide ball nose end mill for profiling
- CoroMill® Plura, solid carbide ball nose end mill for micro-milling
- CoroMill® 316
- CoroMill® 316, solid carbide head for heavy duty milling
- CoroMill® 316, solid carbide head for stable multi-operation milling
- CoroMill® 316, solid carbide head for high feed side milling
- CoroMill® 316, solid carbide head for finishing
- CoroMill® 316, solid carbide head for high feed face milling
- CoroMill® 316, solid carbide head for high chip load milling
- CoroMill® 316, solid carbide head for large chip removal
- CoroMill® 316, solid carbide head for roughing with chip breaker
- CoroMill® 316, solid carbide head for profiling
- CoroMill® 316, solid carbide head for chamfer milling
- CoroMill® 316, solid carbide head with quarter circle profile
- CoroMill® 316, brazed ceramic head for high speed roughing
- Drilling tools
- CoroDrill® Dura 462
- CoroDrill® Dura 462, solid carbide step and chamfer drill for multi-materials
- CoroDrill® Dura 462, solid carbide drill for multi-materials
- CoroDrill® Dura 462, solid carbide micro drill for multi-materials
- CoroDrill® 860
- CoroDrill® 860-MM, solid carbide drill for ISO-M
- CoroDrill® 860-SD, solid carbide drill for ISO-S
- CoroDrill® 860-GM, solid carbide step and chamfer drill
- CoroDrill® 860-GM, solid carbide drill
- CoroDrill® 860-PM, solid carbide step and chamfer drill
- CoroDrill® 860-PM, solid carbide drill
- CoroDrill® 860-SM, Solid carbide drill
- CoroDrill® 860-NM, solid carbide drill
- CoroDrill® 862
- CoroDrill® 862-GM, solid carbide micro drill
- CoroDrill® 862-GM, solid carbide micro drill for pilot holes
- Tapping tools
- CoroTap® 100
- CoroTap® 100, cutting tap with straight flutes
- CoroTap® 200
- CoroTap® 200, cutting tap with spiral point
- CoroTap® 300
- CoroTap® 300, cutting tap with spiral flutes
- CoroTap® 400
- CoroTap® 400, forming tap
- Reaming tools
- CoroReamer® 435
- CoroReamer™ 435 solid carbide reamer
- CoroReamer® 830
- CoroReamer™ 830 solid carbide head for reaming
- Cylindrical shank to CoroReamer™ 830 adaptor
- CoroReamer® 835
- CoroReamer™ 835 solid carbide reamer
- Thread milling tools
- CoroMill® Plura
- CoroMill® Plura, solid carbide end mill for thread milling
- CoroMill® 326
- CoroMill® 326, solid carbide end mill for chamfer milling
- CoroMill® 326, solid carbide end mill for thread milling
- General information
- Coolant supply information
- Cutting tool parameters according to ISO 13399
- Tool reconditioning
Инструменты для нарезания резьбы | CoroTap® 100
CoroTap® 100, метчик с прямыми канавками
Форма резьбы: метрическая мелкая
Общие значения данных
SUBSTRATE COATING
HSS-E-PM CVD DLC TaC
| Код заказа | Метрика | TP [мм] | TD [мм] | DCONMS [мм] | LU | TCTR | LF [мм] | THL [мм] | NOF | PHD [мм] | BSG | THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T100-NM102AB-M3X035 ● | MF 3x0.35 | 0.35 | 3.00 | 3.58 | 28.00 | 6HX | 56.00 | 9.00 | 3 | 2.65 | DIN/ANSI | E = 1.5-2xTP |
| T100-NM102AB-M4X050 ● | MF 4x0.5 | 0.50 | 4.00 | 4.27 | 31.50 | 6HX | 63.00 | 12.00 | 3 | 3.50 | DIN/ANSI | E = 1.5-2xTP |
| T100-NM102AB-M5X050 ● | MF 5x0.5 | 0.50 | 5.00 | 4.93 | 35.00 | 6HX | 70.00 | 13.00 | 3 | 4.50 | DIN/ANSI | E = 1.5-2xTP |
| T100-NM106AB-M6X075 ● | MF 6x0.75 | 0.75 | 6.00 | 6.48 | 40.00 | 6HX | 80.00 | 15.00 | 3 | 5.25 | DIN/ANSI | E = 1.5-2xTP |
| T100-NM106AB-M8X075 ● | MF 8x0.75 | 0.75 | 8.00 | 8.08 | 36.00 | 6HX | 80.00 | 15.00 | 3 | 7.25 | DIN/ANSI | E = 1.5-2xTP |
| T100-NM106AB-M10X100 ● | MF 10x1 | 1.00 | 10.00 | 9.68 | 43.00 | 6HX | 90.00 | 18.00 | 3 | 9.00 | DIN/ANSI | E = 1.5-2xTP |
| T100-NM106AB-M10X125 ● | MF 10x1.25 | 1.25 | 10.00 | 9.68 | 48.00 | 6HX | 100.00 | 20.00 | 3 | 8.75 | DIN/ANSI | E = 1.5-2xTP |
| T100-NM107AB-M12X100 ● | MF 12x1 | 1.00 | 12.00 | 9.32 | 50.00 | 6HX | 100.00 | 21.00 | 3 | 11.00 | DIN/ANSI | E = 1.5-2xTP |
| T100-NM107AB-M12X125 ● | MF 12x1.25 | 1.25 | 12.00 | 9.32 | 50.00 | 6HX | 100.00 | 21.00 | 3 | 10.75 | DIN/ANSI | E = 1.5-2xTP |
| T100-NM107AB-M12X150 ● | MF 12x1.5 | 1.50 | 12.00 | 9.32 | 50.00 | 6HX | 100.00 | 21.00 | 3 | 10.50 | DIN/ANSI | E = 1.5-2xTP |
| T100-NM107AB-M14X100 ● | MF 14x1 | 1.00 | 14.00 | 10.90 | 50.00 | 6HX | 100.00 | 21.00 | 3 | 13.00 | DIN/ANSI | E = 1.5-2xTP |
| T100-NM107AB-M14X125 ● | MF 14x1.25 | 1.25 | 14.00 | 10.90 | 50.00 | 6HX | 100.00 | 21.00 | 3 | 12.75 | DIN/ANSI | E = 1.5-2xTP |
| T100-NM107AB-M14X150 ● | MF 14x1.5 | 1.50 | 14.00 | 10.90 | 50.00 | 6HX | 100.00 | 21.00 | 3 | 12.50 | DIN/ANSI | E = 1.5-2xTP |
| T100-NM107AB-M16X150 ● | MF 16x1.5 | 1.50 | 16.00 | 12.19 | 50.00 | 6HX | 100.00 | 21.00 | 3 | 14.50 | DIN/ANSI | E = 1.5-2xTP |
● = Первый выбор ○ = Хороший выбор
