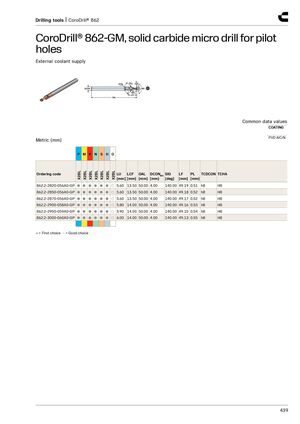

Сверлильный инструмент | CoroDrill® 862
CoroDrill® 862-GM, твердосплавное микросверло цельное для центровочных отверстий
Внешний подвод СОЖ.
Общие значения данных
ПОКРЫТИЕ: PVD AlCrN
Метрическая система (мм)
Применимость: P M K N S H O — X2BL
| Код заказа | P | M | K | N | S | H | O | LU [mm] | LCF [mm] | OAL [mm] | DCONMS [mm] | SIG [deg] | LF [mm] | PL [mm] | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 862.2-2820-056A0-GP | ● | ● | ● | ● | ● | ● | ○ | 5.60 | 13.50 | 50.00 | 4.00 | 140.00 | 49.19 | 0.51 | h8 | H8 |
| 862.2-2850-056A0-GP | ● | ● | ● | ● | ● | ● | ○ | 5.60 | 13.50 | 50.00 | 4.00 | 140.00 | 49.18 | 0.52 | h8 | H8 |
| 862.2-2870-056A0-GP | ● | ● | ● | ● | ● | ● | ○ | 5.60 | 13.50 | 50.00 | 4.00 | 140.00 | 49.17 | 0.52 | h8 | H8 |
| 862.2-2900-058A0-GP | ● | ● | ● | ● | ● | ● | ○ | 5.80 | 14.00 | 50.00 | 4.00 | 140.00 | 49.16 | 0.53 | h8 | H8 |
| 862.2-2950-059A0-GP | ● | ● | ● | ● | ● | ● | ○ | 5.90 | 14.00 | 50.00 | 4.00 | 140.00 | 49.15 | 0.54 | h8 | H8 |
| 862.2-3000-060A0-GP | ● | ● | ● | ● | ● | ● | ○ | 6.00 | 14.00 | 50.00 | 4.00 | 140.00 | 49.13 | 0.55 | h8 | H8 |
● = первый выбор, ○ = хороший выбор
