Сверлильный инструмент | CoroDrill® 862

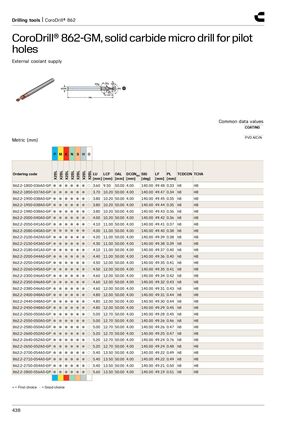

CoroDrill® 862-GM, твердосплавное микросверло цельное для центровочных отверстий
Внешний подвод СОЖ.
Общие значения данных
ПОКРЫТИЕ: PVD AlCrN
Метрическая система (мм)
Применимость: P M K N S H O — X2BL
| Код заказа | P | M | K | N | S | H | O | LU [mm] | LCF [mm] | OAL [mm] | DCONMS [mm] | SIG [deg] | LF [mm] | PL [mm] | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 862.2-1800-036A0-GP | ● | ● | ● | ● | ● | ● | ○ | 3.60 | 9.50 | 50.00 | 4.00 | 140.00 | 49.48 | 0.33 | h8 | H8 |
| 862.2-1850-037A0-GP | ● | ● | ● | ● | ● | ● | ○ | 3.70 | 10.20 | 50.00 | 4.00 | 140.00 | 49.47 | 0.34 | h8 | H8 |
| 862.2-1900-038A0-GP | ● | ● | ● | ● | ● | ● | ○ | 3.80 | 10.20 | 50.00 | 4.00 | 140.00 | 49.45 | 0.35 | h8 | H8 |
| 862.2-1950-038A0-GP | ● | ● | ● | ● | ● | ● | ○ | 3.80 | 10.20 | 50.00 | 4.00 | 140.00 | 49.44 | 0.35 | h8 | H8 |
| 862.2-1980-038A0-GP | ● | ● | ● | ● | ● | ● | ○ | 3.80 | 10.20 | 50.00 | 4.00 | 140.00 | 49.43 | 0.36 | h8 | H8 |
| 862.2-2000-040A0-GP | ● | ● | ● | ● | ● | ● | ○ | 4.00 | 10.20 | 50.00 | 4.00 | 140.00 | 49.42 | 0.36 | h8 | H8 |
| 862.2-2050-041A0-GP | ● | ● | ● | ● | ● | ● | ○ | 4.10 | 11.00 | 50.00 | 4.00 | 140.00 | 49.41 | 0.37 | h8 | H8 |
| 862.2-2080-040A0-GP | ● | ● | ● | ● | ● | ● | ○ | 4.00 | 11.00 | 50.00 | 4.00 | 140.00 | 49.40 | 0.38 | h8 | H8 |
| 862.2-2100-042A0-GP | ● | ● | ● | ● | ● | ● | ○ | 4.20 | 11.00 | 50.00 | 4.00 | 140.00 | 49.39 | 0.38 | h8 | H8 |
| 862.2-2150-043A0-GP | ● | ● | ● | ● | ● | ● | ○ | 4.30 | 11.00 | 50.00 | 4.00 | 140.00 | 49.38 | 0.39 | h8 | H8 |
| 862.2-2180-041A0-GP | ● | ● | ● | ● | ● | ● | ○ | 4.10 | 11.00 | 50.00 | 4.00 | 140.00 | 49.37 | 0.40 | h8 | H8 |
| 862.2-2200-044A0-GP | ● | ● | ● | ● | ● | ● | ○ | 4.40 | 11.00 | 50.00 | 4.00 | 140.00 | 49.36 | 0.40 | h8 | H8 |
| 862.2-2250-045A0-GP | ● | ● | ● | ● | ● | ● | ○ | 4.50 | 12.00 | 50.00 | 4.00 | 140.00 | 49.35 | 0.41 | h8 | H8 |
| 862.2-2260-045A0-GP | ● | ● | ● | ● | ● | ● | ○ | 4.50 | 12.00 | 50.00 | 4.00 | 140.00 | 49.35 | 0.41 | h8 | H8 |
| 862.2-2300-046A0-GP | ● | ● | ● | ● | ● | ● | ○ | 4.60 | 12.00 | 50.00 | 4.00 | 140.00 | 49.34 | 0.42 | h8 | H8 |
| 862.2-2350-046A0-GP | ● | ● | ● | ● | ● | ● | ○ | 4.60 | 12.00 | 50.00 | 4.00 | 140.00 | 49.32 | 0.43 | h8 | H8 |
| 862.2-2380-046A0-GP | ● | ● | ● | ● | ● | ● | ○ | 4.60 | 12.00 | 50.00 | 4.00 | 140.00 | 49.31 | 0.43 | h8 | H8 |
| 862.2-2400-048A0-GP | ● | ● | ● | ● | ● | ● | ○ | 4.80 | 12.00 | 50.00 | 4.00 | 140.00 | 49.31 | 0.44 | h8 | H8 |
| 862.2-2440-048A0-GP | ● | ● | ● | ● | ● | ● | ○ | 4.80 | 12.00 | 50.00 | 4.00 | 140.00 | 49.30 | 0.44 | h8 | H8 |
| 862.2-2450-048A0-GP | ● | ● | ● | ● | ● | ● | ○ | 4.80 | 12.00 | 50.00 | 4.00 | 140.00 | 49.29 | 0.45 | h8 | H8 |
| 862.2-2500-050A0-GP | ● | ● | ● | ● | ● | ● | ○ | 5.00 | 12.70 | 50.00 | 4.00 | 140.00 | 49.28 | 0.45 | h8 | H8 |
| 862.2-2550-050A0-GP | ● | ● | ● | ● | ● | ● | ○ | 5.00 | 12.70 | 50.00 | 4.00 | 140.00 | 49.26 | 0.46 | h8 | H8 |
| 862.2-2580-050A0-GP | ● | ● | ● | ● | ● | ● | ○ | 5.00 | 12.70 | 50.00 | 4.00 | 140.00 | 49.26 | 0.47 | h8 | H8 |
| 862.2-2600-052A0-GP | ● | ● | ● | ● | ● | ● | ○ | 5.20 | 12.70 | 50.00 | 4.00 | 140.00 | 49.25 | 0.47 | h8 | H8 |
| 862.2-2640-052A0-GP | ● | ● | ● | ● | ● | ● | ○ | 5.20 | 12.70 | 50.00 | 4.00 | 140.00 | 49.24 | 0.76 | h8 | H8 |
| 862.2-2650-052A0-GP | ● | ● | ● | ● | ● | ● | ○ | 5.20 | 12.70 | 50.00 | 4.00 | 140.00 | 49.24 | 0.48 | h8 | H8 |
| 862.2-2700-054A0-GP | ● | ● | ● | ● | ● | ● | ○ | 5.40 | 13.50 | 50.00 | 4.00 | 140.00 | 49.22 | 0.49 | h8 | H8 |
| 862.2-2710-054A0-GP | ● | ● | ● | ● | ● | ● | ○ | 5.40 | 13.50 | 50.00 | 4.00 | 140.00 | 49.22 | 0.49 | h8 | H8 |
| 862.2-2750-054A0-GP | ● | ● | ● | ● | ● | ● | ○ | 5.40 | 13.50 | 50.00 | 4.00 | 140.00 | 49.21 | 0.50 | h8 | H8 |
| 862.2-2800-056A0-GP | ● | ● | ● | ● | ● | ● | ○ | 5.60 | 13.50 | 50.00 | 4.00 | 140.00 | 49.19 | 0.51 | h8 | H8 |
● = первый выбор, ○ = хороший выбор
