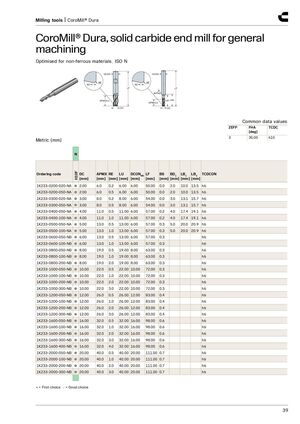

Инструмент для фрезерования | CoroMill® Dura
CoroMill® Dura, концевая фреза из цельного твердого сплава для общей обработки
Оптимизирована для цветных металлов, ISO N.
| Общие значения | ||
|---|---|---|
| ZEFP: 3 | FHA [град]: 35.00 | TCDC: h10 |
| Код заказа | DC [мм] | APMX [мм] | RE [мм] | LU [мм] | DCONMS [мм] | LF [мм] | BS [мм] | BD1 [мм] | LB1 [мм] | LB2 [мм] | TCDCON |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1K233-0200-020-NA ● | 2.00 | 6.0 | 0.2 | 6.00 | 6.00 | 50.00 | 0.0 | 2.0 | 10.0 | 13.5 | h6 |
| 1K233-0200-050-NA ● | 2.00 | 6.0 | 0.5 | 6.00 | 6.00 | 50.00 | 0.0 | 2.0 | 10.0 | 13.5 | h6 |
| 1K233-0300-020-NA ● | 3.00 | 8.0 | 0.2 | 8.00 | 6.00 | 54.00 | 0.0 | 3.0 | 13.1 | 15.7 | h6 |
| 1K233-0300-050-NA ● | 3.00 | 8.0 | 0.5 | 8.00 | 6.00 | 54.00 | 0.0 | 3.0 | 13.1 | 15.7 | h6 |
| 1K233-0400-050-NA ● | 4.00 | 11.0 | 0.5 | 11.00 | 6.00 | 57.00 | 0.2 | 4.0 | 17.4 | 19.1 | h6 |
| 1K233-0400-100-NA ● | 4.00 | 11.0 | 1.0 | 11.00 | 6.00 | 57.00 | 0.2 | 4.0 | 17.4 | 19.1 | h6 |
| 1K233-0500-050-NA ● | 5.00 | 13.0 | 0.5 | 13.00 | 6.00 | 57.00 | 0.3 | 5.0 | 20.0 | 20.9 | h6 |
| 1K233-0500-100-NA ● | 5.00 | 13.0 | 1.0 | 13.00 | 6.00 | 57.00 | 0.3 | 5.0 | 20.0 | 20.9 | h6 |
| 1K233-0600-050-NB ● | 6.00 | 13.0 | 0.5 | 13.00 | 6.00 | 57.00 | 0.3 | h6 | |||
| 1K233-0600-100-NB ● | 6.00 | 13.0 | 1.0 | 13.00 | 6.00 | 57.00 | 0.3 | h6 | |||
| 1K233-0800-050-NB ● | 8.00 | 19.0 | 0.5 | 19.00 | 8.00 | 63.00 | 0.3 | h6 | |||
| 1K233-0800-100-NB ● | 8.00 | 19.0 | 1.0 | 19.00 | 8.00 | 63.00 | 0.3 | h6 | |||
| 1K233-0800-200-NB ● | 8.00 | 19.0 | 2.0 | 19.00 | 8.00 | 63.00 | 0.3 | h6 | |||
| 1K233-1000-050-NB ● | 10.00 | 22.0 | 0.5 | 22.00 | 10.00 | 72.00 | 0.3 | h6 | |||
| 1K233-1000-100-NB ● | 10.00 | 22.0 | 1.0 | 22.00 | 10.00 | 72.00 | 0.3 | h6 | |||
| 1K233-1000-200-NB ● | 10.00 | 22.0 | 2.0 | 22.00 | 10.00 | 72.00 | 0.3 | h6 | |||
| 1K233-1000-300-NB ● | 10.00 | 22.0 | 3.0 | 22.00 | 10.00 | 72.00 | 0.3 | h6 | |||
| 1K233-1200-050-NB ● | 12.00 | 26.0 | 0.5 | 26.00 | 12.00 | 83.00 | 0.4 | h6 | |||
| 1K233-1200-100-NB ● | 12.00 | 26.0 | 1.0 | 26.00 | 12.00 | 83.00 | 0.4 | h6 | |||
| 1K233-1200-200-NB ● | 12.00 | 26.0 | 2.0 | 26.00 | 12.00 | 83.00 | 0.4 | h6 | |||
| 1K233-1200-300-NB ● | 12.00 | 26.0 | 3.0 | 26.00 | 12.00 | 83.00 | 0.4 | h6 | |||
| 1K233-1600-050-NB ● | 16.00 | 32.0 | 0.5 | 32.00 | 16.00 | 98.00 | 0.6 | h6 | |||
| 1K233-1600-100-NB ● | 16.00 | 32.0 | 1.0 | 32.00 | 16.00 | 98.00 | 0.6 | h6 | |||
| 1K233-1600-200-NB ● | 16.00 | 32.0 | 2.0 | 32.00 | 16.00 | 98.00 | 0.6 | h6 | |||
| 1K233-1600-300-NB ● | 16.00 | 32.0 | 3.0 | 32.00 | 16.00 | 98.00 | 0.6 | h6 | |||
| 1K233-1600-400-NB ● | 16.00 | 32.0 | 4.0 | 32.00 | 16.00 | 98.00 | 0.6 | h6 | |||
| 1K233-2000-050-NB ● | 20.00 | 40.0 | 0.5 | 40.00 | 20.00 | 111.00 | 0.7 | h6 | |||
| 1K233-2000-100-NB ● | 20.00 | 40.0 | 1.0 | 40.00 | 20.00 | 111.00 | 0.7 | h6 | |||
| 1K233-2000-200-NB ● | 20.00 | 40.0 | 2.0 | 40.00 | 20.00 | 111.00 | 0.7 | h6 | |||
| 1K233-2000-300-NB ● | 20.00 | 40.0 | 3.0 | 40.00 | 20.00 | 111.00 | 0.7 | h6 |
● = Первый выбор ○ = Хороший выбор
