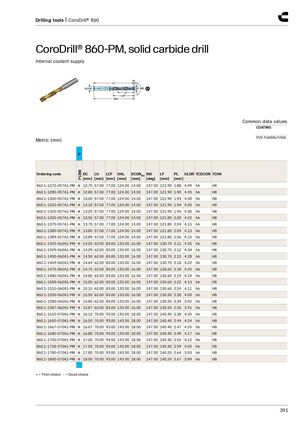

CoroDrill® 860-PM, сверло из твёрдого сплава
Внутренняя подача СОЖ
Общие данные
Покрытие: PVD TiAlSiN+TiSiN
Метрическая система (мм)
Область применения: P, P1BM
| Артикул | Выбор | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR [мм] | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-1270-057A1-PM | ● | 12.70 | 57.00 | 77.00 | 124.00 | 14.00 | 147.00 | 121.90 | 1.88 | 4.49 | h6 | H8 |
| 860.1-1280-057A1-PM | ● | 12.80 | 57.00 | 77.00 | 124.00 | 14.00 | 147.00 | 121.90 | 1.90 | 4.45 | h6 | H8 |
| 860.1-1300-057A1-PM | ● | 13.00 | 57.00 | 77.00 | 124.00 | 14.00 | 147.00 | 121.90 | 1.93 | 4.38 | h6 | H8 |
| 860.1-1310-057A1-PM | ● | 13.10 | 57.00 | 77.00 | 124.00 | 14.00 | 147.00 | 121.90 | 1.94 | 4.35 | h6 | H8 |
| 860.1-1325-057A1-PM | ● | 13.25 | 57.00 | 77.00 | 124.00 | 14.00 | 147.00 | 121.90 | 1.96 | 4.30 | h6 | H8 |
| 860.1-1350-057A1-PM | ● | 13.50 | 57.00 | 77.00 | 124.00 | 14.00 | 147.00 | 121.80 | 2.00 | 4.22 | h6 | H8 |
| 860.1-1375-057A1-PM | ● | 13.75 | 57.00 | 77.00 | 124.00 | 14.00 | 147.00 | 121.80 | 2.04 | 4.15 | h6 | H8 |
| 860.1-1380-057A1-PM | ● | 13.80 | 57.00 | 77.00 | 124.00 | 14.00 | 147.00 | 121.80 | 2.04 | 4.13 | h6 | H8 |
| 860.1-1389-057A1-PM | ● | 13.89 | 57.00 | 77.00 | 124.00 | 14.00 | 147.00 | 121.80 | 2.06 | 4.10 | h6 | H8 |
| 860.1-1425-062A1-PM | ● | 14.25 | 62.00 | 83.00 | 133.00 | 16.00 | 147.00 | 130.70 | 2.11 | 4.35 | h6 | H8 |
| 860.1-1429-062A1-PM | ● | 14.29 | 62.00 | 83.00 | 133.00 | 16.00 | 147.00 | 130.70 | 2.12 | 4.34 | h6 | H8 |
| 860.1-1450-062A1-PM | ● | 14.50 | 62.00 | 83.00 | 133.00 | 16.00 | 147.00 | 130.70 | 2.15 | 4.28 | h6 | H8 |
| 860.1-1469-062A1-PM | ● | 14.69 | 62.00 | 83.00 | 133.00 | 16.00 | 147.00 | 130.70 | 2.18 | 4.22 | h6 | H8 |
| 860.1-1475-062A1-PM | ● | 14.75 | 62.00 | 83.00 | 133.00 | 16.00 | 147.00 | 130.60 | 2.18 | 4.20 | h6 | H8 |
| 860.1-1480-062A1-PM | ● | 14.80 | 62.00 | 83.00 | 133.00 | 16.00 | 147.00 | 130.60 | 2.19 | 4.19 | h6 | H8 |
| 860.1-1500-062A1-PM | ● | 15.00 | 62.00 | 83.00 | 133.00 | 16.00 | 147.00 | 130.60 | 2.22 | 4.13 | h6 | H8 |
| 860.1-1510-062A1-PM | ● | 15.10 | 62.00 | 83.00 | 133.00 | 16.00 | 147.00 | 130.60 | 2.24 | 4.11 | h6 | H8 |
| 860.1-1550-062A1-PM | ● | 15.50 | 62.00 | 83.00 | 133.00 | 16.00 | 147.00 | 130.50 | 2.30 | 4.00 | h6 | H8 |
| 860.1-1580-062A1-PM | ● | 15.80 | 62.00 | 83.00 | 133.00 | 16.00 | 147.00 | 130.50 | 2.34 | 3.92 | h6 | H8 |
| 860.1-1587-062A1-PM | ● | 15.87 | 62.00 | 83.00 | 133.00 | 16.00 | 147.00 | 130.50 | 2.35 | 3.91 | h6 | H8 |
| 860.1-1610-070A1-PM | ● | 16.10 | 70.00 | 93.00 | 143.00 | 18.00 | 147.00 | 140.40 | 2.38 | 4.35 | h6 | H8 |
| 860.1-1650-070A1-PM | ● | 16.50 | 70.00 | 93.00 | 143.00 | 18.00 | 147.00 | 140.40 | 2.44 | 4.24 | h6 | H8 |
| 860.1-1667-070A1-PM | ● | 16.67 | 70.00 | 93.00 | 143.00 | 18.00 | 147.00 | 140.40 | 2.47 | 4.20 | h6 | H8 |
| 860.1-1680-070A1-PM | ● | 16.80 | 70.00 | 93.00 | 143.00 | 18.00 | 147.00 | 140.40 | 2.49 | 4.17 | h6 | H8 |
| 860.1-1700-070A1-PM | ● | 17.00 | 70.00 | 93.00 | 143.00 | 18.00 | 147.00 | 140.30 | 2.52 | 4.12 | h6 | H8 |
| 860.1-1750-070A1-PM | ● | 17.50 | 70.00 | 93.00 | 143.00 | 18.00 | 147.00 | 140.30 | 2.59 | 4.00 | h6 | H8 |
| 860.1-1780-070A1-PM | ● | 17.80 | 70.00 | 93.00 | 143.00 | 18.00 | 147.00 | 140.20 | 2.64 | 3.93 | h6 | H8 |
| 860.1-1800-070A1-PM | ● | 18.00 | 70.00 | 93.00 | 143.00 | 18.00 | 147.00 | 140.20 | 2.67 | 3.89 | h6 | H8 |
● = первый выбор ○ = хороший выбор
