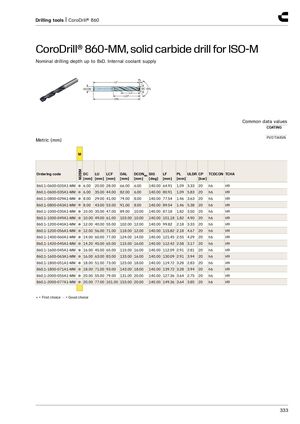

Инструмент для сверления | CoroDrill® 860
CoroDrill® 860-MM, монолитное твердосплавное сверло для ISO-M
Номинальная глубина сверления до 8xD. Внутренняя подача СОЖ.
Общие данные: ПОКРЫТИЕ — PVD TiAlSiN. Метрическая (мм). Группа применения: M, класс M2BM.
| Код заказа | M | DC [mm] | LU [mm] | LCF [mm] | OAL [mm] | DCONMS [mm] | SIG [deg] | LF [mm] | PL [mm] | ULDR | CP | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-0600-020A1-MM | ● | 6.00 | 20.00 | 28.00 | 66.00 | 6.00 | 140.00 | 64.91 | 1.09 | 3.33 | 20 | h6 | H9 |
| 860.1-0600-035A1-MM | ● | 6.00 | 35.00 | 44.00 | 82.00 | 6.00 | 140.00 | 80.91 | 1.09 | 5.83 | 20 | h6 | H9 |
| 860.1-0800-029A1-MM | ● | 8.00 | 29.00 | 41.00 | 79.00 | 8.00 | 140.00 | 77.54 | 1.46 | 3.63 | 20 | h6 | H9 |
| 860.1-0800-043A1-MM | ● | 8.00 | 43.00 | 53.00 | 91.00 | 8.00 | 140.00 | 89.54 | 1.46 | 5.38 | 20 | h6 | H9 |
| 860.1-1000-035A1-MM | ● | 10.00 | 35.00 | 47.00 | 89.00 | 10.00 | 140.00 | 87.18 | 1.82 | 3.50 | 20 | h6 | H9 |
| 860.1-1000-049A1-MM | ● | 10.00 | 49.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.18 | 1.82 | 4.90 | 20 | h6 | H9 |
| 860.1-1200-040A1-MM | ● | 12.00 | 40.00 | 55.00 | 102.00 | 12.00 | 140.00 | 99.82 | 2.18 | 3.33 | 20 | h6 | H9 |
| 860.1-1200-056A1-MM | ● | 12.00 | 56.00 | 71.00 | 118.00 | 12.00 | 140.00 | 115.82 | 2.18 | 4.67 | 20 | h6 | H9 |
| 860.1-1400-060A1-MM | ● | 14.00 | 60.00 | 77.00 | 124.00 | 14.00 | 140.00 | 121.45 | 2.55 | 4.29 | 20 | h6 | H9 |
| 860.1-1420-045A1-MM | ● | 14.20 | 45.00 | 65.00 | 115.00 | 16.00 | 140.00 | 112.42 | 2.58 | 3.17 | 20 | h6 | H9 |
| 860.1-1600-045A1-MM | ● | 16.00 | 45.00 | 65.00 | 115.00 | 16.00 | 140.00 | 112.09 | 2.91 | 2.81 | 20 | h6 | H9 |
| 860.1-1600-063A1-MM | ● | 16.00 | 63.00 | 83.00 | 133.00 | 16.00 | 140.00 | 130.09 | 2.91 | 3.94 | 20 | h6 | H9 |
| 860.1-1800-051A1-MM | ● | 18.00 | 51.00 | 73.00 | 123.00 | 18.00 | 140.00 | 119.72 | 3.28 | 2.83 | 20 | h6 | H9 |
| 860.1-1800-071A1-MM | ● | 18.00 | 71.00 | 93.00 | 143.00 | 18.00 | 140.00 | 139.72 | 3.28 | 3.94 | 20 | h6 | H9 |
| 860.1-2000-055A1-MM | ● | 20.00 | 55.00 | 79.00 | 131.00 | 20.00 | 140.00 | 127.36 | 3.64 | 2.75 | 20 | h6 | H9 |
| 860.1-2000-077A1-MM | ● | 20.00 | 77.00 | 101.00 | 153.00 | 20.00 | 140.00 | 149.36 | 3.64 | 3.85 | 20 | h6 | H9 |
● — первый выбор, ○ — хороший выбор.
