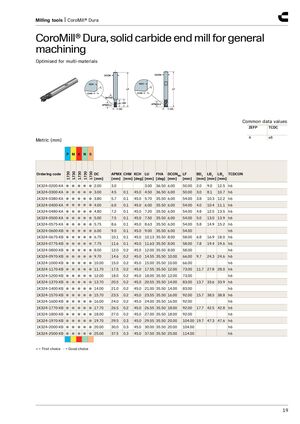

Инструмент для фрезерования | CoroMill® Dura
CoroMill® Dura, концевая фреза из цельного твердого сплава для общей обработки
Оптимизирована для различных материалов.
Общие значения данных
| ZEFP | TCDC |
|---|---|
| 4 | e8 |
Метрическая система (мм)
| P | M | K | N | S |
|---|---|---|---|---|
| 1730 | 1730 | 1730 | 1730 | 1730 |
| Код заказа | P/M/K/N/S | DC [мм] | APMX [мм] | CHW [мм] | KCH [град] | LU [мм] | FHA [град] | DCONMS [мм] | LF [мм] | BD1_ [мм] | LB1_ [мм] | LB2_ [мм] | TCDCON |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1K324-0200-XA | ●●●●● | 2.00 | 3.0 | – | – | 3.00 | 36.50 | 6.00 | 50.00 | 2.0 | 9.0 | 12.5 | h6 |
| 1K324-0300-XA | ●●●●● | 3.00 | 4.5 | 0.1 | 45.0 | 4.50 | 36.50 | 6.00 | 50.00 | 3.0 | 8.1 | 10.7 | h6 |
| 1K324-0380-XA | ●●●●● | 3.80 | 5.7 | 0.1 | 45.0 | 5.70 | 35.50 | 6.00 | 54.00 | 3.8 | 10.3 | 12.2 | h6 |
| 1K324-0400-XA | ●●●●● | 4.00 | 6.0 | 0.1 | 45.0 | 6.00 | 35.50 | 6.00 | 54.00 | 4.0 | 10.4 | 11.1 | h6 |
| 1K324-0480-XA | ●●●●● | 4.80 | 7.2 | 0.1 | 45.0 | 7.20 | 35.50 | 6.00 | 54.00 | 4.8 | 12.5 | 13.5 | h6 |
| 1K324-0500-XA | ●●●●● | 5.00 | 7.5 | 0.1 | 45.0 | 7.50 | 35.50 | 6.00 | 54.00 | 5.0 | 13.0 | 13.9 | h6 |
| 1K324-0575-XA | ●●●●● | 5.75 | 8.6 | 0.1 | 45.0 | 8.63 | 35.50 | 6.00 | 54.00 | 5.8 | 14.9 | 15.2 | h6 |
| 1K324-0600-XB | ●●●●● | 6.00 | 9.0 | 0.1 | 45.0 | 9.00 | 35.50 | 6.00 | 54.00 | – | – | – | h6 |
| 1K324-0675-XB | ●●●●● | 6.75 | 10.1 | 0.1 | 45.0 | 10.13 | 35.50 | 8.00 | 58.00 | 6.8 | 16.9 | 18.0 | h6 |
| 1K324-0775-XB | ●●●●● | 7.75 | 11.6 | 0.1 | 45.0 | 11.63 | 35.50 | 8.00 | 58.00 | 7.8 | 19.4 | 19.6 | h6 |
| 1K324-0800-XB | ●●●●● | 8.00 | 12.0 | 0.2 | 45.0 | 12.00 | 35.50 | 8.00 | 58.00 | – | – | – | h6 |
| 1K324-0970-XB | ●●●●● | 9.70 | 14.6 | 0.2 | 45.0 | 14.55 | 35.50 | 10.00 | 66.00 | 9.7 | 24.3 | 24.6 | h6 |
| 1K324-1000-XB | ●●●●● | 10.00 | 15.0 | 0.2 | 45.0 | 15.00 | 35.50 | 10.00 | 66.00 | – | – | – | h6 |
| 1K324-1170-XB | ●●●●● | 11.70 | 17.5 | 0.2 | 45.0 | 17.55 | 35.50 | 12.00 | 73.00 | 11.7 | 27.8 | 28.0 | h6 |
| 1K324-1200-XB | ●●●●● | 12.00 | 18.0 | 0.2 | 45.0 | 18.00 | 35.50 | 12.00 | 73.00 | – | – | – | h6 |
| 1K324-1370-XB | ●●●●● | 13.70 | 20.5 | 0.2 | 45.0 | 20.55 | 35.50 | 14.00 | 83.00 | 13.7 | 33.6 | 33.9 | h6 |
| 1K324-1400-XB | ●●●●● | 14.00 | 21.0 | 0.2 | 45.0 | 21.00 | 35.50 | 14.00 | 83.00 | – | – | – | h6 |
| 1K324-1570-XB | ●●●●● | 15.70 | 23.5 | 0.2 | 45.0 | 23.55 | 35.50 | 16.00 | 92.00 | 15.7 | 38.5 | 38.8 | h6 |
| 1K324-1600-XB | ●●●●● | 16.00 | 24.0 | 0.2 | 45.0 | 24.00 | 35.50 | 16.00 | 92.00 | – | – | – | h6 |
| 1K324-1770-XB | ●●●●● | 17.70 | 26.5 | 0.2 | 45.0 | 26.55 | 35.50 | 18.00 | 92.00 | 17.7 | 42.5 | 42.8 | h6 |
| 1K324-1800-XB | ●●●●● | 18.00 | 27.0 | 0.2 | 45.0 | 27.00 | 35.50 | 18.00 | 92.00 | – | – | – | h6 |
| 1K324-1970-XB | ●●●●● | 19.70 | 29.5 | 0.3 | 45.0 | 29.55 | 35.50 | 20.00 | 104.00 | 19.7 | 47.3 | 47.6 | h6 |
| 1K324-2000-XB | ●●●●● | 20.00 | 30.0 | 0.3 | 45.0 | 30.00 | 35.50 | 20.00 | 104.00 | – | – | – | h6 |
| 1K324-2500-XB | ●●●●● | 25.00 | 37.5 | 0.3 | 45.0 | 37.50 | 35.50 | 25.00 | 114.00 | – | – | – | h6 |
● = Первый выбор, ○ = Хороший выбор
