Инструмент для фрезерования | CoroMill® Dura

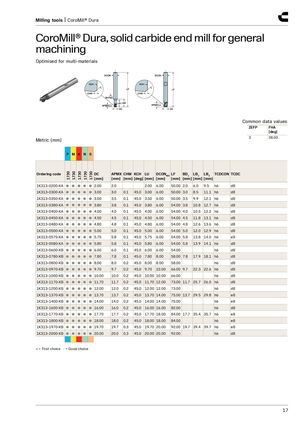

CoroMill® Dura, концевая фреза из цельного твердого сплава для общей обработки
Оптимизирована для различных материалов.
Общие значения данных
| ZEFP | FHA [град] |
|---|---|
| 3 | 38.00 |
Метрическая система (мм)
| P | M | K | N | S |
|---|---|---|---|---|
| 1730 | 1730 | 1730 | 1730 | 1730 |
| Код заказа | P/M/K/N/S | DC [мм] | APMX [мм] | CHW [мм] | KCH [град] | LU [мм] | DCONMS [мм] | LF [мм] | BD1_ [мм] | LB1_ [мм] | LB2_ [мм] | TCDCON | TCDC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1K313-0200-XA | ●●●●● | 2.00 | 2.0 | – | – | 2.00 | 6.00 | 50.00 | 2.0 | 6.0 | 9.5 | h6 | d8 |
| 1K313-0300-XA | ●●●●● | 3.00 | 3.0 | 0.1 | 45.0 | 3.00 | 6.00 | 50.00 | 3.0 | 8.5 | 11.1 | h6 | d8 |
| 1K313-0350-XA | ●●●●● | 3.50 | 3.5 | 0.1 | 45.0 | 3.50 | 6.00 | 50.00 | 3.5 | 9.9 | 12.1 | h6 | d8 |
| 1K313-0380-XA | ●●●●● | 3.80 | 3.8 | 0.1 | 45.0 | 3.80 | 6.00 | 54.00 | 3.8 | 10.8 | 12.7 | h6 | d8 |
| 1K313-0400-XA | ●●●●● | 4.00 | 4.0 | 0.1 | 45.0 | 4.00 | 6.00 | 54.00 | 4.0 | 10.5 | 12.2 | h6 | d8 |
| 1K313-0450-XA | ●●●●● | 4.50 | 4.5 | 0.1 | 45.0 | 4.50 | 6.00 | 54.00 | 4.5 | 11.8 | 13.1 | h6 | d8 |
| 1K313-0480-XA | ●●●●● | 4.80 | 4.8 | 0.1 | 45.0 | 4.80 | 6.00 | 54.00 | 4.8 | 12.6 | 13.6 | h6 | d8 |
| 1K313-0500-XA | ●●●●● | 5.00 | 5.0 | 0.1 | 45.0 | 5.00 | 6.00 | 54.00 | 5.0 | 12.0 | 12.9 | h6 | d8 |
| 1K313-0575-XA | ●●●●● | 5.75 | 5.8 | 0.1 | 45.0 | 5.75 | 6.00 | 54.00 | 5.8 | 13.8 | 14.0 | h6 | e8 |
| 1K313-0580-XA | ●●●●● | 5.80 | 5.8 | 0.1 | 45.0 | 5.80 | 6.00 | 54.00 | 5.8 | 13.9 | 14.1 | h6 | d8 |
| 1K313-0600-XB | ●●●●● | 6.00 | 6.0 | 0.1 | 45.0 | 6.00 | 6.00 | 54.00 | – | – | – | h6 | d8 |
| 1K313-0780-XB | ●●●●● | 7.80 | 7.8 | 0.1 | 45.0 | 7.80 | 8.00 | 58.00 | 7.8 | 17.9 | 18.1 | h6 | d8 |
| 1K313-0800-XB | ●●●●● | 8.00 | 8.0 | 0.2 | 45.0 | 8.00 | 8.00 | 58.00 | – | – | – | h6 | d8 |
| 1K313-0970-XB | ●●●●● | 9.70 | 9.7 | 0.2 | 45.0 | 9.70 | 10.00 | 66.00 | 9.7 | 22.3 | 22.6 | h6 | d8 |
| 1K313-1000-XB | ●●●●● | 10.00 | 10.0 | 0.2 | 45.0 | 10.00 | 10.00 | 66.00 | – | – | – | h6 | d8 |
| 1K313-1170-XB | ●●●●● | 11.70 | 11.7 | 0.2 | 45.0 | 11.70 | 12.00 | 73.00 | 11.7 | 25.7 | 26.0 | h6 | d8 |
| 1K313-1200-XB | ●●●●● | 12.00 | 12.0 | 0.2 | 45.0 | 12.00 | 12.00 | 73.00 | – | – | – | h6 | d8 |
| 1K313-1370-XB | ●●●●● | 13.70 | 13.7 | 0.2 | 45.0 | 13.70 | 14.00 | 75.00 | 13.7 | 29.5 | 29.8 | h6 | e8 |
| 1K313-1400-XB | ●●●●● | 14.00 | 14.0 | 0.2 | 45.0 | 14.00 | 14.00 | 75.00 | – | – | – | h6 | e8 |
| 1K313-1600-XB | ●●●●● | 16.00 | 16.0 | 0.2 | 45.0 | 16.00 | 16.00 | 82.00 | – | – | – | h6 | d8 |
| 1K313-1770-XB | ●●●●● | 17.70 | 17.7 | 0.2 | 45.0 | 17.70 | 18.00 | 84.00 | 17.7 | 35.4 | 35.7 | h6 | e8 |
| 1K313-1800-XB | ●●●●● | 18.00 | 18.0 | 0.2 | 45.0 | 18.00 | 18.00 | 84.00 | – | – | – | h6 | e8 |
| 1K313-1970-XB | ●●●●● | 19.70 | 19.7 | 0.3 | 45.0 | 19.70 | 20.00 | 92.00 | 19.7 | 39.4 | 39.7 | h6 | e8 |
| 1K313-2000-XB | ●●●●● | 20.00 | 20.0 | 0.3 | 45.0 | 20.00 | 20.00 | 92.00 | – | – | – | h6 | d8 |
● = Первый выбор, ○ = Хороший выбор
