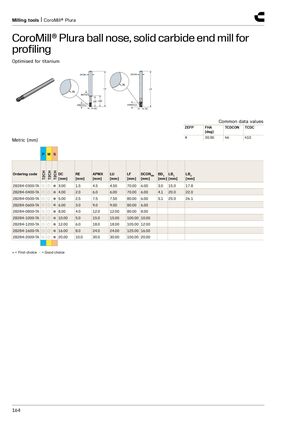

CoroMill® Plura ball nose, цельная твердосплавная концевая фреза для профильной обработки
Оптимизирована для титана
| Общие значения данных | |||
|---|---|---|---|
| ZEFP | FHA [град] | TCDCON | TCDC |
| 4 | 30.00 | h6 | h10 |
Метрические (мм)
| Код заказа | DC [мм] | RE [мм] | APMX [мм] | LU [мм] | LF [мм] | DCONMS [мм] | BD 1 [мм] | LB 1 [мм] | LB 2 [мм] |
|---|---|---|---|---|---|---|---|---|---|
| 2B284-0300-TA ○ ○ ● | 3.00 | 1.5 | 4.5 | 4.50 | 70.00 | 6.00 | 3.0 | 15.0 | 17.8 |
| 2B284-0400-TA ○ ○ ● | 4.00 | 2.0 | 6.0 | 6.00 | 70.00 | 6.00 | 4.1 | 20.0 | 22.0 |
| 2B284-0500-TA ○ ○ ● | 5.00 | 2.5 | 7.5 | 7.50 | 80.00 | 6.00 | 5.1 | 25.0 | 26.1 |
| 2B284-0600-TA ○ ○ ● | 6.00 | 3.0 | 9.0 | 9.00 | 80.00 | 6.00 | |||
| 2B284-0800-TA ○ ○ ● | 8.00 | 4.0 | 12.0 | 12.00 | 80.00 | 8.00 | |||
| 2B284-1000-TA ○ ○ ● | 10.00 | 5.0 | 15.0 | 15.00 | 100.00 | 10.00 | |||
| 2B284-1200-TA ○ ○ ● | 12.00 | 6.0 | 18.0 | 18.00 | 105.00 | 12.00 | |||
| 2B284-1600-TA ○ ○ ● | 16.00 | 8.0 | 24.0 | 24.00 | 125.00 | 16.00 | |||
| 2B284-2000-TA ○ ○ ● | 20.00 | 10.0 | 30.0 | 30.00 | 150.00 | 20.00 |
● = первый выбор ○ = хороший выбор
