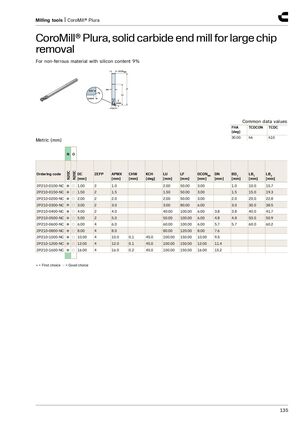

Фрезерный инструмент | CoroMill® Plura
CoroMill® Plura, концевая фреза из твердого сплава для интенсивного удаления стружки
Для цветных металлов с содержанием кремния 9%
Общие значения данных: FHA [град] 30.00, TCDCON h6, TCDC h10
Метрическая система (мм)
Марки сплава: N O — N20C / N20C
| Код заказа | N | O | DC [мм] | ZEFP | APMX [мм] | CHW [мм] | KCH [град] | LU [мм] | LF [мм] | DCONMS [мм] | DN [мм] | BD1 [мм] | LB1 [мм] | LB2 [мм] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2P210-0100-NC | ● | ○ | 1.00 | 2 | 1.0 | 2.00 | 50.00 | 3.00 | 1.0 | 10.0 | 15.7 | |||
| 2P210-0150-NC | ● | ○ | 1.50 | 2 | 1.5 | 1.50 | 50.00 | 3.00 | 1.5 | 15.0 | 19.3 | |||
| 2P210-0200-NC | ● | ○ | 2.00 | 2 | 2.0 | 2.00 | 50.00 | 3.00 | 2.0 | 20.0 | 22.8 | |||
| 2P210-0300-NC | ● | ○ | 3.00 | 2 | 3.0 | 3.00 | 80.00 | 6.00 | 3.0 | 30.0 | 38.5 | |||
| 2P210-0400-NC | ● | ○ | 4.00 | 2 | 4.0 | 40.00 | 100.00 | 6.00 | 3.8 | 3.8 | 40.0 | 41.7 | ||
| 2P210-0500-NC | ● | ○ | 5.00 | 2 | 5.0 | 50.00 | 100.00 | 6.00 | 4.8 | 4.8 | 50.0 | 50.9 | ||
| 2P210-0600-NC | ● | ○ | 6.00 | 4 | 6.0 | 60.00 | 100.00 | 6.00 | 5.7 | 5.7 | 60.0 | 60.2 | ||
| 2P210-0800-NC | ● | ○ | 8.00 | 4 | 8.0 | 80.00 | 120.00 | 8.00 | 7.6 | |||||
| 2P210-1000-NC | ● | ○ | 10.00 | 4 | 10.0 | 0.1 | 45.0 | 100.00 | 150.00 | 10.00 | 9.5 | |||
| 2P210-1200-NC | ● | ○ | 12.00 | 4 | 12.0 | 0.1 | 45.0 | 100.00 | 150.00 | 12.00 | 11.4 | |||
| 2P210-1600-NC | ● | ○ | 16.00 | 4 | 16.0 | 0.2 | 45.0 | 100.00 | 150.00 | 16.00 | 15.2 |
● = Первый выбор ○ = Хороший выбор
