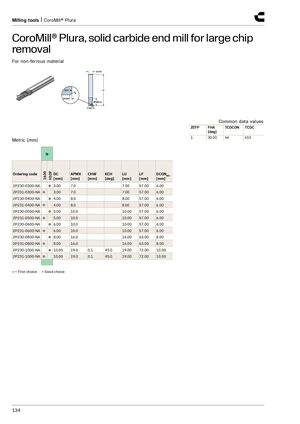

Фрезерный инструмент | CoroMill® Plura
CoroMill® Plura, концевая фреза из твердого сплава для интенсивного удаления стружки
Для цветных металлов
Общие значения данных: ZEFP 1, FHA [град] 30.00, TCDCON h6, TCDC h10
Метрическая система (мм)
Марка сплава: N — H10F, 1630
| Код заказа | N | DC [мм] | APMX [мм] | CHW [мм] | KCH [град] | LU [мм] | LF [мм] | DCONMS [мм] |
|---|---|---|---|---|---|---|---|---|
| 2P230-0300-NA | ● | 3.00 | 7.0 | 7.00 | 57.00 | 6.00 | ||
| 2P231-0300-NA | ● | 3.00 | 7.0 | 7.00 | 57.00 | 6.00 | ||
| 2P230-0400-NA | ● | 4.00 | 8.0 | 8.00 | 57.00 | 6.00 | ||
| 2P231-0400-NA | ● | 4.00 | 8.0 | 8.00 | 57.00 | 6.00 | ||
| 2P230-0500-NA | ● | 5.00 | 10.0 | 10.00 | 57.00 | 6.00 | ||
| 2P231-0500-NA | ● | 5.00 | 10.0 | 10.00 | 57.00 | 6.00 | ||
| 2P230-0600-NA | ● | 6.00 | 10.0 | 10.00 | 57.00 | 6.00 | ||
| 2P231-0600-NA | ● | 6.00 | 10.0 | 10.00 | 57.00 | 6.00 | ||
| 2P230-0800-NA | ● | 8.00 | 16.0 | 16.00 | 63.00 | 8.00 | ||
| 2P231-0800-NA | ● | 8.00 | 16.0 | 16.00 | 63.00 | 8.00 | ||
| 2P230-1000-NA | ● | 10.00 | 19.0 | 0.1 | 45.0 | 19.00 | 72.00 | 10.00 |
| 2P231-1000-NA | ● | 10.00 | 19.0 | 0.1 | 45.0 | 19.00 | 72.00 | 10.00 |
● = Первый выбор ○ = Хороший выбор
