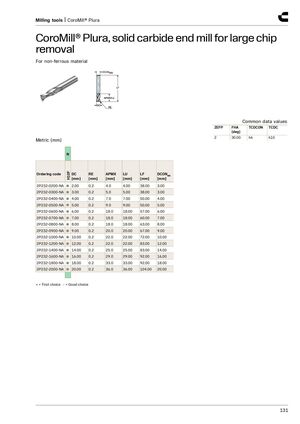

Фрезерный инструмент | CoroMill® Plura
CoroMill® Plura, концевая фреза из твердого сплава для интенсивного удаления стружки
Для цветных металлов
Общие значения данных: ZEFP 2, FHA [град] 30.00, TCDCON h6, TCDC h10
Метрическая система (мм)
Марка сплава: N — H10F
| Код заказа | N | DC [мм] | RE [мм] | APMX [мм] | LU [мм] | LF [мм] | DCONMS [мм] |
|---|---|---|---|---|---|---|---|
| 2P232-0200-NA | ● | 2.00 | 0.2 | 4.0 | 4.00 | 38.00 | 3.00 |
| 2P232-0300-NA | ● | 3.00 | 0.2 | 5.0 | 5.00 | 38.00 | 3.00 |
| 2P232-0400-NA | ● | 4.00 | 0.2 | 7.0 | 7.00 | 50.00 | 4.00 |
| 2P232-0500-NA | ● | 5.00 | 0.2 | 9.0 | 9.00 | 50.00 | 5.00 |
| 2P232-0600-NA | ● | 6.00 | 0.2 | 18.0 | 18.00 | 57.00 | 6.00 |
| 2P232-0700-NA | ● | 7.00 | 0.2 | 18.0 | 18.00 | 60.00 | 7.00 |
| 2P232-0800-NA | ● | 8.00 | 0.2 | 18.0 | 18.00 | 63.00 | 8.00 |
| 2P232-0900-NA | ● | 9.00 | 0.2 | 20.0 | 20.00 | 67.00 | 9.00 |
| 2P232-1000-NA | ● | 10.00 | 0.2 | 22.0 | 22.00 | 72.00 | 10.00 |
| 2P232-1200-NA | ● | 12.00 | 0.2 | 22.0 | 22.00 | 83.00 | 12.00 |
| 2P232-1400-NA | ● | 14.00 | 0.2 | 25.0 | 25.00 | 83.00 | 14.00 |
| 2P232-1600-NA | ● | 16.00 | 0.2 | 29.0 | 29.00 | 92.00 | 16.00 |
| 2P232-1800-NA | ● | 18.00 | 0.2 | 33.0 | 33.00 | 92.00 | 18.00 |
| 2P232-2000-NA | ● | 20.00 | 0.2 | 36.0 | 36.00 | 104.00 | 20.00 |
● = Первый выбор ○ = Хороший выбор
