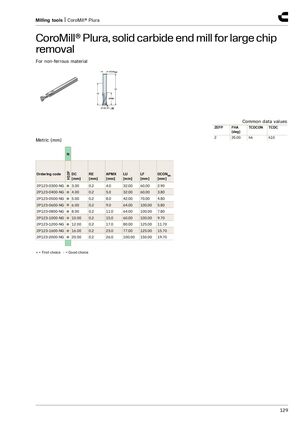

Фрезерный инструмент | CoroMill® Plura
CoroMill® Plura, концевая фреза из твердого сплава для интенсивного удаления стружки
Для цветных металлов
Общие значения данных: ZEFP 2, FHA [град] 25.00, TCDCON h6, TCDC h10
Метрическая система (мм)
Марка сплава: N — H10F
| Код заказа | N | DC [мм] | RE [мм] | APMX [мм] | LU [мм] | LF [мм] | DCONMS [мм] |
|---|---|---|---|---|---|---|---|
| 2P123-0300-NG | ● | 3.00 | 0.2 | 4.0 | 32.00 | 60.00 | 2.90 |
| 2P123-0400-NG | ● | 4.00 | 0.2 | 5.0 | 32.00 | 60.00 | 3.80 |
| 2P123-0500-NG | ● | 5.00 | 0.2 | 8.0 | 42.00 | 70.00 | 4.80 |
| 2P123-0600-NG | ● | 6.00 | 0.2 | 9.0 | 64.00 | 100.00 | 5.80 |
| 2P123-0800-NG | ● | 8.00 | 0.2 | 11.0 | 64.00 | 100.00 | 7.80 |
| 2P123-1000-NG | ● | 10.00 | 0.2 | 15.0 | 60.00 | 100.00 | 9.70 |
| 2P123-1200-NG | ● | 12.00 | 0.2 | 17.0 | 80.00 | 125.00 | 11.70 |
| 2P123-1600-NG | ● | 16.00 | 0.2 | 23.0 | 77.00 | 125.00 | 15.70 |
| 2P123-2000-NG | ● | 20.00 | 0.2 | 26.0 | 100.00 | 150.00 | 19.70 |
● = Первый выбор ○ = Хороший выбор
