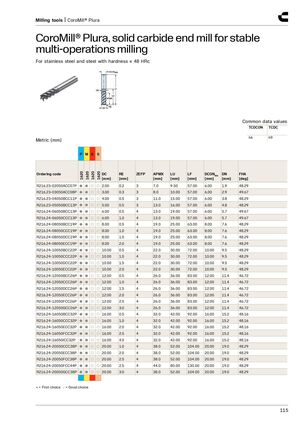

Фрезерный инструмент | CoroMill® Plura
CoroMill® Plura, концевая фреза из твёрдого сплава для стабильного многофункционального фрезерования
Для нержавеющей стали и стали твёрдостью ≤ 48 HRc.
Общие значения параметров
| TCDCON | TCDC |
|---|---|
| h6 | h9 |
Метрическая система (мм)
P M K S 1620
| Код заказа | DC [мм] | RE [мм] | ZEFP | APMX [мм] | LU [мм] | LF [мм] | DCONMS [мм] | DN [мм] | FHA [град] |
|---|---|---|---|---|---|---|---|---|---|
| R216.23-02050ACC07P ● ● ○ ○ | 2.00 | 0.2 | 3 | 7.0 | 9.50 | 57.00 | 6.00 | 1.9 | 48.29 |
| R216.23-03050ACC08P ● ● ○ ○ | 3.00 | 0.3 | 3 | 8.0 | 10.00 | 57.00 | 6.00 | 2.9 | 49.67 |
| R216.23-04050BCC11P ● ● ○ ○ | 4.00 | 0.5 | 3 | 11.0 | 15.00 | 57.00 | 6.00 | 3.8 | 48.29 |
| R216.23-05050BCC13P ● ● ○ ○ | 5.00 | 0.5 | 3 | 13.0 | 16.00 | 57.00 | 6.00 | 4.8 | 48.29 |
| R216.24-06050BCC13P ● ● ○ ○ | 6.00 | 0.5 | 4 | 13.0 | 19.00 | 57.00 | 6.00 | 5.7 | 49.67 |
| R216.24-06050CCC13P ● ● ○ ○ | 6.00 | 1.0 | 4 | 13.0 | 19.00 | 57.00 | 6.00 | 5.7 | 49.67 |
| R216.24-08050BCC19P ● ● ○ ○ | 8.00 | 0.5 | 4 | 19.0 | 25.00 | 63.00 | 8.00 | 7.6 | 48.29 |
| R216.24-08050CCC19P ● ● ○ ○ | 8.00 | 1.0 | 4 | 19.0 | 25.00 | 63.00 | 8.00 | 7.6 | 48.29 |
| R216.24-08050DCC19P ● ● ○ ○ | 8.00 | 1.5 | 4 | 19.0 | 25.00 | 63.00 | 8.00 | 7.6 | 48.29 |
| R216.24-08050ECC19P ● ● ○ ○ | 8.00 | 2.0 | 4 | 19.0 | 25.00 | 63.00 | 8.00 | 7.6 | 48.29 |
| R216.24-10050BCC22P ● ● ○ ○ | 10.00 | 0.5 | 4 | 22.0 | 30.00 | 72.00 | 10.00 | 9.5 | 48.29 |
| R216.24-10050CCC22P ● ● ○ ○ | 10.00 | 1.0 | 4 | 22.0 | 30.00 | 72.00 | 10.00 | 9.5 | 48.29 |
| R216.24-10050DCC22P ● ● ○ ○ | 10.00 | 1.5 | 4 | 22.0 | 30.00 | 72.00 | 10.00 | 9.5 | 48.29 |
| R216.24-10050ECC22P ● ● ○ ○ | 10.00 | 2.0 | 4 | 22.0 | 30.00 | 72.00 | 10.00 | 9.5 | 48.29 |
| R216.24-12050BCC26P ● ● ○ ○ | 12.00 | 0.5 | 4 | 26.0 | 36.00 | 83.00 | 12.00 | 11.4 | 46.72 |
| R216.24-12050CCC26P ● ● ○ ○ | 12.00 | 1.0 | 4 | 26.0 | 36.00 | 83.00 | 12.00 | 11.4 | 46.72 |
| R216.24-12050DCC26P ● ● ○ ○ | 12.00 | 1.5 | 4 | 26.0 | 36.00 | 83.00 | 12.00 | 11.4 | 46.72 |
| R216.24-12050ECC26P ● ● ○ ○ | 12.00 | 2.0 | 4 | 26.0 | 36.00 | 83.00 | 12.00 | 11.4 | 46.72 |
| R216.24-12050FCC26P ● ● ○ ○ | 12.00 | 2.5 | 4 | 26.0 | 36.00 | 83.00 | 12.00 | 11.4 | 46.72 |
| R216.24-12050GCC26P ● ● ○ ○ | 12.00 | 3.0 | 4 | 26.0 | 36.00 | 83.00 | 12.00 | 11.4 | 46.72 |
| R216.24-16050BCC32P ● ● ○ ○ | 16.00 | 0.5 | 4 | 32.0 | 42.00 | 92.00 | 16.00 | 15.2 | 48.16 |
| R216.24-16050CCC32P ● ● ○ ○ | 16.00 | 1.0 | 4 | 32.0 | 42.00 | 92.00 | 16.00 | 15.2 | 48.16 |
| R216.24-16050ECC32P ● ● ○ ○ | 16.00 | 2.0 | 4 | 32.0 | 42.00 | 92.00 | 16.00 | 15.2 | 48.16 |
| R216.24-16050FCC32P ● ● ○ ○ | 16.00 | 2.5 | 4 | 32.0 | 42.00 | 92.00 | 16.00 | 15.2 | 48.16 |
| R216.24-16050ICC32P ● ● ○ ○ | 16.00 | 4.0 | 4 | 32.0 | 42.00 | 92.00 | 16.00 | 15.2 | 48.16 |
| R216.24-20050CCC38P ● ● ○ ○ | 20.00 | 1.0 | 4 | 38.0 | 52.00 | 104.00 | 20.00 | 19.0 | 48.29 |
| R216.24-20050ECC38P ● ● ○ ○ | 20.00 | 2.0 | 4 | 38.0 | 52.00 | 104.00 | 20.00 | 19.0 | 48.29 |
| R216.24-20050FCC38P ● ● ○ ○ | 20.00 | 2.5 | 4 | 38.0 | 52.00 | 104.00 | 20.00 | 19.0 | 48.29 |
| R216.24-20050FCC44P ● ● ○ ○ | 20.00 | 2.5 | 4 | 44.0 | 80.00 | 130.00 | 20.00 | 19.0 | 48.29 |
| R216.24-20050GCC38P ● ● ○ ○ | 20.00 | 3.0 | 4 | 38.0 | 52.00 | 104.00 | 20.00 | 19.0 | 48.29 |
● = Первый выбор ○ = Хороший выбор
