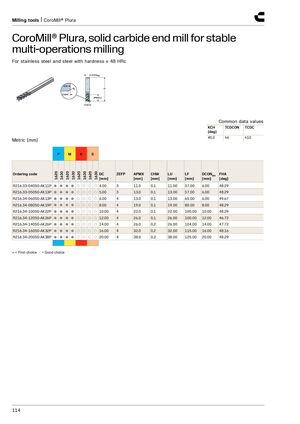

Фрезерный инструмент | CoroMill® Plura
CoroMill® Plura, концевая фреза из твёрдого сплава для стабильного многофункционального фрезерования
Для нержавеющей стали и стали твёрдостью ≤ 48 HRc.
Общие значения параметров
| KCH [град] | TCDCON | TCDC |
|---|---|---|
| 45.0 | h6 | h10 |
Метрическая система (мм)
P 1620/1630, M 1620/1630, K 1620/1630, S 1620/1630
| Код заказа | DC [мм] | ZEFP | APMX [мм] | CHW [мм] | LU [мм] | LF [мм] | DCONMS [мм] | FHA [град] |
|---|---|---|---|---|---|---|---|---|
| R216.33-04050-AK11P ● ● ● ● ○ ○ ○ ○ | 4.00 | 3 | 11.0 | 0.1 | 11.00 | 57.00 | 6.00 | 48.29 |
| R216.33-05050-AK13P ● ● ● ● ○ ○ ○ ○ | 5.00 | 3 | 13.0 | 0.1 | 13.00 | 57.00 | 6.00 | 48.29 |
| R216.34-06050-AK13P ● ● ● ● ○ ○ ○ ○ | 6.00 | 4 | 13.0 | 0.1 | 13.00 | 65.00 | 6.00 | 49.67 |
| R216.34-08050-AK19P ● ● ● ● ○ ○ ○ ○ | 8.00 | 4 | 19.0 | 0.1 | 19.00 | 80.00 | 8.00 | 48.29 |
| R216.34-10050-AK22P ● ● ● ● ○ ○ ○ ○ | 10.00 | 4 | 22.0 | 0.1 | 22.00 | 100.00 | 10.00 | 48.29 |
| R216.34-12050-AK26P ● ● ● ● ○ ○ ○ ○ | 12.00 | 4 | 26.0 | 0.1 | 26.00 | 100.00 | 12.00 | 46.72 |
| R216.34-14050-AK26P ● ● ● ● ○ ○ ○ ○ | 14.00 | 4 | 26.0 | 0.2 | 26.00 | 104.00 | 14.00 | 47.72 |
| R216.34-16050-AK32P ● ● ● ● ○ ○ ○ ○ | 16.00 | 4 | 32.0 | 0.2 | 32.00 | 115.00 | 16.00 | 48.16 |
| R216.34-20050-AK38P ● ● ● ● ○ ○ ○ ○ | 20.00 | 4 | 38.0 | 0.2 | 38.00 | 125.00 | 20.00 | 48.29 |
● = Первый выбор ○ = Хороший выбор
