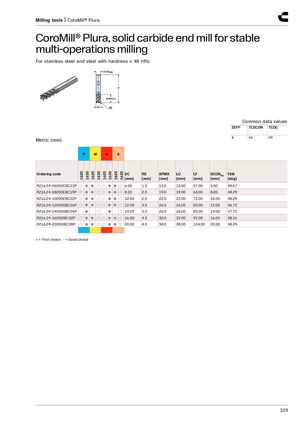

Фрезерный инструмент | CoroMill® Plura
CoroMill® Plura, концевая фреза из твёрдого сплава для стабильного многофункционального фрезерования
Для нержавеющей стали и стали твёрдостью ≤ 48 HRc.
Общие значения параметров
| ZEFP | TCDCON | TCDC |
|---|---|---|
| 4 | h6 | h9 |
Метрическая система (мм)
P 1620/1630, M 1620/1630, K 1620/1630, S 1620/1630
| Код заказа | DC [мм] | RE [мм] | APMX [мм] | LU [мм] | LF [мм] | DCONMS [мм] | FHA [град] |
|---|---|---|---|---|---|---|---|
| R216.24-06050CBC13P ○ ● ● ○ ○ ● ● ○ | 6.00 | 1.0 | 13.0 | 13.00 | 57.00 | 6.00 | 49.67 |
| R216.24-08050EBC19P ○ ● ● ○ ○ ● ● ○ | 8.00 | 2.0 | 19.0 | 19.00 | 63.00 | 8.00 | 48.29 |
| R216.24-10050EBC22P ○ ● ● ○ ○ ● ● ○ | 10.00 | 2.0 | 22.0 | 22.00 | 72.00 | 10.00 | 48.29 |
| R216.24-12050GBC26P ○ ● ● ○ ○ ● ● ○ | 12.00 | 3.0 | 26.0 | 26.00 | 83.00 | 12.00 | 46.72 |
| R216.24-14050GBC26P ● ○ ● ○ | 14.00 | 3.0 | 26.0 | 26.00 | 83.00 | 14.00 | 47.72 |
| R216.24-16050IBC32P ○ ● ● ○ ○ ● ● ○ | 16.00 | 4.0 | 32.0 | 32.00 | 92.00 | 16.00 | 48.16 |
| R216.24-20050IBC38P ○ ● ● ○ ○ ● ● ○ | 20.00 | 4.0 | 38.0 | 38.00 | 104.00 | 20.00 | 48.29 |
● = Первый выбор ○ = Хороший выбор
