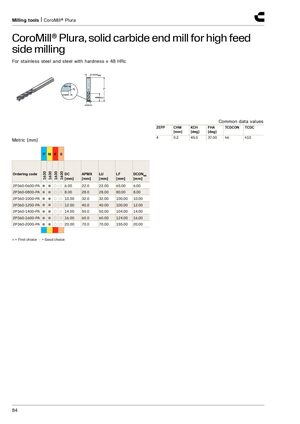

Инструменты для фрезерования | CoroMill® Plura
CoroMill® Plura, концевая фреза из цельного твёрдого сплава для бокового фрезерования с высокой подачей
Для нержавеющей стали и стали твёрдостью ≤ 48 HRc.
Общие значения данных
| ZEFP | CHW [мм] | KCH [deg] | FHA [deg] | TCDCON | TCDC |
|---|---|---|---|---|---|
| 4 | 0.2 | 45.0 | 37.00 | h6 | h10 |
Метрическая система (мм), P M K S 1630
| Код заказа | DC [мм] | APMX [мм] | LU [мм] | LF [мм] | DCONMS [мм] |
|---|---|---|---|---|---|
| 2P360-0600-PA ● ● ○ ○ | 6.00 | 22.0 | 22.00 | 65.00 | 6.00 |
| 2P360-0800-PA ● ● ○ ○ | 8.00 | 28.0 | 28.00 | 80.00 | 8.00 |
| 2P360-1000-PA ● ● ○ ○ | 10.00 | 32.0 | 32.00 | 100.00 | 10.00 |
| 2P360-1200-PA ● ● ○ ○ | 12.00 | 40.0 | 40.00 | 100.00 | 12.00 |
| 2P360-1400-PA ● ● ○ ○ | 14.00 | 50.0 | 50.00 | 104.00 | 14.00 |
| 2P360-1600-PA ● ● ○ ○ | 16.00 | 60.0 | 60.00 | 124.00 | 16.00 |
| 2P360-2000-PA ● ● ○ ○ | 20.00 | 70.0 | 70.00 | 155.00 | 20.00 |
● = Первый выбор ○ = Хороший выбор
