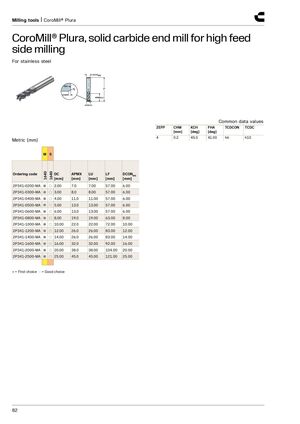

Инструменты для фрезерования | CoroMill® Plura
CoroMill® Plura, концевая фреза из цельного твёрдого сплава для бокового фрезерования с высокой подачей
Для нержавеющей стали.
Общие значения данных
| ZEFP | CHW [мм] | KCH [deg] | FHA [deg] | TCDCON | TCDC |
|---|---|---|---|---|---|
| 4 | 0.2 | 45.0 | 41.00 | h6 | h10 |
Метрическая система (мм), M S 1640
| Код заказа | DC [мм] | APMX [мм] | LU [мм] | LF [мм] | DCONMS [мм] |
|---|---|---|---|---|---|
| 2P341-0200-MA ● ○ | 2.00 | 7.0 | 7.00 | 57.00 | 6.00 |
| 2P341-0300-MA ● ○ | 3.00 | 8.0 | 8.00 | 57.00 | 6.00 |
| 2P341-0400-MA ● ○ | 4.00 | 11.0 | 11.00 | 57.00 | 6.00 |
| 2P341-0500-MA ● ○ | 5.00 | 13.0 | 13.00 | 57.00 | 6.00 |
| 2P341-0600-MA ● ○ | 6.00 | 13.0 | 13.00 | 57.00 | 6.00 |
| 2P341-0800-MA ● ○ | 8.00 | 19.0 | 19.00 | 63.00 | 8.00 |
| 2P341-1000-MA ● ○ | 10.00 | 22.0 | 22.00 | 72.00 | 10.00 |
| 2P341-1200-MA ● ○ | 12.00 | 26.0 | 26.00 | 83.00 | 12.00 |
| 2P341-1400-MA ● ○ | 14.00 | 26.0 | 26.00 | 83.00 | 14.00 |
| 2P341-1600-MA ● ○ | 16.00 | 32.0 | 32.00 | 92.00 | 16.00 |
| 2P341-2000-MA ● ○ | 20.00 | 38.0 | 38.00 | 104.00 | 20.00 |
| 2P341-2500-MA ● ○ | 25.00 | 45.0 | 45.00 | 121.00 | 25.00 |
● = Первый выбор ○ = Хороший выбор
