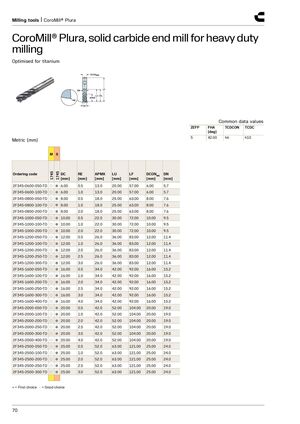

Инструмент для фрезерования | CoroMill® Plura
CoroMill® Plura, концевая фреза из твердого сплава для тяжелого фрезерования
Оптимизировано для титана.
Общие значения данных
| ZEFP | FHA [град] | TCDCON | TCDC |
|---|---|---|---|
| 5 | 42.00 | h6 | h10 |
Метрическая система (мм)
| Код заказа | M S | 1745 | DC [мм] | RE [мм] | APMX [мм] | LU [мм] | LF [мм] | DCONMS [мм] | DN [мм] |
|---|---|---|---|---|---|---|---|---|---|
| 2F345-0600-050-TD | ○ | ● | 6.00 | 0.5 | 13.0 | 20.00 | 57.00 | 6.00 | 5.7 |
| 2F345-0600-100-TD | ○ | ● | 6.00 | 1.0 | 13.0 | 20.00 | 57.00 | 6.00 | 5.7 |
| 2F345-0800-050-TD | ○ | ● | 8.00 | 0.5 | 18.0 | 25.00 | 63.00 | 8.00 | 7.6 |
| 2F345-0800-100-TD | ○ | ● | 8.00 | 1.0 | 18.0 | 25.00 | 63.00 | 8.00 | 7.6 |
| 2F345-0800-200-TD | ○ | ● | 8.00 | 2.0 | 18.0 | 25.00 | 63.00 | 8.00 | 7.6 |
| 2F345-1000-050-TD | ○ | ● | 10.00 | 0.5 | 22.0 | 30.00 | 72.00 | 10.00 | 9.5 |
| 2F345-1000-100-TD | ○ | ● | 10.00 | 1.0 | 22.0 | 30.00 | 72.00 | 10.00 | 9.5 |
| 2F345-1000-200-TD | ○ | ● | 10.00 | 2.0 | 22.0 | 30.00 | 72.00 | 10.00 | 9.5 |
| 2F345-1200-050-TD | ○ | ● | 12.00 | 0.5 | 26.0 | 36.00 | 83.00 | 12.00 | 11.4 |
| 2F345-1200-100-TD | ○ | ● | 12.00 | 1.0 | 26.0 | 36.00 | 83.00 | 12.00 | 11.4 |
| 2F345-1200-200-TD | ○ | ● | 12.00 | 2.0 | 26.0 | 36.00 | 83.00 | 12.00 | 11.4 |
| 2F345-1200-250-TD | ○ | ● | 12.00 | 2.5 | 26.0 | 36.00 | 83.00 | 12.00 | 11.4 |
| 2F345-1200-300-TD | ○ | ● | 12.00 | 3.0 | 26.0 | 36.00 | 83.00 | 12.00 | 11.4 |
| 2F345-1600-050-TD | ○ | ● | 16.00 | 0.5 | 34.0 | 42.00 | 92.00 | 16.00 | 15.2 |
| 2F345-1600-100-TD | ○ | ● | 16.00 | 1.0 | 34.0 | 42.00 | 92.00 | 16.00 | 15.2 |
| 2F345-1600-200-TD | ○ | ● | 16.00 | 2.0 | 34.0 | 42.00 | 92.00 | 16.00 | 15.2 |
| 2F345-1600-250-TD | ○ | ● | 16.00 | 2.5 | 34.0 | 42.00 | 92.00 | 16.00 | 15.2 |
| 2F345-1600-300-TD | ○ | ● | 16.00 | 3.0 | 34.0 | 42.00 | 92.00 | 16.00 | 15.2 |
| 2F345-1600-400-TD | ○ | ● | 16.00 | 4.0 | 34.0 | 42.00 | 92.00 | 16.00 | 15.2 |
| 2F345-2000-050-TD | ○ | ● | 20.00 | 0.5 | 42.0 | 52.00 | 104.00 | 20.00 | 19.0 |
| 2F345-2000-100-TD | ○ | ● | 20.00 | 1.0 | 42.0 | 52.00 | 104.00 | 20.00 | 19.0 |
| 2F345-2000-200-TD | ○ | ● | 20.00 | 2.0 | 42.0 | 52.00 | 104.00 | 20.00 | 19.0 |
| 2F345-2000-250-TD | ○ | ● | 20.00 | 2.5 | 42.0 | 52.00 | 104.00 | 20.00 | 19.0 |
| 2F345-2000-300-TD | ○ | ● | 20.00 | 3.0 | 42.0 | 52.00 | 104.00 | 20.00 | 19.0 |
| 2F345-2000-400-TD | ○ | ● | 20.00 | 4.0 | 42.0 | 52.00 | 104.00 | 20.00 | 19.0 |
| 2F345-2500-050-TD | ○ | ● | 25.00 | 0.5 | 52.0 | 63.00 | 121.00 | 25.00 | 24.0 |
| 2F345-2500-100-TD | ○ | ● | 25.00 | 1.0 | 52.0 | 63.00 | 121.00 | 25.00 | 24.0 |
| 2F345-2500-200-TD | ○ | ● | 25.00 | 2.0 | 52.0 | 63.00 | 121.00 | 25.00 | 24.0 |
| 2F345-2500-250-TD | ○ | ● | 25.00 | 2.5 | 52.0 | 63.00 | 121.00 | 25.00 | 24.0 |
| 2F345-2500-300-TD | ○ | ● | 25.00 | 3.0 | 52.0 | 63.00 | 121.00 | 25.00 | 24.0 |
● = Предпочтительный выбор ○ = Хороший выбор
