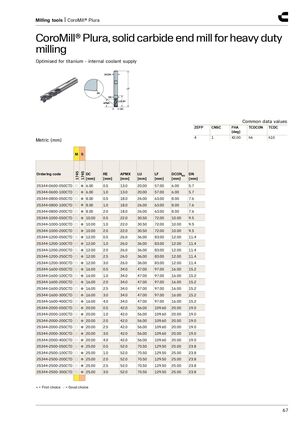

Инструмент для фрезерования | CoroMill® Plura
CoroMill® Plura, концевая фреза из твердого сплава для тяжелого фрезерования
Оптимизировано для титана - внутренняя подача СОЖ.
Общие значения данных
| ZEFP | CNSC | FHA [град] | TCDCON | TCDC |
|---|---|---|---|---|
| 4 | 1 | 42.00 | h6 | h10 |
Метрическая система (мм)
| Код заказа | M S | 1745 | DC [мм] | RE [мм] | APMX [мм] | LU [мм] | LF [мм] | DCONMS [мм] | DN [мм] |
|---|---|---|---|---|---|---|---|---|---|
| 2S344-0600-050CTD | ○ | ● | 6.00 | 0.5 | 13.0 | 20.00 | 57.00 | 6.00 | 5.7 |
| 2S344-0600-100CTD | ○ | ● | 6.00 | 1.0 | 13.0 | 20.00 | 57.00 | 6.00 | 5.7 |
| 2S344-0800-050CTD | ○ | ● | 8.00 | 0.5 | 18.0 | 26.00 | 63.00 | 8.00 | 7.6 |
| 2S344-0800-100CTD | ○ | ● | 8.00 | 1.0 | 18.0 | 26.00 | 63.00 | 8.00 | 7.6 |
| 2S344-0800-200CTD | ○ | ● | 8.00 | 2.0 | 18.0 | 26.00 | 63.00 | 8.00 | 7.6 |
| 2S344-1000-050CTD | ○ | ● | 10.00 | 0.5 | 22.0 | 30.50 | 72.00 | 10.00 | 9.5 |
| 2S344-1000-100CTD | ○ | ● | 10.00 | 1.0 | 22.0 | 30.50 | 72.00 | 10.00 | 9.5 |
| 2S344-1000-200CTD | ○ | ● | 10.00 | 2.0 | 22.0 | 30.50 | 72.00 | 10.00 | 9.5 |
| 2S344-1200-050CTD | ○ | ● | 12.00 | 0.5 | 26.0 | 36.00 | 83.00 | 12.00 | 11.4 |
| 2S344-1200-100CTD | ○ | ● | 12.00 | 1.0 | 26.0 | 36.00 | 83.00 | 12.00 | 11.4 |
| 2S344-1200-200CTD | ○ | ● | 12.00 | 2.0 | 26.0 | 36.00 | 83.00 | 12.00 | 11.4 |
| 2S344-1200-250CTD | ○ | ● | 12.00 | 2.5 | 26.0 | 36.00 | 83.00 | 12.00 | 11.4 |
| 2S344-1200-300CTD | ○ | ● | 12.00 | 3.0 | 26.0 | 36.00 | 83.00 | 12.00 | 11.4 |
| 2S344-1600-050CTD | ○ | ● | 16.00 | 0.5 | 34.0 | 47.00 | 97.00 | 16.00 | 15.2 |
| 2S344-1600-100CTD | ○ | ● | 16.00 | 1.0 | 34.0 | 47.00 | 97.00 | 16.00 | 15.2 |
| 2S344-1600-200CTD | ○ | ● | 16.00 | 2.0 | 34.0 | 47.00 | 97.00 | 16.00 | 15.2 |
| 2S344-1600-250CTD | ○ | ● | 16.00 | 2.5 | 34.0 | 47.00 | 97.00 | 16.00 | 15.2 |
| 2S344-1600-300CTD | ○ | ● | 16.00 | 3.0 | 34.0 | 47.00 | 97.00 | 16.00 | 15.2 |
| 2S344-1600-400CTD | ○ | ● | 16.00 | 4.0 | 34.0 | 47.00 | 97.00 | 16.00 | 15.2 |
| 2S344-2000-050CTD | ○ | ● | 20.00 | 0.5 | 42.0 | 56.00 | 109.60 | 20.00 | 19.0 |
| 2S344-2000-100CTD | ○ | ● | 20.00 | 1.0 | 42.0 | 56.00 | 109.60 | 20.00 | 19.0 |
| 2S344-2000-200CTD | ○ | ● | 20.00 | 2.0 | 42.0 | 56.00 | 109.60 | 20.00 | 19.0 |
| 2S344-2000-250CTD | ○ | ● | 20.00 | 2.5 | 42.0 | 56.00 | 109.60 | 20.00 | 19.0 |
| 2S344-2000-300CTD | ○ | ● | 20.00 | 3.0 | 42.0 | 56.00 | 109.60 | 20.00 | 19.0 |
| 2S344-2000-400CTD | ○ | ● | 20.00 | 4.0 | 42.0 | 56.00 | 109.60 | 20.00 | 19.0 |
| 2S344-2500-050CTD | ○ | ● | 25.00 | 0.5 | 52.0 | 70.50 | 129.50 | 25.00 | 23.8 |
| 2S344-2500-100CTD | ○ | ● | 25.00 | 1.0 | 52.0 | 70.50 | 129.50 | 25.00 | 23.8 |
| 2S344-2500-200CTD | ○ | ● | 25.00 | 2.0 | 52.0 | 70.50 | 129.50 | 25.00 | 23.8 |
| 2S344-2500-250CTD | ○ | ● | 25.00 | 2.5 | 52.0 | 70.50 | 129.50 | 25.00 | 23.8 |
| 2S344-2500-300CTD | ○ | ● | 25.00 | 3.0 | 52.0 | 70.50 | 129.50 | 25.00 | 23.8 |
● = Предпочтительный выбор ○ = Хороший выбор
