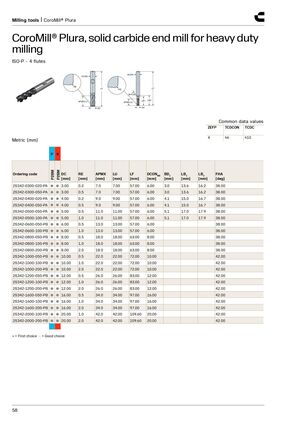

Инструмент для фрезерования | CoroMill® Plura
CoroMill® Plura, концевая фреза из твердого сплава для тяжелого фрезерования
ISO-P - 4 зубца
Общие значения данных
| ZEFP | TCDCON | TCDC |
|---|---|---|
| 4 | h6 | h10 |
Метрическая система (мм)
| Код заказа | P K | P2BM | DC [мм] | RE [мм] | APMX [мм] | LU [мм] | LF [мм] | DCONMS [мм] | BD1_ [мм] | LB1_ [мм] | LB2_ [мм] | FHA [град] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2S342-0300-020-PA | ● | ● | 3.00 | 0.2 | 7.0 | 7.00 | 57.00 | 6.00 | 3.0 | 13.6 | 16.2 | 38.00 |
| 2S342-0300-050-PA | ● | ● | 3.00 | 0.5 | 7.0 | 7.00 | 57.00 | 6.00 | 3.0 | 13.6 | 16.2 | 38.00 |
| 2S342-0400-020-PA | ● | ● | 4.00 | 0.2 | 9.0 | 9.00 | 57.00 | 6.00 | 4.1 | 15.0 | 16.7 | 38.00 |
| 2S342-0400-050-PA | ● | ● | 4.00 | 0.5 | 9.0 | 9.00 | 57.00 | 6.00 | 4.1 | 15.0 | 16.7 | 38.00 |
| 2S342-0500-050-PA | ● | ● | 5.00 | 0.5 | 11.0 | 11.00 | 57.00 | 6.00 | 5.1 | 17.0 | 17.9 | 38.00 |
| 2S342-0500-100-PA | ● | ● | 5.00 | 1.0 | 11.0 | 11.00 | 57.00 | 6.00 | 5.1 | 17.0 | 17.9 | 38.00 |
| 2S342-0600-050-PB | ● | ● | 6.00 | 0.5 | 13.0 | 13.00 | 57.00 | 6.00 | 38.00 | |||
| 2S342-0600-100-PB | ● | ● | 6.00 | 1.0 | 13.0 | 13.00 | 57.00 | 6.00 | 38.00 | |||
| 2S342-0800-050-PB | ● | ● | 8.00 | 0.5 | 18.0 | 18.00 | 63.00 | 8.00 | 38.00 | |||
| 2S342-0800-100-PB | ● | ● | 8.00 | 1.0 | 18.0 | 18.00 | 63.00 | 8.00 | 38.00 | |||
| 2S342-0800-200-PB | ● | ● | 8.00 | 2.0 | 18.0 | 18.00 | 63.00 | 8.00 | 38.00 | |||
| 2S342-1000-050-PB | ● | ● | 10.00 | 0.5 | 22.0 | 22.00 | 72.00 | 10.00 | 42.00 | |||
| 2S342-1000-100-PB | ● | ● | 10.00 | 1.0 | 22.0 | 22.00 | 72.00 | 10.00 | 42.00 | |||
| 2S342-1000-200-PB | ● | ● | 10.00 | 2.0 | 22.0 | 22.00 | 72.00 | 10.00 | 42.00 | |||
| 2S342-1200-050-PB | ● | ● | 12.00 | 0.5 | 26.0 | 26.00 | 83.00 | 12.00 | 42.00 | |||
| 2S342-1200-100-PB | ● | ● | 12.00 | 1.0 | 26.0 | 26.00 | 83.00 | 12.00 | 42.00 | |||
| 2S342-1200-200-PB | ● | ● | 12.00 | 2.0 | 26.0 | 26.00 | 83.00 | 12.00 | 42.00 | |||
| 2S342-1600-050-PB | ● | ● | 16.00 | 0.5 | 34.0 | 34.00 | 97.00 | 16.00 | 42.00 | |||
| 2S342-1600-100-PB | ● | ● | 16.00 | 1.0 | 34.0 | 34.00 | 97.00 | 16.00 | 42.00 | |||
| 2S342-1600-200-PB | ● | ● | 16.00 | 2.0 | 34.0 | 34.00 | 97.00 | 16.00 | 42.00 | |||
| 2S342-2000-100-PB | ● | ● | 20.00 | 1.0 | 42.0 | 42.00 | 109.60 | 20.00 | 42.00 | |||
| 2S342-2000-200-PB | ● | ● | 20.00 | 2.0 | 42.0 | 42.00 | 109.60 | 20.00 | 42.00 |
● = Предпочтительный выбор ○ = Хороший выбор
