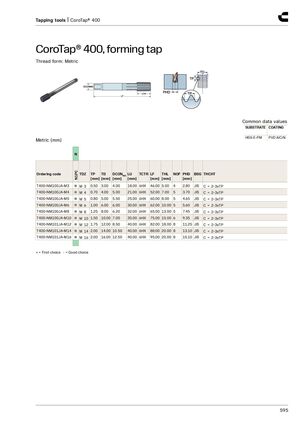

Инструменты для нарезания резьбы | CoroTap® 400
CoroTap® 400, формообразующий метчик
Форма резьбы: метрическая
Общие значения
| SUBSTRATE | COATING |
|---|---|
| HSS-E-PM | PVD AlCrN |
Метрическая (мм)
| Ordering code | N | DCONMS | TDZ [mm] | TP [mm] | TD [mm] | LU [mm] | TCTR | LF [mm] | THL [mm] | NOF | PHD [mm] | BSG | THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T400-NM100JA-M3 | ● | M 3 | 0.50 | 3.00 | 4.00 | 18.00 | 6HX | 46.00 | 5.00 | 4 | 2.80 | JIS | C = 2-3xTP |
| T400-NM100JA-M4 | ● | M 4 | 0.70 | 4.00 | 5.00 | 21.00 | 6HX | 52.00 | 7.00 | 5 | 3.70 | JIS | C = 2-3xTP |
| T400-NM100JA-M5 | ● | M 5 | 0.80 | 5.00 | 5.50 | 25.00 | 6HX | 60.00 | 8.00 | 5 | 4.65 | JIS | C = 2-3xTP |
| T400-NM100JA-M6 | ● | M 6 | 1.00 | 6.00 | 6.00 | 30.00 | 6HX | 62.00 | 10.00 | 5 | 5.60 | JIS | C = 2-3xTP |
| T400-NM100JA-M8 | ● | M 8 | 1.25 | 8.00 | 6.20 | 32.00 | 6HX | 65.00 | 13.00 | 5 | 7.45 | JIS | C = 2-3xTP |
| T400-NM100JA-M10 | ● | M 10 | 1.50 | 10.00 | 7.00 | 35.00 | 6HX | 75.00 | 15.00 | 6 | 9.35 | JIS | C = 2-3xTP |
| T400-NM101JA-M12 | ● | M 12 | 1.75 | 12.00 | 8.50 | 40.00 | 6HX | 82.00 | 18.00 | 8 | 11.25 | JIS | C = 2-3xTP |
| T400-NM101JA-M14 | ● | M 14 | 2.00 | 14.00 | 10.50 | 40.00 | 6HX | 88.00 | 20.00 | 8 | 13.10 | JIS | C = 2-3xTP |
| T400-NM101JA-M16 | ● | M 16 | 2.00 | 16.00 | 12.50 | 40.00 | 6HX | 95.00 | 20.00 | 8 | 15.10 | JIS | C = 2-3xTP |
● = Первый выбор ○ = Хороший выбор
