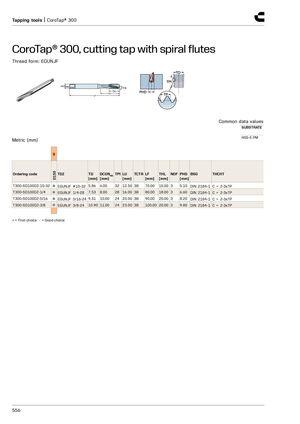

Инструменты для нарезания резьбы | CoroTap® 300
CoroTap® 300, метчик машинный с винтовыми канавками
Форма резьбы: EGUNJF
Общие данные: Материал HSS-E-PM
| Код заказа | Резьба | TDZ | TD | DCONMS | TPI | LU | TCTR | LF | THL | NOF | PHD | Стандарт | BSG / THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T300-SD100DZ-10-32 | EGUNJF #10-32 | 5.86 | 6.00 | 32 | 12.50 | 3B | 70.00 | 15.00 | 3 | 5.10 | DIN 2184-1 | C = 2-3xTP | |
| T300-SD100DZ-1/4 | EGUNJF 1/4-28 | 7.53 | 8.00 | 28 | 16.00 | 3B | 80.00 | 18.00 | 3 | 6.60 | DIN 2184-1 | C = 2-3xTP | |
| T300-SD100DZ-5/16 | EGUNJF 5/16-24 | 9.31 | 10.00 | 24 | 20.00 | 3B | 90.00 | 20.00 | 3 | 8.20 | DIN 2184-1 | C = 2-3xTP | |
| T300-SD100DZ-3/8 | EGUNJF 3/8-24 | 10.90 | 11.00 | 24 | 23.00 | 3B | 100.00 | 20.00 | 3 | 9.80 | DIN 2184-1 | C = 2-3xTP |
● = Первый выбор, ○ = Хороший выбор
