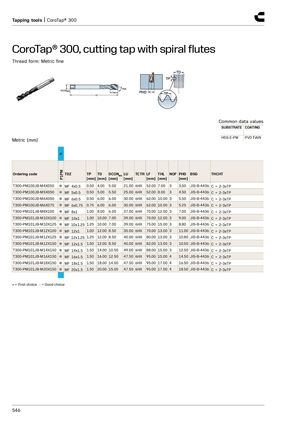

Инструменты для нарезания резьбы | CoroTap® 300
CoroTap® 300, метчик машинный с винтовыми канавками
Форма резьбы: Метрическая мелкая
Общие данные: Материал HSS-E-PM, покрытие PVD TiAlN
| Код заказа | Резьба | TP | TD | DCONMS | LU | TCTR | LF | THL | NOF | PHD | Стандарт | BSG / THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T300-PM100JB-M4X050 | MF 4x0.5 | 0.50 | 4.00 | 5.00 | 21.00 | 6HX | 52.00 | 7.00 | 3 | 3.50 | JIS-B-4436 | C = 2-3xTP |
| T300-PM100JB-M5X050 | MF 5x0.5 | 0.50 | 5.00 | 5.50 | 25.00 | 6HX | 52.00 | 8.00 | 3 | 4.50 | JIS-B-4436 | C = 2-3xTP |
| T300-PM100JB-M6X050 | MF 6x0.5 | 0.50 | 6.00 | 6.00 | 30.00 | 6HX | 62.00 | 10.00 | 3 | 5.50 | JIS-B-4436 | C = 2-3xTP |
| T300-PM100JB-M6X075 | MF 6x0.75 | 0.75 | 6.00 | 6.00 | 30.00 | 6HX | 62.00 | 10.00 | 3 | 5.25 | JIS-B-4436 | C = 2-3xTP |
| T300-PM101JB-M8X100 | MF 8x1 | 1.00 | 8.00 | 6.20 | 37.00 | 6HX | 70.00 | 12.00 | 3 | 7.00 | JIS-B-4436 | C = 2-3xTP |
| T300-PM101JB-M10X100 | MF 10x1 | 1.00 | 10.00 | 7.00 | 39.00 | 6HX | 70.00 | 12.00 | 3 | 9.00 | JIS-B-4436 | C = 2-3xTP |
| T300-PM101JB-M10X125 | MF 10x1.25 | 1.25 | 10.00 | 7.00 | 39.00 | 6HX | 75.00 | 15.00 | 3 | 8.80 | JIS-B-4436 | C = 2-3xTP |
| T300-PM101JB-M12X100 | MF 12x1 | 1.00 | 12.00 | 8.50 | 35.00 | 6HX | 70.00 | 13.00 | 3 | 11.00 | JIS-B-4436 | C = 2-3xTP |
| T300-PM101JB-M12X125 | MF 12x1.25 | 1.25 | 12.00 | 8.50 | 40.00 | 6HX | 80.00 | 13.00 | 3 | 10.80 | JIS-B-4436 | C = 2-3xTP |
| T300-PM101JB-M12X150 | MF 12x1.5 | 1.50 | 12.00 | 8.50 | 40.00 | 6HX | 82.00 | 13.00 | 3 | 10.50 | JIS-B-4436 | C = 2-3xTP |
| T300-PM101JB-M14X150 | MF 14x1.5 | 1.50 | 14.00 | 10.50 | 49.00 | 6HX | 88.00 | 15.00 | 3 | 12.50 | JIS-B-4436 | C = 2-3xTP |
| T300-PM101JB-M16X150 | MF 16x1.5 | 1.50 | 16.00 | 12.50 | 47.50 | 6HX | 95.00 | 15.00 | 4 | 14.50 | JIS-B-4436 | C = 2-3xTP |
| T300-PM101JB-M18X150 | MF 18x1.5 | 1.50 | 18.00 | 14.00 | 47.50 | 6HX | 95.00 | 17.00 | 4 | 16.50 | JIS-B-4436 | C = 2-3xTP |
| T300-PM101JB-M20X150 | MF 20x1.5 | 1.50 | 20.00 | 15.00 | 47.50 | 6HX | 95.00 | 17.00 | 4 | 18.50 | JIS-B-4436 | C = 2-3xTP |
● = Первый выбор, ○ = Хороший выбор
