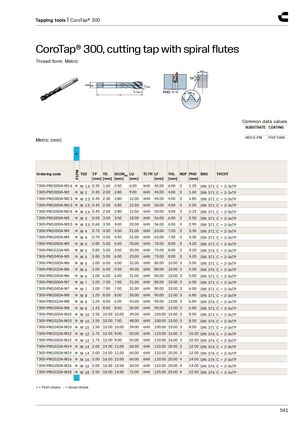

CoroTap® 300, метчик машинный со спиральными канавками
Форма резьбы: метрическая
| Параметр | Значение |
|---|---|
| Материал основы | HSS-E-PM |
| Покрытие | PVD TiAlN |
| Код заказа | Выбор | Резьба (TDZ) | TP [мм] | TD [мм] | DCONMS [мм] | LU [мм] | TCTR | LF [мм] | THL [мм] | NOF | PHD [мм] | BSG | THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T300-PM100DA-M1.6 | ● | M 1.6 | 0.35 | 1.60 | 2.50 | 6.00 | 6HX | 40.00 | 6.00 | 2 | 1.25 | DIN 371 | C = 2-3xTP |
| T300-PM100DA-M2 | ● | M 2 | 0.40 | 2.00 | 2.80 | 9.00 | 6HX | 45.00 | 4.00 | 3 | 1.60 | DIN 371 | C = 2-3xTP |
| T300-PM100DA-M2.3 | ● | M 2.3 | 0.40 | 2.30 | 2.80 | 12.00 | 6HX | 45.00 | 4.00 | 3 | 1.85 | DIN 371 | C = 2-3xTP |
| T300-PM100DA-M2.5 | ● | M 2.5 | 0.45 | 2.50 | 2.80 | 12.50 | 6HX | 50.00 | 4.00 | 3 | 2.05 | DIN 371 | C = 2-3xTP |
| T300-PM100DA-M2.6 | ● | M 2.6 | 0.45 | 2.60 | 2.80 | 12.50 | 6HX | 50.00 | 4.00 | 3 | 2.15 | DIN 371 | C = 2-3xTP |
| T300-PM100DA-M3 | ● | M 3 | 0.50 | 3.00 | 3.50 | 18.00 | 6HX | 56.00 | 6.00 | 3 | 2.50 | DIN 371 | C = 2-3xTP |
| T300-PM100DA-M3.5 | ● | M 3.5 | 0.60 | 3.50 | 4.00 | 20.00 | 6HX | 56.00 | 6.50 | 3 | 2.90 | DIN 371 | C = 2-3xTP |
| T300-PM100DA-M4 | ● | M 4 | 0.70 | 4.00 | 4.50 | 21.00 | 6HX | 63.00 | 7.00 | 3 | 3.30 | DIN 371 | C = 2-3xTP |
| T300-PM104DA-M4 | ● | M 4 | 0.70 | 4.00 | 4.50 | 21.00 | 6HX | 63.00 | 7.00 | 3 | 3.30 | DIN 371 | C = 2-3xTP |
| T300-PM100DA-M5 | ● | M 5 | 0.80 | 5.00 | 6.00 | 25.00 | 6HX | 70.00 | 8.00 | 3 | 4.20 | DIN 371 | C = 2-3xTP |
| T300-PM101DA-M5 | ● | M 5 | 0.80 | 5.00 | 3.50 | 35.00 | 6HX | 70.00 | 8.00 | 3 | 4.20 | DIN 376 | C = 2-3xTP |
| T300-PM104DA-M5 | ● | M 5 | 0.80 | 5.00 | 6.00 | 25.00 | 6HX | 70.00 | 8.00 | 3 | 4.20 | DIN 371 | C = 2-3xTP |
| T300-PM100DA-M6 | ● | M 6 | 1.00 | 6.00 | 6.00 | 31.00 | 6HX | 80.00 | 10.00 | 3 | 5.00 | DIN 371 | C = 2-3xTP |
| T300-PM101DA-M6 | ● | M 6 | 1.00 | 6.00 | 4.50 | 40.00 | 6HX | 80.00 | 10.00 | 3 | 5.00 | DIN 376 | C = 2-3xTP |
| T300-PM104DA-M6 | ● | M 6 | 1.00 | 6.00 | 6.00 | 31.00 | 6HX | 80.00 | 10.00 | 3 | 5.00 | DIN 371 | C = 2-3xTP |
| T300-PM100DA-M7 | ● | M 7 | 1.00 | 7.00 | 7.00 | 31.00 | 6HX | 80.00 | 10.00 | 3 | 6.00 | DIN 371 | C = 2-3xTP |
| T300-PM104DA-M7 | ● | M 7 | 1.00 | 7.00 | 7.00 | 31.00 | 6HX | 80.00 | 10.00 | 3 | 6.00 | DIN 371 | C = 2-3xTP |
| T300-PM100DA-M8 | ● | M 8 | 1.25 | 8.00 | 8.00 | 35.00 | 6HX | 90.00 | 12.00 | 3 | 6.80 | DIN 371 | C = 2-3xTP |
| T300-PM101DA-M8 | ● | M 8 | 1.25 | 8.00 | 6.00 | 43.00 | 6HX | 90.00 | 13.00 | 3 | 6.80 | DIN 376 | C = 2-3xTP |
| T300-PM104DA-M8 | ● | M 8 | 1.25 | 8.00 | 8.00 | 35.00 | 6HX | 90.00 | 12.00 | 3 | 6.80 | DIN 371 | C = 2-3xTP |
| T300-PM100DA-M10 | ● | M 10 | 1.50 | 10.00 | 10.00 | 39.00 | 6HX | 100.00 | 15.00 | 3 | 8.50 | DIN 371 | C = 2-3xTP |
| T300-PM101DA-M10 | ● | M 10 | 1.50 | 10.00 | 7.00 | 48.00 | 6HX | 100.00 | 15.00 | 3 | 8.50 | DIN 376 | C = 2-3xTP |
| T300-PM104DA-M10 | ● | M 10 | 1.50 | 10.00 | 10.00 | 39.00 | 6HX | 100.00 | 15.00 | 3 | 8.50 | DIN 371 | C = 2-3xTP |
| T300-PM101DA-M12 | ● | M 12 | 1.75 | 12.00 | 9.00 | 55.00 | 6HX | 110.00 | 16.00 | 3 | 10.20 | DIN 376 | C = 2-3xTP |
| T300-PM105DA-M12 | ● | M 12 | 1.75 | 12.00 | 9.00 | 55.00 | 6HX | 110.00 | 16.00 | 3 | 10.20 | DIN 376 | C = 2-3xTP |
| T300-PM101DA-M14 | ● | M 14 | 2.00 | 14.00 | 11.00 | 60.00 | 6HX | 110.00 | 20.00 | 3 | 12.00 | DIN 376 | C = 2-3xTP |
| T300-PM105DA-M14 | ● | M 14 | 2.00 | 14.00 | 11.00 | 60.00 | 6HX | 110.00 | 20.00 | 3 | 12.00 | DIN 376 | C = 2-3xTP |
| T300-PM101DA-M16 | ● | M 16 | 2.00 | 16.00 | 12.00 | 60.00 | 6HX | 110.00 | 20.00 | 4 | 14.00 | DIN 376 | C = 2-3xTP |
| T300-PM105DA-M16 | ● | M 16 | 2.00 | 16.00 | 12.00 | 60.00 | 6HX | 110.00 | 20.00 | 4 | 14.00 | DIN 376 | C = 2-3xTP |
| T300-PM101DA-M18 | ● | M 18 | 2.50 | 18.00 | 14.00 | 72.00 | 6HX | 125.00 | 25.00 | 4 | 15.50 | DIN 376 | C = 2-3xTP |
● = Первый выбор ○ = Хороший выбор
