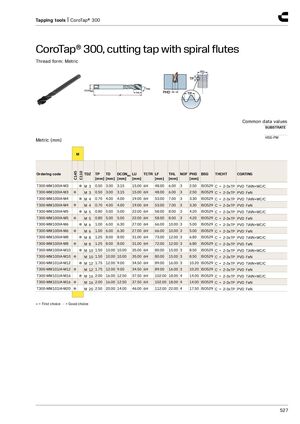

CoroTap® 300, метчик машинный со спиральными канавками
Форма резьбы: метрическая
| Параметр | Значение |
|---|---|
| Материал основы | HSS-PM |
| Код заказа | Выбор | Резьба (TDZ) | TP [мм] | TD [мм] | DCONMS [мм] | LU [мм] | TCTR | LF [мм] | THL [мм] | NOF | PHD [мм] | BSG | THCHT | Покрытие |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T300-MM100IA-M3 | ● | M 3 | 0.50 | 3.00 | 3.15 | 15.00 | 6H | 48.00 | 6.00 | 3 | 2.50 | ISO529 | C = 2-3xTP | PVD TiAlN+WC/C |
| T300-MM100IA-M3 | ● | M 3 | 0.50 | 3.00 | 3.15 | 15.00 | 6H | 48.00 | 6.00 | 3 | 2.50 | ISO529 | C = 2-3xTP | PVD FeN |
| T300-MM100IA-M4 | ● | M 4 | 0.70 | 4.00 | 4.00 | 19.00 | 6H | 53.00 | 7.00 | 3 | 3.30 | ISO529 | C = 2-3xTP | PVD TiAlN+WC/C |
| T300-MM100IA-M4 | ● | M 4 | 0.70 | 4.00 | 4.00 | 19.00 | 6H | 53.00 | 7.00 | 3 | 3.30 | ISO529 | C = 2-3xTP | PVD FeN |
| T300-MM100IA-M5 | ● | M 5 | 0.80 | 5.00 | 5.00 | 22.00 | 6H | 58.00 | 8.00 | 3 | 4.20 | ISO529 | C = 2-3xTP | PVD TiAlN+WC/C |
| T300-MM100IA-M5 | ● | M 5 | 0.80 | 5.00 | 5.00 | 22.00 | 6H | 58.00 | 8.00 | 3 | 4.20 | ISO529 | C = 2-3xTP | PVD FeN |
| T300-MM100IA-M6 | ● | M 6 | 1.00 | 6.00 | 6.30 | 27.00 | 6H | 66.00 | 10.00 | 3 | 5.00 | ISO529 | C = 2-3xTP | PVD TiAlN+WC/C |
| T300-MM100IA-M6 | ● | M 6 | 1.00 | 6.00 | 6.30 | 27.00 | 6H | 66.00 | 10.00 | 3 | 5.00 | ISO529 | C = 2-3xTP | PVD FeN |
| T300-MM100IA-M8 | ● | M 8 | 1.25 | 8.00 | 8.00 | 31.00 | 6H | 73.00 | 12.00 | 3 | 6.80 | ISO529 | C = 2-3xTP | PVD TiAlN+WC/C |
| T300-MM100IA-M8 | ● | M 8 | 1.25 | 8.00 | 8.00 | 31.00 | 6H | 72.00 | 12.00 | 3 | 6.80 | ISO529 | C = 2-3xTP | PVD FeN |
| T300-MM100IA-M10 | ● | M 10 | 1.50 | 10.00 | 10.00 | 35.00 | 6H | 80.00 | 15.00 | 3 | 8.50 | ISO529 | C = 2-3xTP | PVD TiAlN+WC/C |
| T300-MM100IA-M10 | ● | M 10 | 1.50 | 10.00 | 10.00 | 35.00 | 6H | 80.00 | 15.00 | 3 | 8.50 | ISO529 | C = 2-3xTP | PVD FeN |
| T300-MM101IA-M12 | ● | M 12 | 1.75 | 12.00 | 9.00 | 34.50 | 6H | 89.00 | 16.00 | 3 | 10.20 | ISO529 | C = 2-3xTP | PVD TiAlN+WC/C |
| T300-MM101IA-M12 | ● | M 12 | 1.75 | 12.00 | 9.00 | 34.50 | 6H | 89.00 | 16.00 | 3 | 10.20 | ISO529 | C = 2-3xTP | PVD FeN |
| T300-MM101IA-M16 | ● | M 16 | 2.00 | 16.00 | 12.50 | 37.50 | 6H | 102.00 | 18.00 | 4 | 14.00 | ISO529 | C = 2-3xTP | PVD TiAlN+WC/C |
| T300-MM101IA-M16 | ● | M 16 | 2.00 | 16.00 | 12.50 | 37.50 | 6H | 102.00 | 18.00 | 4 | 14.00 | ISO529 | C = 2-3xTP | PVD FeN |
| T300-MM101IA-M20 | ● | M 20 | 2.50 | 20.00 | 14.00 | 46.00 | 6H | 112.00 | 22.00 | 4 | 17.50 | ISO529 | C = 2-3xTP | PVD FeN |
● = Первый выбор ○ = Хороший выбор
