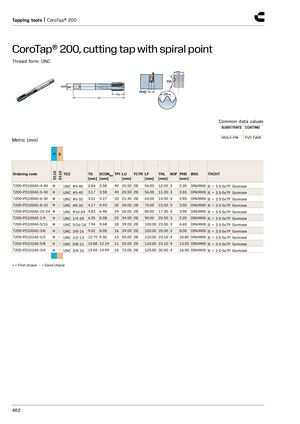

Инструменты для нарезания резьбы | CoroTap® 200
CoroTap® 200, машинный метчик со спиральной канавкой
Профиль резьбы: UNC
Общие параметры: ОСНОВА — HSS-E-PM, Покрытие — PVD TiAlN
Метрическая (мм): P, S, D110
| Код заказа | Выбор | Резьба | TDZ [мм] | TD [мм] | TPI | LU [мм] | TCTR | LF [мм] | THL [мм] | NOF | PHD [мм] | BSG | THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T200-PD100AE-4-40 | ● ○ | UNC #4-40 | 2.84 | 3.58 | 40 | 20.50 | 2B | 56.00 | 12.00 | 3 | 2.35 | DIN/ANSI | B = 3.5-5xTP Gunnose |
| T200-PD100AE-5-40 | ● ○ | UNC #5-40 | 3.17 | 3.58 | 40 | 20.50 | 2B | 56.00 | 11.00 | 3 | 2.65 | DIN/ANSI | B = 3.5-5xTP Gunnose |
| T200-PD100AE-6-32 | ● ○ | UNC #6-32 | 3.51 | 4.27 | 32 | 21.40 | 2B | 63.00 | 14.00 | 3 | 2.85 | DIN/ANSI | B = 3.5-5xTP Gunnose |
| T200-PD100AE-8-32 | ● ○ | UNC #8-32 | 4.17 | 4.93 | 32 | 28.00 | 2B | 70.00 | 15.50 | 3 | 3.50 | DIN/ANSI | B = 3.5-5xTP Gunnose |
| T200-PD100AE-10-24 | ● ○ | UNC #10-24 | 4.83 | 6.48 | 24 | 26.00 | 2B | 80.00 | 17.00 | 3 | 3.90 | DIN/ANSI | B = 3.5-5xTP Gunnose |
| T200-PD100AE-1/4 | ● ○ | UNC 1/4-20 | 6.35 | 8.08 | 20 | 34.50 | 2B | 90.00 | 20.50 | 3 | 5.20 | DIN/ANSI | B = 3.5-5xTP Gunnose |
| T200-PD100AE-5/16 | ● ○ | UNC 5/16-18 | 7.94 | 9.68 | 18 | 39.00 | 2B | 100.00 | 23.00 | 3 | 6.65 | DIN/ANSI | B = 3.5-5xTP Gunnose |
| T200-PD100AE-3/8 | ● ○ | UNC 3/8-16 | 9.52 | 8.08 | 16 | 39.00 | 2B | 100.00 | 20.00 | 3 | 8.00 | DIN/ANSI | B = 3.5-5xTP Gunnose |
| T200-PD101AE-1/2 | ● ○ | UNC 1/2-13 | 12.70 | 9.32 | 13 | 55.00 | 2B | 110.00 | 23.10 | 4 | 10.80 | DIN/ANSI | B = 3.5-5xTP Gunnose |
| T200-PD101AE-5/8 | ● ○ | UNC 5/8-11 | 15.88 | 12.19 | 11 | 55.00 | 2B | 110.00 | 23.10 | 4 | 13.50 | DIN/ANSI | B = 3.5-5xTP Gunnose |
| T200-PD101AE-3/4 | ● ○ | UNC 3/4-10 | 19.05 | 14.99 | 10 | 72.00 | 2B | 125.00 | 30.00 | 4 | 16.50 | DIN/ANSI | B = 3.5-5xTP Gunnose |
● = Первый выбор ○ = Хороший выбор
