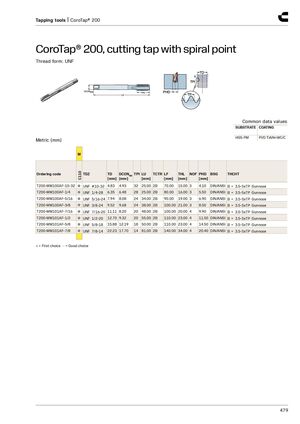

Инструменты для нарезания резьбы | CoroTap® 200
CoroTap® 200, машинный метчик со спиральной канавкой
Профиль резьбы: UNF
Общие параметры: ОСНОВА — HSS-PM, Покрытие — PVD TiAlN+WC/C
Метрическая (мм): M, C110
| Код заказа | Выбор | Резьба | TDZ [мм] | TD [мм] | TPI | LU [мм] | TCTR | LF [мм] | THL [мм] | NOF | PHD [мм] | BSG | THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T200-MM100AF-10-32 | ● | UNF #10-32 | 4.83 | 4.93 | 32 | 25.00 | 2B | 70.00 | 15.00 | 3 | 4.10 | DIN/ANSI | B = 3.5-5xTP Gunnose |
| T200-MM100AF-1/4 | ● | UNF 1/4-28 | 6.35 | 6.48 | 28 | 25.00 | 2B | 80.00 | 16.00 | 3 | 5.50 | DIN/ANSI | B = 3.5-5xTP Gunnose |
| T200-MM100AF-5/16 | ● | UNF 5/16-24 | 7.94 | 8.08 | 24 | 34.00 | 2B | 90.00 | 19.00 | 3 | 6.90 | DIN/ANSI | B = 3.5-5xTP Gunnose |
| T200-MM100AF-3/8 | ● | UNF 3/8-24 | 9.52 | 9.68 | 24 | 38.00 | 2B | 100.00 | 21.00 | 3 | 8.50 | DIN/ANSI | B = 3.5-5xTP Gunnose |
| T200-MM101AF-7/16 | ● | UNF 7/16-20 | 11.11 | 8.20 | 20 | 48.00 | 2B | 100.00 | 20.00 | 4 | 9.90 | DIN/ANSI | B = 3.5-5xTP Gunnose |
| T200-MM101AF-1/2 | ● | UNF 1/2-20 | 12.70 | 9.32 | 20 | 55.00 | 2B | 110.00 | 23.00 | 4 | 11.50 | DIN/ANSI | B = 3.5-5xTP Gunnose |
| T200-MM101AF-5/8 | ● | UNF 5/8-18 | 15.88 | 12.19 | 18 | 50.00 | 2B | 110.00 | 23.00 | 4 | 14.50 | DIN/ANSI | B = 3.5-5xTP Gunnose |
| T200-MM101AF-7/8 | ● | UNF 7/8-14 | 22.23 | 17.70 | 14 | 81.00 | 2B | 140.00 | 34.00 | 4 | 20.40 | DIN/ANSI | B = 3.5-5xTP Gunnose |
● = Первый выбор ○ = Хороший выбор
