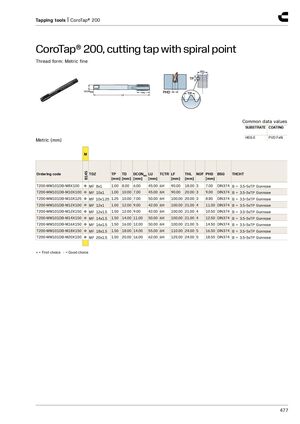

Инструменты для нарезания резьбы | CoroTap® 200
CoroTap® 200, машинный метчик со спиральной канавкой
Профиль резьбы: Метрическая мелкая
Общие параметры: ОСНОВА — HSS-E, Покрытие — PVD FeN
Метрическая (мм): M, B145
| Код заказа | Выбор | Резьба | TP [мм] | TD [мм] | DCONMS [мм] | LU [мм] | TCTR | LF [мм] | THL [мм] | NOF | PHD [мм] | BSG | THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T200-MM101DB-M8X100 | ● | MF 8x1 | 1.00 | 8.00 | 6.00 | 45.00 | 6H | 90.00 | 18.00 | 3 | 7.00 | DIN374 | B = 3.5-5xTP Gunnose |
| T200-MM101DB-M10X100 | ● | MF 10x1 | 1.00 | 10.00 | 7.00 | 45.00 | 6H | 90.00 | 20.00 | 3 | 9.00 | DIN374 | B = 3.5-5xTP Gunnose |
| T200-MM101DB-M10X125 | ● | MF 10x1.25 | 1.25 | 10.00 | 7.00 | 50.00 | 6H | 100.00 | 20.00 | 3 | 8.80 | DIN374 | B = 3.5-5xTP Gunnose |
| T200-MM101DB-M12X100 | ● | MF 12x1 | 1.00 | 12.00 | 9.00 | 42.00 | 6H | 100.00 | 21.00 | 4 | 11.00 | DIN374 | B = 3.5-5xTP Gunnose |
| T200-MM101DB-M12X150 | ● | MF 12x1.5 | 1.50 | 12.00 | 9.00 | 42.00 | 6H | 100.00 | 21.00 | 4 | 10.50 | DIN374 | B = 3.5-5xTP Gunnose |
| T200-MM101DB-M14X150 | ● | MF 14x1.5 | 1.50 | 14.00 | 11.00 | 50.00 | 6H | 100.00 | 21.00 | 4 | 12.50 | DIN374 | B = 3.5-5xTP Gunnose |
| T200-MM101DB-M16X150 | ● | MF 16x1.5 | 1.50 | 16.00 | 12.00 | 50.00 | 6H | 100.00 | 21.00 | 5 | 14.50 | DIN374 | B = 3.5-5xTP Gunnose |
| T200-MM101DB-M18X150 | ● | MF 18x1.5 | 1.50 | 18.00 | 14.00 | 55.00 | 6H | 110.00 | 24.00 | 5 | 16.50 | DIN374 | B = 3.5-5xTP Gunnose |
| T200-MM101DB-M20X150 | ● | MF 20x1.5 | 1.50 | 20.00 | 16.00 | 62.00 | 6H | 125.00 | 24.00 | 5 | 18.50 | DIN374 | B = 3.5-5xTP Gunnose |
● = Первый выбор ○ = Хороший выбор
