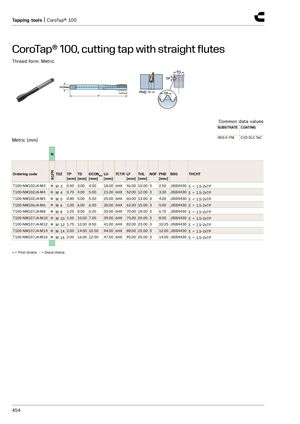

Резьбонарезной инструмент | CoroTap® 100
CoroTap® 100, режущий метчик с прямыми канавками
Форма резьбы: метрическая
Общие значения данных
ОСНОВА: HSS-E-PM. ПОКРЫТИЕ: CVD DLC TaC
Применимость N — N1PR
| Код заказа | TDZ | TP [mm] | TD [mm] | DCONMS [mm] | LU [mm] | TCTR | LF [mm] | THL [mm] | NOF | PHD [mm] | BSG | THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T100-NM102JA-M3 | M 3 | 0.50 | 3.00 | 4.00 | 18.00 | 6HX | 46.00 | 10.00 | 3 | 2.50 | JISB4430 | E = 1.5-2xTP |
| T100-NM102JA-M4 | M 4 | 0.70 | 4.00 | 5.00 | 21.00 | 6HX | 52.00 | 12.00 | 3 | 3.30 | JISB4430 | E = 1.5-2xTP |
| T100-NM102JA-M5 | M 5 | 0.80 | 5.00 | 5.50 | 25.00 | 6HX | 60.00 | 13.00 | 3 | 4.20 | JISB4430 | E = 1.5-2xTP |
| T100-NM106JA-M6 | M 6 | 1.00 | 6.00 | 6.00 | 30.00 | 6HX | 62.00 | 15.00 | 3 | 5.00 | JISB4430 | E = 1.5-2xTP |
| T100-NM107JA-M8 | M 8 | 1.25 | 8.00 | 6.20 | 35.00 | 6HX | 70.00 | 18.00 | 3 | 6.75 | JISB4430 | E = 1.5-2xTP |
| T100-NM107JA-M10 | M 10 | 1.50 | 10.00 | 7.00 | 39.00 | 6HX | 75.00 | 20.00 | 3 | 8.50 | JISB4430 | E = 1.5-2xTP |
| T100-NM107JA-M12 | M 12 | 1.75 | 12.00 | 8.50 | 41.00 | 6HX | 82.00 | 23.00 | 3 | 10.25 | JISB4430 | E = 1.5-2xTP |
| T100-NM107JA-M14 | M 14 | 2.00 | 14.00 | 10.50 | 44.00 | 6HX | 88.00 | 25.00 | 3 | 12.00 | JISB4430 | E = 1.5-2xTP |
| T100-NM107JA-M16 | M 16 | 2.00 | 16.00 | 12.50 | 47.50 | 6HX | 95.00 | 25.00 | 3 | 14.00 | JISB4430 | E = 1.5-2xTP |
● = первый выбор, ○ = хороший выбор
