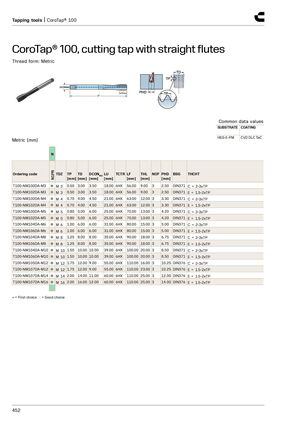

Резьбонарезной инструмент | CoroTap® 100
CoroTap® 100, режущий метчик с прямыми канавками
Форма резьбы: метрическая
Общие значения данных
ОСНОВА: HSS-E-PM. ПОКРЫТИЕ: CVD DLC TaC
Применимость N — N1PR
| Код заказа | TDZ | TP [mm] | TD [mm] | DCONMS [mm] | LU [mm] | TCTR | LF [mm] | THL [mm] | NOF | PHD [mm] | BSG | THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T100-NM100DA-M3 | M 3 | 0.50 | 3.00 | 3.50 | 18.00 | 6HX | 56.00 | 9.00 | 3 | 2.50 | DIN371 | C = 2-3xTP |
| T100-NM102DA-M3 | M 3 | 0.50 | 3.00 | 3.50 | 18.00 | 6HX | 56.00 | 9.00 | 3 | 2.50 | DIN371 | E = 1.5-2xTP |
| T100-NM100DA-M4 | M 4 | 0.70 | 4.00 | 4.50 | 21.00 | 6HX | 63.00 | 12.00 | 3 | 3.30 | DIN371 | C = 2-3xTP |
| T100-NM102DA-M4 | M 4 | 0.70 | 4.00 | 4.50 | 21.00 | 6HX | 63.00 | 12.00 | 3 | 3.30 | DIN371 | E = 1.5-2xTP |
| T100-NM100DA-M5 | M 5 | 0.80 | 5.00 | 6.00 | 25.00 | 6HX | 70.00 | 13.00 | 3 | 4.20 | DIN371 | C = 2-3xTP |
| T100-NM102DA-M5 | M 5 | 0.80 | 5.00 | 6.00 | 25.00 | 6HX | 70.00 | 13.00 | 3 | 4.20 | DIN371 | E = 1.5-2xTP |
| T100-NM104DA-M6 | M 6 | 1.00 | 6.00 | 6.00 | 31.00 | 6HX | 80.00 | 15.00 | 3 | 5.00 | DIN371 | C = 2-3xTP |
| T100-NM106DA-M6 | M 6 | 1.00 | 6.00 | 6.00 | 31.00 | 6HX | 80.00 | 15.00 | 3 | 5.00 | DIN371 | E = 1.5-2xTP |
| T100-NM104DA-M8 | M 8 | 1.25 | 8.00 | 8.00 | 35.00 | 6HX | 90.00 | 18.00 | 3 | 6.75 | DIN371 | C = 2-3xTP |
| T100-NM106DA-M8 | M 8 | 1.25 | 8.00 | 8.00 | 35.00 | 6HX | 90.00 | 18.00 | 3 | 6.75 | DIN371 | E = 1.5-2xTP |
| T100-NM104DA-M10 | M 10 | 1.50 | 10.00 | 10.00 | 39.00 | 6HX | 100.00 | 20.00 | 3 | 8.50 | DIN371 | C = 2-3xTP |
| T100-NM106DA-M10 | M 10 | 1.50 | 10.00 | 10.00 | 39.00 | 6HX | 100.00 | 20.00 | 3 | 8.50 | DIN371 | E = 1.5-2xTP |
| T100-NM105DA-M12 | M 12 | 1.75 | 12.00 | 9.00 | 55.00 | 6HX | 110.00 | 16.00 | 3 | 10.25 | DIN376 | C = 2-3xTP |
| T100-NM107DA-M12 | M 12 | 1.75 | 12.00 | 9.00 | 55.00 | 6HX | 110.00 | 23.00 | 3 | 10.25 | DIN376 | E = 1.5-2xTP |
| T100-NM107DA-M14 | M 14 | 2.00 | 14.00 | 11.00 | 60.00 | 6HX | 110.00 | 25.00 | 3 | 12.00 | DIN376 | E = 1.5-2xTP |
| T100-NM107DA-M16 | M 16 | 2.00 | 16.00 | 12.00 | 60.00 | 6HX | 110.00 | 25.00 | 3 | 14.00 | DIN376 | E = 1.5-2xTP |
● = первый выбор, ○ = хороший выбор
