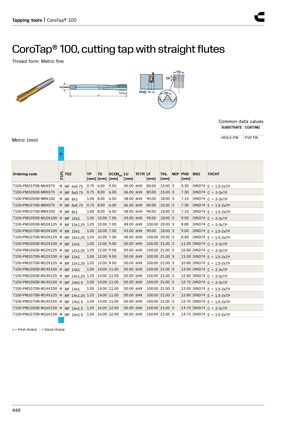

Резьбонарезной инструмент | CoroTap® 100
CoroTap® 100, режущий метчик с прямыми канавками
Форма резьбы: метрическая мелкая
Общие значения данных
ОСНОВА: HSS-E-PM. ПОКРЫТИЕ: PVD TiN
Метрическая система (мм), применимость P — P1PL
| Код заказа | TDZ | TP [mm] | TD [mm] | DCONMS [mm] | LU [mm] | TCTR | LF [mm] | THL [mm] | NOF | PHD [mm] | BSG | THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T100-PM107DB-M6X075 | MF 6x0.75 | 0.75 | 6.00 | 4.50 | 40.00 | 6HX | 80.00 | 15.00 | 3 | 5.30 | DIN374 | E = 1.5-2xTP |
| T100-PM105DB-M8X075 | MF 8x0.75 | 0.75 | 8.00 | 6.00 | 36.00 | 6HX | 80.00 | 15.00 | 3 | 7.30 | DIN374 | C = 2-3xTP |
| T100-PM105DB-M8X100 | MF 8x1 | 1.00 | 8.00 | 6.00 | 38.00 | 6HX | 90.00 | 18.00 | 3 | 7.15 | DIN374 | C = 2-3xTP |
| T100-PM107DB-M8X075 | MF 8x0.75 | 0.75 | 8.00 | 6.00 | 36.00 | 6HX | 80.00 | 15.00 | 3 | 7.30 | DIN374 | E = 1.5-2xTP |
| T100-PM107DB-M8X100 | MF 8x1 | 1.00 | 8.00 | 6.00 | 38.00 | 6HX | 90.00 | 18.00 | 3 | 7.15 | DIN374 | E = 1.5-2xTP |
| T100-PM105DB-M10X100 | MF 10x1 | 1.00 | 10.00 | 7.00 | 43.00 | 6HX | 90.00 | 18.00 | 3 | 9.00 | DIN374 | C = 2-3xTP |
| T100-PM105DB-M10X125 | MF 10x1.25 | 1.25 | 10.00 | 7.00 | 48.00 | 6HX | 100.00 | 20.00 | 3 | 8.80 | DIN374 | C = 2-3xTP |
| T100-PM107DB-M10X100 | MF 10x1 | 1.00 | 10.00 | 7.00 | 43.00 | 6HX | 90.00 | 18.00 | 3 | 9.00 | DIN374 | E = 1.5-2xTP |
| T100-PM107DB-M10X125 | MF 10x1.25 | 1.25 | 10.00 | 7.00 | 48.00 | 6HX | 100.00 | 20.00 | 3 | 8.80 | DIN374 | E = 1.5-2xTP |
| T100-PM105DB-M12X100 | MF 12x1 | 1.00 | 12.00 | 9.00 | 50.00 | 6HX | 100.00 | 21.00 | 3 | 11.00 | DIN374 | C = 2-3xTP |
| T100-PM105DB-M12X125 | MF 12x1.25 | 1.25 | 12.00 | 9.00 | 50.00 | 6HX | 100.00 | 21.00 | 3 | 10.80 | DIN374 | C = 2-3xTP |
| T100-PM107DB-M12X100 | MF 12x1 | 1.00 | 12.00 | 9.00 | 50.00 | 6HX | 100.00 | 21.00 | 3 | 11.00 | DIN374 | E = 1.5-2xTP |
| T100-PM107DB-M12X125 | MF 12x1.25 | 1.25 | 12.00 | 9.00 | 50.00 | 6HX | 100.00 | 21.00 | 3 | 10.80 | DIN374 | E = 1.5-2xTP |
| T100-PM105DB-M14X100 | MF 14x1 | 1.00 | 14.00 | 11.00 | 50.00 | 6HX | 100.00 | 21.00 | 3 | 13.00 | DIN374 | C = 2-3xTP |
| T100-PM105DB-M14X125 | MF 14x1.25 | 1.25 | 14.00 | 11.00 | 50.00 | 6HX | 100.00 | 21.00 | 3 | 12.80 | DIN374 | C = 2-3xTP |
| T100-PM105DB-M14X150 | MF 14x1.5 | 1.50 | 14.00 | 11.00 | 50.00 | 6HX | 100.00 | 21.00 | 3 | 12.70 | DIN374 | C = 2-3xTP |
| T100-PM107DB-M14X100 | MF 14x1 | 1.00 | 14.00 | 11.00 | 50.00 | 6HX | 100.00 | 21.00 | 3 | 13.00 | DIN374 | E = 1.5-2xTP |
| T100-PM107DB-M14X125 | MF 14x1.25 | 1.25 | 14.00 | 11.00 | 50.00 | 6HX | 100.00 | 21.00 | 3 | 12.80 | DIN374 | E = 1.5-2xTP |
| T100-PM107DB-M14X150 | MF 14x1.5 | 1.50 | 14.00 | 11.00 | 50.00 | 6HX | 100.00 | 21.00 | 3 | 12.70 | DIN374 | E = 1.5-2xTP |
| T100-PM105DB-M16X150 | MF 16x1.5 | 1.50 | 16.00 | 12.00 | 50.00 | 6HX | 100.00 | 21.00 | 3 | 14.70 | DIN374 | C = 2-3xTP |
| T100-PM107DB-M16X150 | MF 16x1.5 | 1.50 | 16.00 | 12.00 | 50.00 | 6HX | 100.00 | 21.00 | 3 | 14.70 | DIN374 | E = 1.5-2xTP |
● = первый выбор, ○ = хороший выбор
