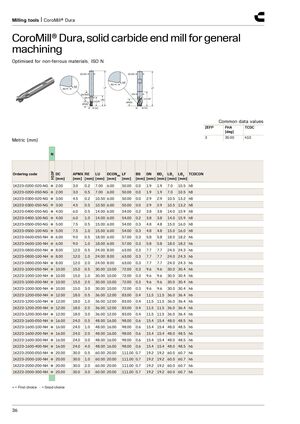

Инструмент для фрезерования | CoroMill® Dura
CoroMill® Dura, концевая фреза из цельного твердого сплава для общей обработки
Оптимизирована для обработки цветных металлов, ISO N.
Общие значения данных
| ZEFP | FHA [град] | TCDC |
|---|---|---|
| 3 | 35.00 | h10 |
Метрическая система (мм)
| N |
|---|
| H10F |
| Код заказа | N | DC [мм] | APMX [мм] | RE [мм] | LU [мм] | DCONMS [мм] | LF [мм] | BS [мм] | DN [мм] | BD1_ [мм] | LB1_ [мм] | LB2_ [мм] | TCDCON |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1K223-0200-020-NG | ● | 2.00 | 3.0 | 0.2 | 7.00 | 6.00 | 50.00 | 0.0 | 1.9 | 1.9 | 7.0 | 10.5 | h8 |
| 1K223-0200-050-NG | ● | 2.00 | 3.0 | 0.5 | 7.00 | 6.00 | 50.00 | 0.0 | 1.9 | 1.9 | 7.0 | 10.5 | h8 |
| 1K223-0300-020-NG | ● | 3.00 | 4.5 | 0.2 | 10.50 | 6.00 | 50.00 | 0.0 | 2.9 | 2.9 | 10.5 | 13.2 | h8 |
| 1K223-0300-050-NG | ● | 3.00 | 4.5 | 0.5 | 10.50 | 6.00 | 50.00 | 0.0 | 2.9 | 2.9 | 10.5 | 13.2 | h8 |
| 1K223-0400-050-NG | ● | 4.00 | 6.0 | 0.5 | 14.00 | 6.00 | 54.00 | 0.2 | 3.8 | 3.8 | 14.0 | 15.9 | h8 |
| 1K223-0400-100-NG | ● | 4.00 | 6.0 | 1.0 | 14.00 | 6.00 | 54.00 | 0.2 | 3.8 | 3.8 | 14.0 | 15.9 | h8 |
| 1K223-0500-050-NG | ● | 5.00 | 7.5 | 0.5 | 15.00 | 6.00 | 54.00 | 0.3 | 4.8 | 4.8 | 15.0 | 16.0 | h8 |
| 1K223-0500-100-NG | ● | 5.00 | 7.5 | 1.0 | 15.00 | 6.00 | 54.00 | 0.3 | 4.8 | 4.8 | 15.0 | 16.0 | h8 |
| 1K223-0600-050-NH | ● | 6.00 | 9.0 | 0.5 | 18.00 | 6.00 | 57.00 | 0.3 | 5.8 | 5.8 | 18.0 | 18.2 | h6 |
| 1K223-0600-100-NH | ● | 6.00 | 9.0 | 1.0 | 18.00 | 6.00 | 57.00 | 0.3 | 5.8 | 5.8 | 18.0 | 18.2 | h6 |
| 1K223-0800-050-NH | ● | 8.00 | 12.0 | 0.5 | 24.00 | 8.00 | 63.00 | 0.3 | 7.7 | 7.7 | 24.0 | 24.3 | h6 |
| 1K223-0800-100-NH | ● | 8.00 | 12.0 | 1.0 | 24.00 | 8.00 | 63.00 | 0.3 | 7.7 | 7.7 | 24.0 | 24.3 | h6 |
| 1K223-0800-200-NH | ● | 8.00 | 12.0 | 2.0 | 24.00 | 8.00 | 63.00 | 0.3 | 7.7 | 7.7 | 24.0 | 24.3 | h6 |
| 1K223-1000-050-NH | ● | 10.00 | 15.0 | 0.5 | 30.00 | 10.00 | 72.00 | 0.3 | 9.6 | 9.6 | 30.0 | 30.4 | h6 |
| 1K223-1000-100-NH | ● | 10.00 | 15.0 | 1.0 | 30.00 | 10.00 | 72.00 | 0.3 | 9.6 | 9.6 | 30.0 | 30.4 | h6 |
| 1K223-1000-200-NH | ● | 10.00 | 15.0 | 2.0 | 30.00 | 10.00 | 72.00 | 0.3 | 9.6 | 9.6 | 30.0 | 30.4 | h6 |
| 1K223-1000-300-NH | ● | 10.00 | 15.0 | 3.0 | 30.00 | 10.00 | 72.00 | 0.3 | 9.6 | 9.6 | 30.0 | 30.4 | h6 |
| 1K223-1200-050-NH | ● | 12.00 | 18.0 | 0.5 | 36.00 | 12.00 | 83.00 | 0.4 | 11.5 | 11.5 | 36.0 | 36.4 | h6 |
| 1K223-1200-100-NH | ● | 12.00 | 18.0 | 1.0 | 36.00 | 12.00 | 83.00 | 0.4 | 11.5 | 11.5 | 36.0 | 36.4 | h6 |
| 1K223-1200-200-NH | ● | 12.00 | 18.0 | 2.0 | 36.00 | 12.00 | 83.00 | 0.4 | 11.5 | 11.5 | 36.0 | 36.4 | h6 |
| 1K223-1200-300-NH | ● | 12.00 | 18.0 | 3.0 | 36.00 | 12.00 | 83.00 | 0.4 | 11.5 | 11.5 | 36.0 | 36.4 | h6 |
| 1K223-1600-050-NH | ● | 16.00 | 24.0 | 0.5 | 48.00 | 16.00 | 98.00 | 0.6 | 15.4 | 15.4 | 48.0 | 48.5 | h6 |
| 1K223-1600-100-NH | ● | 16.00 | 24.0 | 1.0 | 48.00 | 16.00 | 98.00 | 0.6 | 15.4 | 15.4 | 48.0 | 48.5 | h6 |
| 1K223-1600-200-NH | ● | 16.00 | 24.0 | 2.0 | 48.00 | 16.00 | 98.00 | 0.6 | 15.4 | 15.4 | 48.0 | 48.5 | h6 |
| 1K223-1600-300-NH | ● | 16.00 | 24.0 | 3.0 | 48.00 | 16.00 | 98.00 | 0.6 | 15.4 | 15.4 | 48.0 | 48.5 | h6 |
| 1K223-1600-400-NH | ● | 16.00 | 24.0 | 4.0 | 48.00 | 16.00 | 98.00 | 0.6 | 15.4 | 15.4 | 48.0 | 48.5 | h6 |
| 1K223-2000-050-NH | ● | 20.00 | 30.0 | 0.5 | 60.00 | 20.00 | 111.00 | 0.7 | 19.2 | 19.2 | 60.0 | 60.7 | h6 |
| 1K223-2000-100-NH | ● | 20.00 | 30.0 | 1.0 | 60.00 | 20.00 | 111.00 | 0.7 | 19.2 | 19.2 | 60.0 | 60.7 | h6 |
| 1K223-2000-200-NH | ● | 20.00 | 30.0 | 2.0 | 60.00 | 20.00 | 111.00 | 0.7 | 19.2 | 19.2 | 60.0 | 60.7 | h6 |
| 1K223-2000-300-NH | ● | 20.00 | 30.0 | 3.0 | 60.00 | 20.00 | 111.00 | 0.7 | 19.2 | 19.2 | 60.0 | 60.7 | h6 |
● = Первый выбор, ○ = Хороший выбор
