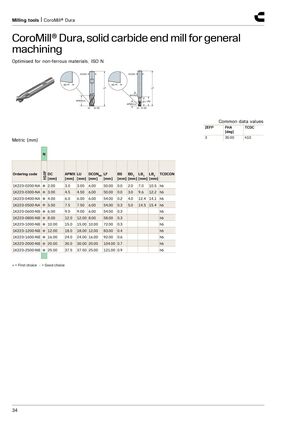

Инструмент для фрезерования | CoroMill® Dura
CoroMill® Dura, концевая фреза из цельного твердого сплава для общей обработки
Оптимизирована для обработки цветных металлов, ISO N.
Общие значения данных
| ZEFP | FHA [град] | TCDC |
|---|---|---|
| 3 | 35.00 | h10 |
Метрическая система (мм)
| N |
|---|
| H10F |
| Код заказа | N | DC [мм] | APMX [мм] | LU [мм] | DCONMS [мм] | LF [мм] | BS [мм] | BD1_ [мм] | LB1_ [мм] | LB2_ [мм] | TCDCON |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1K223-0200-NA | ● | 2.00 | 3.0 | 3.00 | 6.00 | 50.00 | 0.0 | 2.0 | 7.0 | 10.5 | h6 |
| 1K223-0300-NA | ● | 3.00 | 4.5 | 4.50 | 6.00 | 50.00 | 0.0 | 3.0 | 9.6 | 12.2 | h6 |
| 1K223-0400-NA | ● | 4.00 | 6.0 | 6.00 | 6.00 | 54.00 | 0.2 | 4.0 | 12.4 | 14.1 | h6 |
| 1K223-0500-NA | ● | 5.00 | 7.5 | 7.50 | 6.00 | 54.00 | 0.3 | 5.0 | 14.5 | 15.4 | h6 |
| 1K223-0600-NB | ● | 6.00 | 9.0 | 9.00 | 6.00 | 54.00 | 0.3 | – | – | – | h6 |
| 1K223-0800-NB | ● | 8.00 | 12.0 | 12.00 | 8.00 | 58.00 | 0.3 | – | – | – | h6 |
| 1K223-1000-NB | ● | 10.00 | 15.0 | 15.00 | 10.00 | 72.00 | 0.3 | – | – | – | h6 |
| 1K223-1200-NB | ● | 12.00 | 18.0 | 18.00 | 12.00 | 83.00 | 0.4 | – | – | – | h6 |
| 1K223-1600-NB | ● | 16.00 | 24.0 | 24.00 | 16.00 | 92.00 | 0.6 | – | – | – | h6 |
| 1K223-2000-NB | ● | 20.00 | 30.0 | 30.00 | 20.00 | 104.00 | 0.7 | – | – | – | h6 |
| 1K223-2500-NB | ● | 25.00 | 37.5 | 37.50 | 25.00 | 121.00 | 0.9 | – | – | – | h6 |
● = Первый выбор, ○ = Хороший выбор
