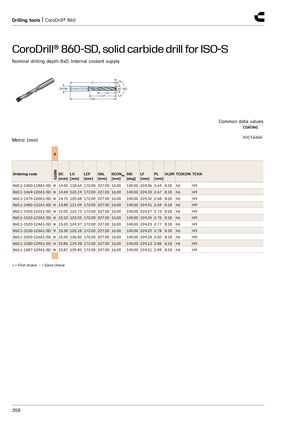

Инструменты для сверления | CoroDrill® 860
CoroDrill® 860-SD, монолитное твердосплавное сверло для ISO-S
Номинальная глубина сверления 8xD. Внутренняя подача СОЖ.
Общие значения: покрытие — PVD TiAlSiN. Метрический ряд (мм). Область применения: S (S2BM).
| Код заказа | S | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-1450-118A1-SD | ● | 14.50 | 118.64 | 172.00 | 227.00 | 16.00 | 140.00 | 224.36 | 2.64 | 8.18 | h6 | H9 |
| 860.1-1469-120A1-SD | ● | 14.69 | 120.19 | 172.00 | 227.00 | 16.00 | 140.00 | 224.33 | 2.67 | 8.18 | h6 | H9 |
| 860.1-1475-120A1-SD | ● | 14.75 | 120.68 | 172.00 | 227.00 | 16.00 | 140.00 | 224.32 | 2.68 | 8.18 | h6 | H9 |
| 860.1-1480-121A1-SD | ● | 14.80 | 121.09 | 172.00 | 227.00 | 16.00 | 140.00 | 224.31 | 2.69 | 8.18 | h6 | H9 |
| 860.1-1500-122A1-SD | ● | 15.00 | 122.73 | 172.00 | 227.00 | 16.00 | 140.00 | 224.27 | 2.73 | 8.18 | h6 | H9 |
| 860.1-1510-123A1-SD | ● | 15.10 | 123.55 | 172.00 | 227.00 | 16.00 | 140.00 | 224.25 | 2.75 | 8.18 | h6 | H9 |
| 860.1-1520-124A1-SD | ● | 15.20 | 124.37 | 172.00 | 227.00 | 16.00 | 140.00 | 224.23 | 2.77 | 8.18 | h6 | H9 |
| 860.1-1530-125A1-SD | ● | 15.30 | 125.18 | 172.00 | 227.00 | 16.00 | 140.00 | 224.22 | 2.78 | 8.18 | h6 | H9 |
| 860.1-1550-126A1-SD | ● | 15.50 | 126.82 | 172.00 | 227.00 | 16.00 | 140.00 | 224.18 | 2.82 | 8.18 | h6 | H9 |
| 860.1-1580-129A1-SD | ● | 15.80 | 129.28 | 172.00 | 227.00 | 16.00 | 140.00 | 224.13 | 2.88 | 8.18 | h6 | H9 |
| 860.1-1587-129A1-SD | ● | 15.87 | 129.85 | 172.00 | 227.00 | 16.00 | 140.00 | 224.11 | 2.89 | 8.18 | h6 | H9 |
● — первый выбор, ○ — хороший выбор.
