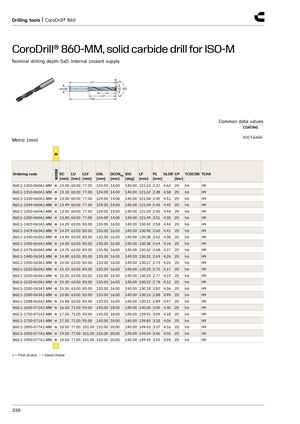

Инструменты для сверления | CoroDrill® 860
CoroDrill® 860-MM, сверло из цельного твердого сплава для ISO-M
Номинальная глубина сверления 5xD. Внутренняя подача СОЖ.
| Общие значения данных | |
|---|---|
| Покрытие | PVD TiAlSiN |
| Код заказа | M | DC [mm] | LU [mm] | LCF [mm] | OAL [mm] | DCONMS [mm] | SIG [deg] | LF [mm] | PL [mm] | ULDR | CP [bar] | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-1300-060A1-MM | ● | 13.00 | 60.00 | 77.00 | 124.00 | 14.00 | 140.00 | 121.63 | 2.37 | 4.62 | 20 | h6 | H9 |
| 860.1-1310-060A1-MM | ● | 13.10 | 60.00 | 77.00 | 124.00 | 14.00 | 140.00 | 121.62 | 2.38 | 4.58 | 20 | h6 | H9 |
| 860.1-1330-060A1-MM | ● | 13.30 | 60.00 | 77.00 | 124.00 | 14.00 | 140.00 | 121.58 | 2.42 | 4.51 | 20 | h6 | H9 |
| 860.1-1349-060A1-MM | ● | 13.49 | 60.00 | 77.00 | 124.00 | 14.00 | 140.00 | 121.54 | 2.45 | 4.45 | 20 | h6 | H9 |
| 860.1-1350-060A1-MM | ● | 13.50 | 60.00 | 77.00 | 124.00 | 14.00 | 140.00 | 121.54 | 2.46 | 4.44 | 20 | h6 | H9 |
| 860.1-1380-060A1-MM | ● | 13.80 | 60.00 | 77.00 | 124.00 | 14.00 | 140.00 | 121.49 | 2.51 | 4.35 | 20 | h6 | H9 |
| 860.1-1420-063A1-MM | ● | 14.20 | 63.00 | 83.00 | 133.00 | 16.00 | 140.00 | 130.42 | 2.58 | 4.44 | 20 | h6 | H9 |
| 860.1-1429-063A1-MM | ● | 14.29 | 63.00 | 83.00 | 133.00 | 16.00 | 140.00 | 130.40 | 2.60 | 4.41 | 20 | h6 | H9 |
| 860.1-1440-063A1-MM | ● | 14.40 | 63.00 | 83.00 | 133.00 | 16.00 | 140.00 | 130.38 | 2.62 | 4.38 | 20 | h6 | H9 |
| 860.1-1450-063A1-MM | ● | 14.50 | 63.00 | 83.00 | 133.00 | 16.00 | 140.00 | 130.36 | 2.64 | 4.34 | 20 | h6 | H9 |
| 860.1-1475-063A1-MM | ● | 14.75 | 63.00 | 83.00 | 133.00 | 16.00 | 140.00 | 130.32 | 2.68 | 4.27 | 20 | h6 | H9 |
| 860.1-1480-063A1-MM | ● | 14.80 | 63.00 | 83.00 | 133.00 | 16.00 | 140.00 | 130.31 | 2.69 | 4.26 | 20 | h6 | H9 |
| 860.1-1500-063A1-MM | ● | 15.00 | 63.00 | 83.00 | 133.00 | 16.00 | 140.00 | 130.27 | 2.73 | 4.20 | 20 | h6 | H9 |
| 860.1-1510-063A1-MM | ● | 15.10 | 63.00 | 83.00 | 133.00 | 16.00 | 140.00 | 130.25 | 2.75 | 4.17 | 20 | h6 | H9 |
| 860.1-1520-063A1-MM | ● | 15.20 | 63.00 | 83.00 | 133.00 | 16.00 | 140.00 | 130.23 | 2.77 | 4.14 | 20 | h6 | H9 |
| 860.1-1530-063A1-MM | ● | 15.30 | 63.00 | 83.00 | 133.00 | 16.00 | 140.00 | 130.22 | 2.78 | 4.12 | 20 | h6 | H9 |
| 860.1-1550-063A1-MM | ● | 15.50 | 63.00 | 83.00 | 133.00 | 16.00 | 140.00 | 130.18 | 2.82 | 4.06 | 20 | h6 | H9 |
| 860.1-1580-063A1-MM | ● | 15.80 | 63.00 | 83.00 | 133.00 | 16.00 | 140.00 | 130.13 | 2.88 | 3.99 | 20 | h6 | H9 |
| 860.1-1588-063A1-MM | ● | 15.88 | 63.00 | 83.00 | 133.00 | 16.00 | 140.00 | 130.11 | 2.89 | 3.97 | 20 | h6 | H9 |
| 860.1-1650-071A1-MM | ● | 16.50 | 71.00 | 93.00 | 143.00 | 18.00 | 140.00 | 140.00 | 3.00 | 4.30 | 20 | h6 | H9 |
| 860.1-1700-071A1-MM | ● | 17.00 | 71.00 | 93.00 | 143.00 | 18.00 | 140.00 | 139.91 | 3.09 | 4.18 | 20 | h6 | H9 |
| 860.1-1750-071A1-MM | ● | 17.50 | 71.00 | 93.00 | 143.00 | 18.00 | 140.00 | 139.82 | 3.18 | 4.06 | 20 | h6 | H9 |
| 860.1-1850-077A1-MM | ● | 18.50 | 77.00 | 101.00 | 153.00 | 20.00 | 140.00 | 149.63 | 3.37 | 4.16 | 20 | h6 | H9 |
| 860.1-1900-077A1-MM | ● | 19.00 | 77.00 | 101.00 | 153.00 | 20.00 | 140.00 | 149.54 | 3.46 | 4.05 | 20 | h6 | H9 |
| 860.1-1950-077A1-MM | ● | 19.50 | 77.00 | 101.00 | 153.00 | 20.00 | 140.00 | 149.45 | 3.55 | 3.95 | 20 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
