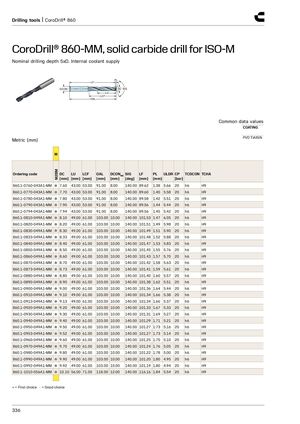

Инструмент для сверления | CoroDrill® 860
CoroDrill® 860-MM, монолитное твердосплавное сверло для ISO-M
Номинальная глубина сверления 5xD. Внутренняя подача СОЖ.
Общие данные: ПОКРЫТИЕ — PVD TiAlSiN. Метрическая (мм). Группа применения: M, класс M2BM.
| Код заказа | M | DC [mm] | LU [mm] | LCF [mm] | OAL [mm] | DCONMS [mm] | SIG [deg] | LF [mm] | PL [mm] | ULDR | CP | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-0760-043A1-MM | ● | 7.60 | 43.00 | 53.00 | 91.00 | 8.00 | 140.00 | 89.62 | 1.38 | 5.66 | 20 | h6 | H9 |
| 860.1-0770-043A1-MM | ● | 7.70 | 43.00 | 53.00 | 91.00 | 8.00 | 140.00 | 89.60 | 1.40 | 5.58 | 20 | h6 | H9 |
| 860.1-0780-043A1-MM | ● | 7.80 | 43.00 | 53.00 | 91.00 | 8.00 | 140.00 | 89.58 | 1.42 | 5.51 | 20 | h6 | H9 |
| 860.1-0790-043A1-MM | ● | 7.90 | 43.00 | 53.00 | 91.00 | 8.00 | 140.00 | 89.56 | 1.44 | 5.44 | 20 | h6 | H9 |
| 860.1-0794-043A1-MM | ● | 7.94 | 43.00 | 53.00 | 91.00 | 8.00 | 140.00 | 89.56 | 1.45 | 5.42 | 20 | h6 | H9 |
| 860.1-0810-049A1-MM | ● | 8.10 | 49.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.53 | 1.47 | 6.05 | 20 | h6 | H9 |
| 860.1-0820-049A1-MM | ● | 8.20 | 49.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.51 | 1.49 | 5.98 | 20 | h6 | H9 |
| 860.1-0830-049A1-MM | ● | 8.30 | 49.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.49 | 1.51 | 5.90 | 20 | h6 | H9 |
| 860.1-0833-049A1-MM | ● | 8.33 | 49.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.48 | 1.52 | 5.88 | 20 | h6 | H9 |
| 860.1-0840-049A1-MM | ● | 8.40 | 49.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.47 | 1.53 | 5.83 | 20 | h6 | H9 |
| 860.1-0850-049A1-MM | ● | 8.50 | 49.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.45 | 1.55 | 5.76 | 20 | h6 | H9 |
| 860.1-0860-049A1-MM | ● | 8.60 | 49.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.43 | 1.57 | 5.70 | 20 | h6 | H9 |
| 860.1-0870-049A1-MM | ● | 8.70 | 49.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.42 | 1.58 | 5.63 | 20 | h6 | H9 |
| 860.1-0873-049A1-MM | ● | 8.73 | 49.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.41 | 1.59 | 5.61 | 20 | h6 | H9 |
| 860.1-0880-049A1-MM | ● | 8.80 | 49.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.40 | 1.60 | 5.57 | 20 | h6 | H9 |
| 860.1-0890-049A1-MM | ● | 8.90 | 49.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.38 | 1.62 | 5.51 | 20 | h6 | H9 |
| 860.1-0900-049A1-MM | ● | 9.00 | 49.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.36 | 1.64 | 5.44 | 20 | h6 | H9 |
| 860.1-0910-049A1-MM | ● | 9.10 | 49.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.34 | 1.66 | 5.38 | 20 | h6 | H9 |
| 860.1-0913-049A1-MM | ● | 9.13 | 49.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.34 | 1.66 | 5.37 | 20 | h6 | H9 |
| 860.1-0920-049A1-MM | ● | 9.20 | 49.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.33 | 1.67 | 5.33 | 20 | h6 | H9 |
| 860.1-0930-049A1-MM | ● | 9.30 | 49.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.31 | 1.69 | 5.27 | 20 | h6 | H9 |
| 860.1-0940-049A1-MM | ● | 9.40 | 49.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.29 | 1.71 | 5.21 | 20 | h6 | H9 |
| 860.1-0950-049A1-MM | ● | 9.50 | 49.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.27 | 1.73 | 5.16 | 20 | h6 | H9 |
| 860.1-0953-049A1-MM | ● | 9.52 | 49.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.27 | 1.73 | 5.14 | 20 | h6 | H9 |
| 860.1-0960-049A1-MM | ● | 9.60 | 49.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.25 | 1.75 | 5.10 | 20 | h6 | H9 |
| 860.1-0970-049A1-MM | ● | 9.70 | 49.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.24 | 1.76 | 5.05 | 20 | h6 | H9 |
| 860.1-0980-049A1-MM | ● | 9.80 | 49.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.22 | 1.78 | 5.00 | 20 | h6 | H9 |
| 860.1-0990-049A1-MM | ● | 9.90 | 49.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.20 | 1.80 | 4.95 | 20 | h6 | H9 |
| 860.1-0992-049A1-MM | ● | 9.92 | 49.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.19 | 1.80 | 4.94 | 20 | h6 | H9 |
| 860.1-1010-056A1-MM | ● | 10.10 | 56.00 | 71.00 | 118.00 | 12.00 | 140.00 | 116.16 | 1.84 | 5.54 | 20 | h6 | H9 |
● — первый выбор, ○ — хороший выбор.
