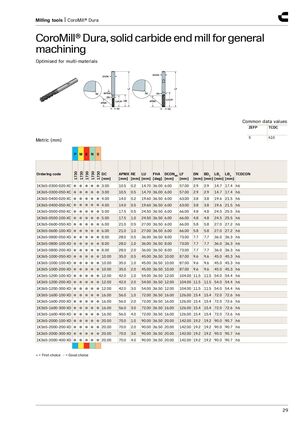

Инструмент для фрезерования | CoroMill® Dura
CoroMill® Dura, концевая фреза из цельного твердого сплава для общей обработки
Оптимизирована для различных материалов.
Общие значения данных
| ZEFP | TCDC |
|---|---|
| 5 | h10 |
Метрическая система (мм)
| P | M | K | N | S |
|---|---|---|---|---|
| 1730 | 1730 | 1730 | 1730 | 1730 |
| Код заказа | P/M/K/N/S | DC [мм] | APMX [мм] | RE [мм] | LU [мм] | FHA [град] | DCONMS [мм] | LF [мм] | DN [мм] | BD1_ [мм] | LB1_ [мм] | LB2_ [мм] | TCDCON |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1K365-0300-020-XC | ●●●●● | 3.00 | 10.5 | 0.2 | 14.70 | 36.00 | 6.00 | 57.00 | 2.9 | 2.9 | 14.7 | 17.4 | h6 |
| 1K365-0300-050-XC | ●●●●● | 3.00 | 10.5 | 0.5 | 14.70 | 36.00 | 6.00 | 57.00 | 2.9 | 2.9 | 14.7 | 17.4 | h6 |
| 1K365-0400-020-XC | ●●●●● | 4.00 | 14.0 | 0.2 | 19.60 | 36.50 | 6.00 | 63.00 | 3.8 | 3.8 | 19.6 | 21.5 | h6 |
| 1K365-0400-050-XC | ●●●●● | 4.00 | 14.0 | 0.5 | 19.60 | 36.50 | 6.00 | 63.00 | 3.8 | 3.8 | 19.6 | 21.5 | h6 |
| 1K365-0500-050-XC | ●●●●● | 5.00 | 17.5 | 0.5 | 24.50 | 36.50 | 6.00 | 66.00 | 4.8 | 4.8 | 24.5 | 25.5 | h6 |
| 1K365-0500-100-XC | ●●●●● | 5.00 | 17.5 | 1.0 | 24.50 | 36.50 | 6.00 | 66.00 | 4.8 | 4.8 | 24.5 | 25.5 | h6 |
| 1K365-0600-050-XD | ●●●●● | 6.00 | 21.0 | 0.5 | 27.00 | 36.50 | 6.00 | 66.00 | 5.8 | 5.8 | 27.0 | 27.2 | h6 |
| 1K365-0600-100-XD | ●●●●● | 6.00 | 21.0 | 1.0 | 27.00 | 36.50 | 6.00 | 66.00 | 5.8 | 5.8 | 27.0 | 27.2 | h6 |
| 1K365-0800-050-XD | ●●●●● | 8.00 | 28.0 | 0.5 | 36.00 | 36.50 | 8.00 | 73.00 | 7.7 | 7.7 | 36.0 | 36.3 | h6 |
| 1K365-0800-100-XD | ●●●●● | 8.00 | 28.0 | 1.0 | 36.00 | 36.50 | 8.00 | 73.00 | 7.7 | 7.7 | 36.0 | 36.3 | h6 |
| 1K365-0800-200-XD | ●●●●● | 8.00 | 28.0 | 2.0 | 36.00 | 36.50 | 8.00 | 73.00 | 7.7 | 7.7 | 36.0 | 36.3 | h6 |
| 1K365-1000-050-XD | ●●●●● | 10.00 | 35.0 | 0.5 | 45.00 | 36.50 | 10.00 | 87.00 | 9.6 | 9.6 | 45.0 | 45.3 | h6 |
| 1K365-1000-100-XD | ●●●●● | 10.00 | 35.0 | 1.0 | 45.00 | 36.50 | 10.00 | 87.00 | 9.6 | 9.6 | 45.0 | 45.3 | h6 |
| 1K365-1000-200-XD | ●●●●● | 10.00 | 35.0 | 2.0 | 45.00 | 36.50 | 10.00 | 87.00 | 9.6 | 9.6 | 45.0 | 45.3 | h6 |
| 1K365-1200-100-XD | ●●●●● | 12.00 | 42.0 | 1.0 | 54.00 | 36.50 | 12.00 | 104.00 | 11.5 | 11.5 | 54.0 | 54.4 | h6 |
| 1K365-1200-200-XD | ●●●●● | 12.00 | 42.0 | 2.0 | 54.00 | 36.50 | 12.00 | 104.00 | 11.5 | 11.5 | 54.0 | 54.4 | h6 |
| 1K365-1200-300-XD | ●●●●● | 12.00 | 42.0 | 3.0 | 54.00 | 36.50 | 12.00 | 104.00 | 11.5 | 11.5 | 54.0 | 54.4 | h6 |
| 1K365-1600-100-XD | ●●●●● | 16.00 | 56.0 | 1.0 | 72.00 | 36.50 | 16.00 | 126.00 | 15.4 | 15.4 | 72.0 | 72.6 | h6 |
| 1K365-1600-200-XD | ●●●●● | 16.00 | 56.0 | 2.0 | 72.00 | 36.50 | 16.00 | 126.00 | 15.4 | 15.4 | 72.0 | 72.6 | h6 |
| 1K365-1600-300-XD | ●●●●● | 16.00 | 56.0 | 3.0 | 72.00 | 36.50 | 16.00 | 126.00 | 15.4 | 15.4 | 72.0 | 72.6 | h6 |
| 1K365-1600-400-XD | ●●●●● | 16.00 | 56.0 | 4.0 | 72.00 | 36.50 | 16.00 | 126.00 | 15.4 | 15.4 | 72.0 | 72.6 | h6 |
| 1K365-2000-100-XD | ●●●●● | 20.00 | 70.0 | 1.0 | 90.00 | 36.50 | 20.00 | 142.00 | 19.2 | 19.2 | 90.0 | 90.7 | h6 |
| 1K365-2000-200-XD | ●●●●● | 20.00 | 70.0 | 2.0 | 90.00 | 36.50 | 20.00 | 142.00 | 19.2 | 19.2 | 90.0 | 90.7 | h6 |
| 1K365-2000-300-XD | ●●●●● | 20.00 | 70.0 | 3.0 | 90.00 | 36.50 | 20.00 | 142.00 | 19.2 | 19.2 | 90.0 | 90.7 | h6 |
| 1K365-2000-400-XD | ●●●●● | 20.00 | 70.0 | 4.0 | 90.00 | 36.50 | 20.00 | 142.00 | 19.2 | 19.2 | 90.0 | 90.7 | h6 |
● = Первый выбор, ○ = Хороший выбор
