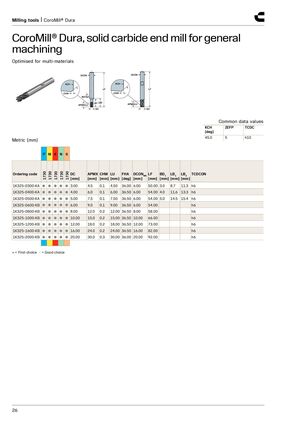

Инструмент для фрезерования | CoroMill® Dura
CoroMill® Dura, концевая фреза из цельного твердого сплава для общей обработки
Оптимизирована для различных материалов.
Общие значения данных
| KCH [град] | ZEFP | TCDC |
|---|---|---|
| 45.0 | 5 | h10 |
Метрическая система (мм)
| P | M | K | N | S |
|---|---|---|---|---|
| 1730 | 1730 | 1730 | 1730 | 1730 |
| Код заказа | P/M/K/N/S | DC [мм] | APMX [мм] | CHW [мм] | LU [мм] | FHA [град] | DCONMS [мм] | LF [мм] | BD1_ [мм] | LB1_ [мм] | LB2_ [мм] | TCDCON |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1K325-0300-XA | ●●●●● | 3.00 | 4.5 | 0.1 | 4.50 | 36.00 | 6.00 | 50.00 | 3.0 | 8.7 | 11.3 | h6 |
| 1K325-0400-XA | ●●●●● | 4.00 | 6.0 | 0.1 | 6.00 | 36.50 | 6.00 | 54.00 | 4.0 | 11.6 | 13.3 | h6 |
| 1K325-0500-XA | ●●●●● | 5.00 | 7.5 | 0.1 | 7.50 | 36.50 | 6.00 | 54.00 | 5.0 | 14.5 | 15.4 | h6 |
| 1K325-0600-XB | ●●●●● | 6.00 | 9.0 | 0.1 | 9.00 | 36.50 | 6.00 | 54.00 | – | – | – | h6 |
| 1K325-0800-XB | ●●●●● | 8.00 | 12.0 | 0.2 | 12.00 | 36.50 | 8.00 | 58.00 | – | – | – | h6 |
| 1K325-1000-XB | ●●●●● | 10.00 | 15.0 | 0.2 | 15.00 | 36.50 | 10.00 | 66.00 | – | – | – | h6 |
| 1K325-1200-XB | ●●●●● | 12.00 | 18.0 | 0.2 | 18.00 | 36.50 | 12.00 | 73.00 | – | – | – | h6 |
| 1K325-1600-XB | ●●●●● | 16.00 | 24.0 | 0.2 | 24.00 | 36.50 | 16.00 | 82.00 | – | – | – | h6 |
| 1K325-2000-XB | ●●●●● | 20.00 | 30.0 | 0.3 | 30.00 | 36.00 | 20.00 | 92.00 | – | – | – | h6 |
● = Первый выбор, ○ = Хороший выбор
