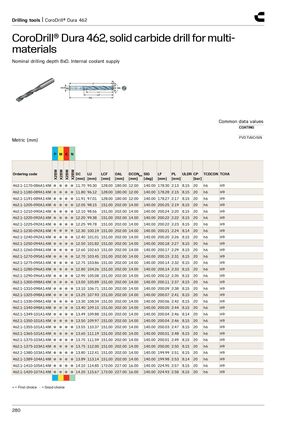

Сверлильный инструмент | CoroDrill® Dura 462

CoroDrill® Dura 462, цельнотвердосплавное сверло для различных материалов

Номинальная глубина сверления 8xD. Внутренняя подача СОЖ.

Общие значения данных
ПОКРЫТИЕ: PVD TiAlCrSiN

Метрическая (мм). Группы обрабатываемых материалов: P M K N (X2BM).

● = первый выбор, ○ = хороший выбор.
