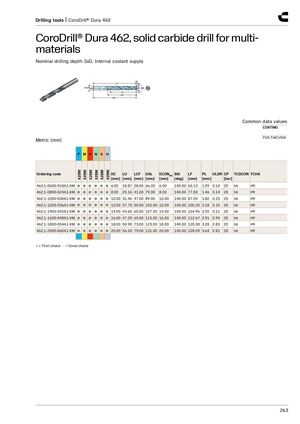

Инструменты для сверления | CoroDrill® Dura 462
CoroDrill® Dura 462, сверло из цельного твердого сплава для мультиматериалов
Номинальная глубина сверления 3xD. Внутренняя подача СОЖ.
Общие значения данных
Покрытие: PVD TiAlCrSiN
Метрическая система (мм). Применимость по группам обрабатываемых материалов: P M K N S H (X2BM).
| Код заказа | P | M | K | N | S | H | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | CP [бар] | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.1-0600-018A1-XM | ● | ● | ● | ● | ● | ● | 6.00 | 18.87 | 28.00 | 66.00 | 6.00 | 140.00 | 65.13 | 1.09 | 3.14 | 20 | h6 | H9 |
| 462.1-0800-024A1-XM | ● | ● | ● | ● | ● | ● | 8.00 | 25.16 | 41.00 | 79.00 | 8.00 | 140.00 | 77.83 | 1.46 | 3.14 | 20 | h6 | H9 |
| 462.1-1000-030A1-XM | ● | ● | ● | ● | ● | ● | 10.00 | 31.46 | 47.00 | 89.00 | 10.00 | 140.00 | 87.54 | 1.82 | 3.15 | 20 | h6 | H9 |
| 462.1-1200-036A1-XM | ● | ● | ● | ● | ● | ● | 12.00 | 37.75 | 55.00 | 102.00 | 12.00 | 140.00 | 100.25 | 2.18 | 3.15 | 20 | h6 | H9 |
| 462.1-1400-042A1-XM | ● | ● | ● | ● | ● | ● | 14.00 | 43.60 | 60.00 | 107.00 | 14.00 | 140.00 | 104.96 | 2.55 | 3.11 | 20 | h6 | H9 |
| 462.1-1600-048A1-XM | ● | ● | ● | ● | ● | ● | 16.00 | 47.20 | 65.00 | 115.00 | 16.00 | 140.00 | 112.67 | 2.91 | 2.95 | 20 | h6 | H9 |
| 462.1-1800-054A1-XM | ● | ● | ● | ● | ● | ● | 18.00 | 50.90 | 73.00 | 123.00 | 18.00 | 140.00 | 120.38 | 3.28 | 2.83 | 20 | h6 | H9 |
| 462.1-2000-060A1-XM | ● | ● | ● | ● | ● | ● | 20.00 | 56.20 | 79.00 | 131.00 | 20.00 | 140.00 | 128.09 | 3.64 | 2.81 | 20 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
