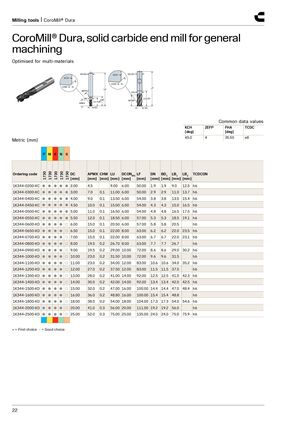

Инструмент для фрезерования | CoroMill® Dura
CoroMill® Dura, концевая фреза из цельного твердого сплава для общей обработки
Оптимизирована для различных материалов.
Общие значения данных
| KCH [град] | ZEFP | FHA [град] | TCDC |
|---|---|---|---|
| 45.0 | 4 | 35.50 | e8 |
Метрическая система (мм)
| P | M | K | N | S |
|---|---|---|---|---|
| 1730 | 1730 | 1730 | 1730 | 1730 |
| Код заказа | P/M/K/N/S | DC [мм] | APMX [мм] | CHW [мм] | LU [мм] | DCONMS [мм] | LF [мм] | DN [мм] | BD1_ [мм] | LB1_ [мм] | LB2_ [мм] | TCDCON |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1K344-0200-XC | ●●●●● | 2.00 | 4.5 | – | 9.00 | 6.00 | 50.00 | 1.9 | 1.9 | 9.0 | 12.5 | h6 |
| 1K344-0300-XC | ●●●●● | 3.00 | 7.0 | 0.1 | 11.00 | 6.00 | 50.00 | 2.9 | 2.9 | 11.0 | 13.7 | h6 |
| 1K344-0400-XC | ●●●●● | 4.00 | 9.0 | 0.1 | 13.50 | 6.00 | 54.00 | 3.8 | 3.8 | 13.5 | 15.4 | h6 |
| 1K344-0450-XC | ●●●●● | 4.50 | 10.0 | 0.1 | 15.00 | 6.00 | 54.00 | 4.3 | 4.3 | 15.0 | 16.5 | h6 |
| 1K344-0500-XC | ●●●●● | 5.00 | 11.0 | 0.1 | 16.50 | 6.00 | 54.00 | 4.8 | 4.8 | 16.5 | 17.5 | h6 |
| 1K344-0550-XC | ●●●●● | 5.50 | 12.0 | 0.1 | 18.50 | 6.00 | 57.00 | 5.3 | 5.3 | 18.5 | 19.1 | h6 |
| 1K344-0600-XD | ●●●●○ | 6.00 | 15.0 | 0.1 | 20.50 | 6.00 | 57.00 | 5.8 | 5.8 | 20.5 | – | h6 |
| 1K344-0650-XD | ●●●●○ | 6.50 | 15.0 | 0.1 | 22.00 | 8.00 | 63.00 | 6.2 | 6.2 | 22.0 | 23.5 | h6 |
| 1K344-0700-XD | ●●●●○ | 7.00 | 15.0 | 0.1 | 22.00 | 8.00 | 63.00 | 6.7 | 6.7 | 22.0 | 23.1 | h6 |
| 1K344-0800-XD | ●●●●○ | 8.00 | 19.5 | 0.2 | 26.70 | 8.00 | 63.00 | 7.7 | 7.7 | 26.7 | – | h6 |
| 1K344-0900-XD | ●●●●○ | 9.00 | 19.5 | 0.2 | 29.00 | 10.00 | 72.00 | 8.6 | 8.6 | 29.0 | 30.2 | h6 |
| 1K344-1000-XD | ●●●●○ | 10.00 | 23.0 | 0.2 | 31.50 | 10.00 | 72.00 | 9.6 | 9.6 | 31.5 | – | h6 |
| 1K344-1100-XD | ●●●●○ | 11.00 | 23.0 | 0.2 | 34.00 | 12.00 | 83.00 | 10.6 | 10.6 | 34.0 | 35.2 | h6 |
| 1K344-1200-XD | ●●●●○ | 12.00 | 27.0 | 0.2 | 37.50 | 12.00 | 83.00 | 11.5 | 11.5 | 37.5 | – | h6 |
| 1K344-1300-XD | ●●●●○ | 13.00 | 28.0 | 0.2 | 41.00 | 14.00 | 92.00 | 12.5 | 12.5 | 41.0 | 42.3 | h6 |
| 1K344-1400-XD | ●●●●○ | 14.00 | 30.0 | 0.2 | 42.00 | 14.00 | 92.00 | 13.4 | 13.4 | 42.0 | 42.5 | h6 |
| 1K344-1500-XD | ●●●●○ | 15.00 | 32.0 | 0.2 | 47.00 | 16.00 | 100.00 | 14.4 | 14.4 | 47.0 | 48.4 | h6 |
| 1K344-1600-XD | ●●●●○ | 16.00 | 36.0 | 0.2 | 48.80 | 16.00 | 100.00 | 15.4 | 15.4 | 48.8 | – | h6 |
| 1K344-1800-XD | ●●●●○ | 18.00 | 38.0 | 0.2 | 54.00 | 18.00 | 104.00 | 17.3 | 17.3 | 54.0 | 54.6 | h6 |
| 1K344-2000-XD | ●●●●○ | 20.00 | 41.0 | 0.3 | 56.00 | 20.00 | 111.00 | 19.2 | 19.2 | 56.0 | – | h6 |
| 1K344-2500-XD | ●●●●○ | 25.00 | 52.0 | 0.3 | 75.00 | 25.00 | 135.00 | 24.0 | 24.0 | 75.0 | 75.9 | h6 |
● = Первый выбор, ○ = Хороший выбор
