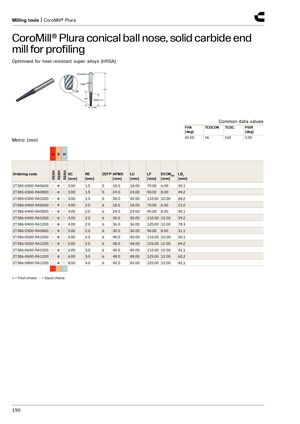

Фрезерный инструмент | CoroMill® Plura
CoroMill® Plura conical ball nose, концевая фреза из цельного твёрдого сплава для профилирования
Оптимизирована для жаропрочных суперсплавов (HRSA)
| Общие параметры | |||
|---|---|---|---|
| FHA [deg] | TCDCON | TCDC | PSIR [deg] |
| 42.00 | h6 | h10 | 3.00 |
Метрические (мм)
| Код заказа | DC [мм] | RE [мм] | ZEFP | APMX [мм] | LU [мм] | LF [мм] | DCONMS [мм] | LB1 [мм] |
|---|---|---|---|---|---|---|---|---|
| 2T385-0300-RA0600 | 3.00 | 1.5 | 5 | 18.0 | 18.00 | 70.00 | 6.00 | 30.1 |
| 2T385-0300-RA0800 | 3.00 | 1.5 | 5 | 24.0 | 24.00 | 90.00 | 8.00 | 49.2 |
| 2T385-0300-RA1000 | 3.00 | 1.5 | 5 | 30.0 | 30.00 | 110.00 | 10.00 | 68.2 |
| 2T386-0400-RA0600 | 4.00 | 2.0 | 6 | 18.0 | 18.00 | 70.00 | 6.00 | 21.0 |
| 2T386-0400-RA0800 | 4.00 | 2.0 | 6 | 24.0 | 24.00 | 90.00 | 8.00 | 40.1 |
| 2T386-0400-RA1000 | 4.00 | 2.0 | 6 | 30.0 | 30.00 | 110.00 | 10.00 | 59.2 |
| 2T386-0400-RA1200 | 4.00 | 2.0 | 6 | 36.0 | 36.00 | 125.00 | 12.00 | 78.3 |
| 2T386-0500-RA0800 | 5.00 | 2.5 | 6 | 30.0 | 30.00 | 90.00 | 8.00 | 31.1 |
| 2T386-0500-RA1000 | 5.00 | 2.5 | 6 | 40.0 | 40.00 | 110.00 | 10.00 | 50.1 |
| 2T386-0500-RA1200 | 5.00 | 2.5 | 6 | 48.0 | 48.00 | 125.00 | 12.00 | 69.2 |
| 2T386-0600-RA1000 | 6.00 | 3.0 | 6 | 40.0 | 40.00 | 110.00 | 10.00 | 41.1 |
| 2T386-0600-RA1200 | 6.00 | 3.0 | 6 | 48.0 | 48.00 | 125.00 | 12.00 | 60.2 |
| 2T386-0800-RA1200 | 8.00 | 4.0 | 6 | 42.0 | 42.00 | 125.00 | 12.00 | 42.1 |
● = первый выбор ○ = хороший выбор
